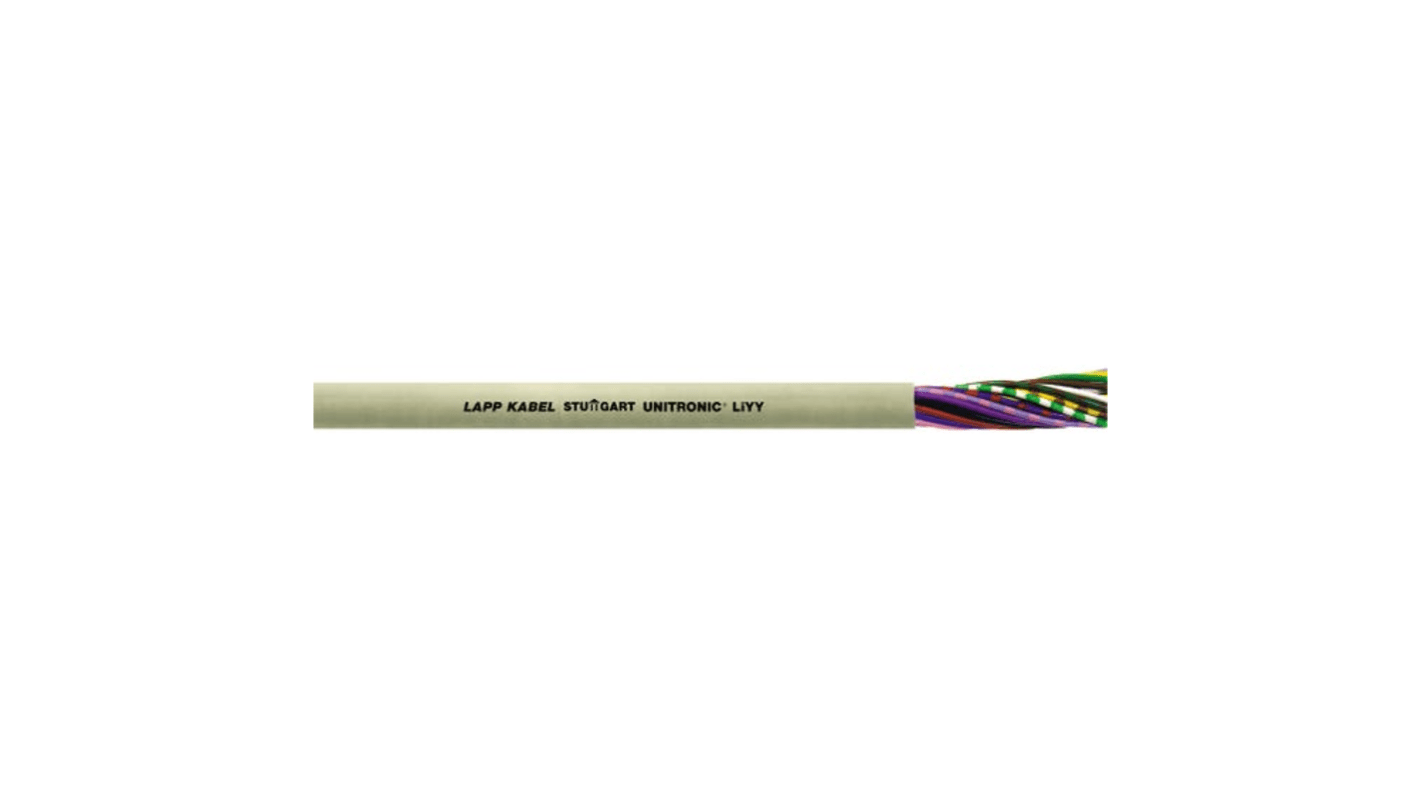

Lapp LiYY Data Cable, 4 Cores, 0.34 mm² CSA 22, Unscreened, 100 m, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 276-0972
- Mfr. Part No.:
- 0028404
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£56.65
(exc. VAT)
£67.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 17 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £56.65 | £0.567 |
*price indicative
- RS Stock No.:
- 276-0972
- Mfr. Part No.:
- 0028404
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | LiYY | |
| Product Type | Data Cable | |
| Sub Type | Low-Frequency Data Cable | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.34 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 100m | |
| Outside Diameter | 4.8mm | |
| Voltage | 4000V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | CE | |
| Maximum Operating Temperature | 80°C | |
| Fire Behaviour | Flame Retardant | |
| American Wire Gauge | 22 | |
| Core Strands | 4 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series LiYY | ||
Product Type Data Cable | ||
Sub Type Low-Frequency Data Cable | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 100m | ||
Outside Diameter 4.8mm | ||
Voltage 4000V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals CE | ||
Maximum Operating Temperature 80°C | ||
Fire Behaviour Flame Retardant | ||
American Wire Gauge 22 | ||
Core Strands 4 | ||
- COO (Country of Origin):
- RO
The Lapp Data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Flammability retardant
Minimum bending radius
EN 13501 6 and EN 50575 certified
Based on standard VDE 0812 and EN 50288 7
