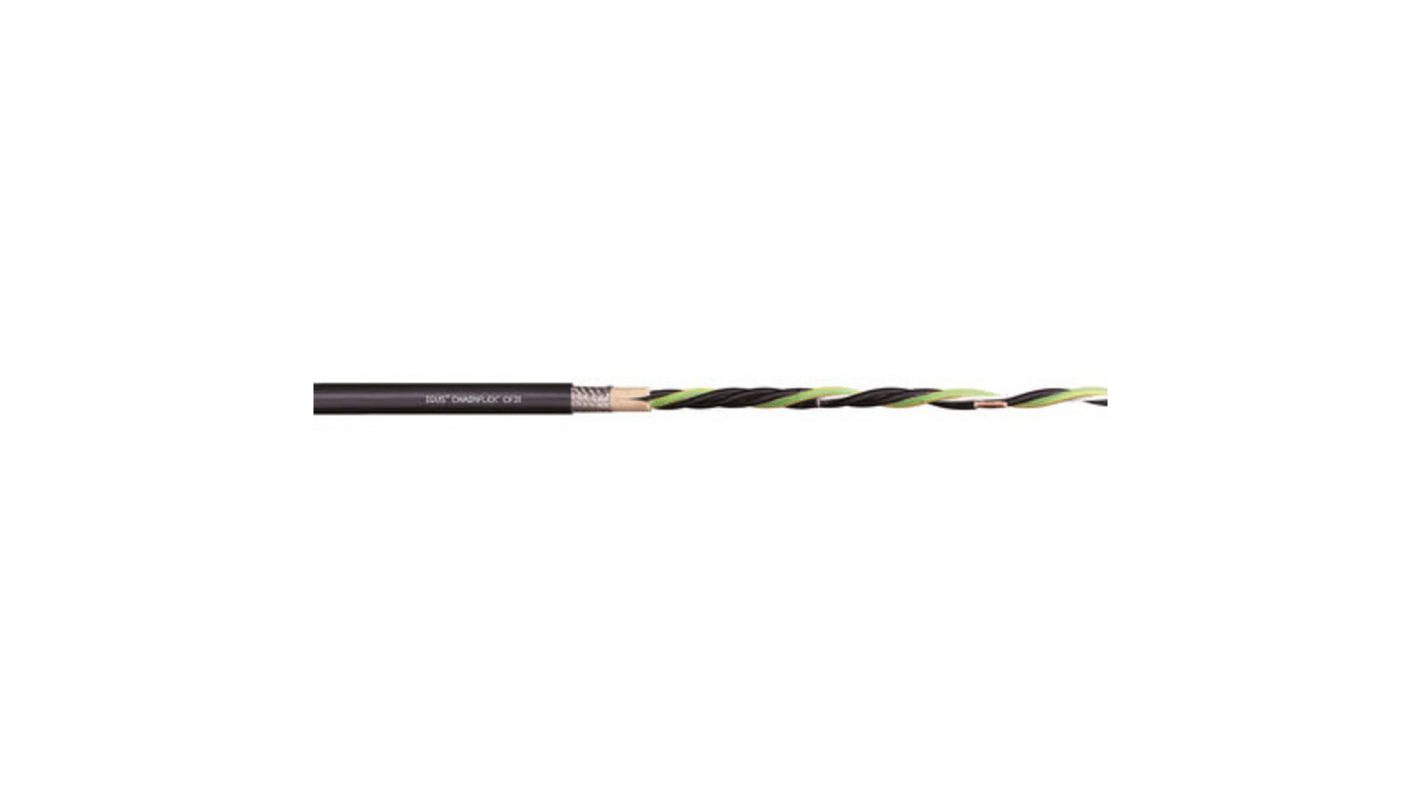

Igus chainflex CF31 Power Cable, 4 Cores, 4 mm², Screened, 20m, Black PVC Sheath, 12 AWG
- RS Stock No.:
- 252-5539
- Mfr. Part No.:
- CF31.40.04
- Brand:
- Igus
1 In stock - FREE next working day delivery available
Added
Price 1 Reel of 20 Metre(s)
£356.66
(exc. VAT)
£427.99
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £356.66 | £17.833 |
| *price indicative | ||
- RS Stock No.:
- 252-5539
- Mfr. Part No.:
- CF31.40.04
- Brand:
- Igus
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
600 / 1000 V CF31 motor cables
Igus CF31 Chainflex motor cable for heavy duty applications. Chainflex cables have been designed for durability and to reduce downtime due to cable failure.
Features and Benefits
Ultra-flexible motor cable for cable chains with shield
For particularly long strokes (over 100 m) and short strokes
Net shields have been optimized for maximum EMC protection
Uses oil-resistant PVC to form high-pressure extrusions that bite between gaps
For particularly long strokes (over 100 m) and short strokes
Net shields have been optimized for maximum EMC protection
Uses oil-resistant PVC to form high-pressure extrusions that bite between gaps
Standards
UL, CSA
Warning
Do not use for nuclear-related applications.
Specifications
Attribute | Value |
|---|---|
| Series | chainflex CF31 |
| Number of Cores | 4 |
| Cross Sectional Area | 4 mm² |
| Screened/Unscreened | Screened |
| Length | 20m |
| Sheath Colour | Black |
| Cable Shape | Multicore |
| American Wire Gauge | 12 AWG |
| Outer Diameter | 14mm |
| Sheath Material | PVC |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -5°C |
| Fire Behaviour | Flame Retardant |
| Current Rating | 41 A |
| Insulation Material | TPE |
| Maximum Operating Temperature | +70°C |
| Screen Type | Tinned Copper Braid |
| Earth Cable | Yes |
| Conductor Resistance | 4.95 Ω/km |
| Armoured | No |
| Voltage Rating | 1 kV |
| Conductor Material | Bare Copper |
| Minimum Bend Radius | 7.5 x D |
