- RS Stock No.:
- 252-5501
- Mfr. Part No.:
- CF30.25.04
- Brand:
- Igus
2 In stock - FREE next working day delivery available
Added
Price 1 Reel of 20 Metre(s)
£168.78
(exc. VAT)
£202.54
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £168.78 | £8.439 |
*price indicative |
- RS Stock No.:
- 252-5501
- Mfr. Part No.:
- CF30.25.04
- Brand:
- Igus
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

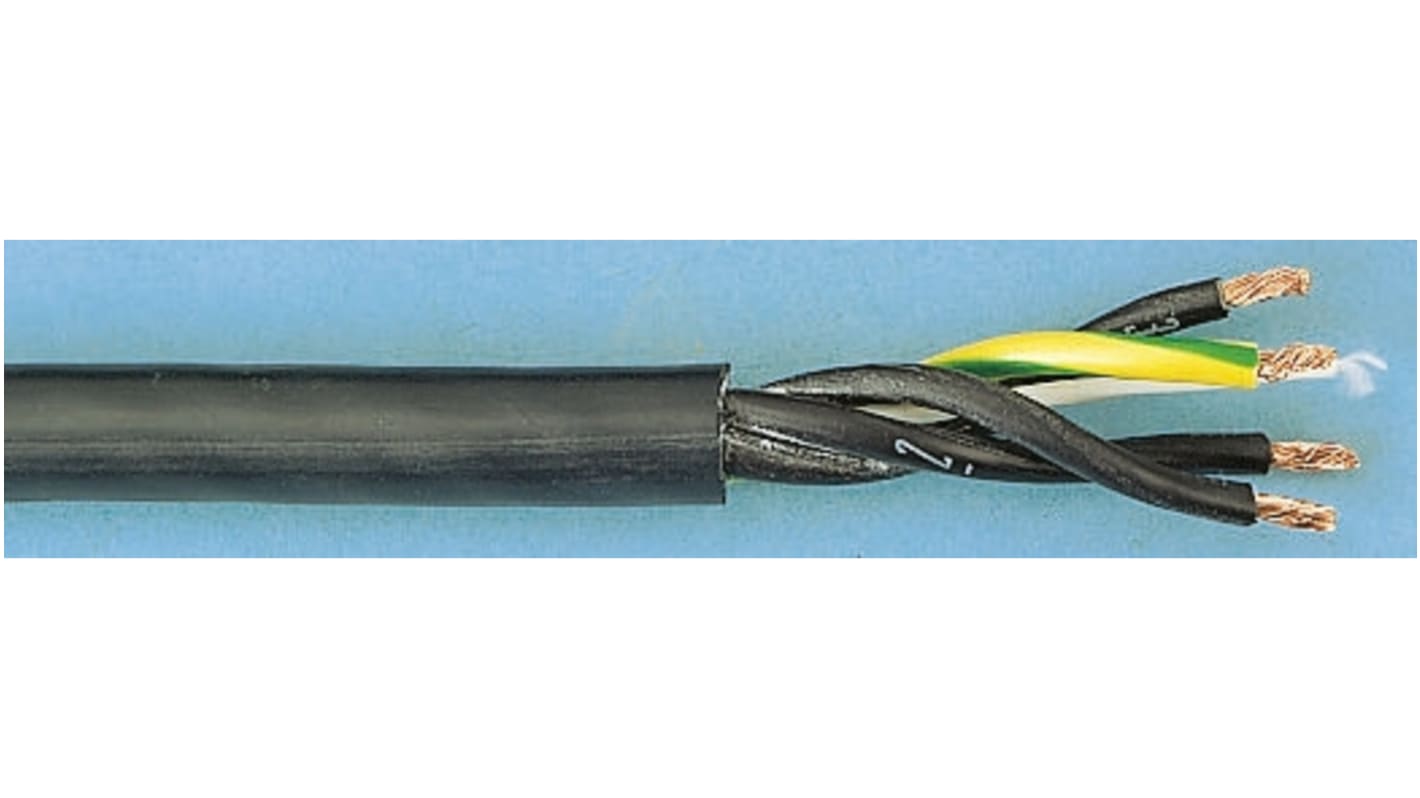

600 / 1000 V CF30 motor cables
Igus CF30 Chainflex motor cable for heavy duty applications. Chainflex cables have been designed for durability and to reduce downtime due to cable failure.
Features and Benefits
Motor cables for unshielded cable chains
Used particularly for long strokes (over 100 m) and short strokes
Strong bend-resistant conductor
Uses oil-resistant PVC due to the high-pressure formation bite between gaps
Used particularly for long strokes (over 100 m) and short strokes
Strong bend-resistant conductor
Uses oil-resistant PVC due to the high-pressure formation bite between gaps
Standards
CE
Warning
Do not use for nuclear-related applications.
Specifications
Attribute | Value |
---|---|
Series | chainflex CF30 |
Number of Cores | 4 |
Cross Sectional Area | 2.5 mm² |
Screened/Unscreened | Unscreened |
Length | 20m |
Sheath Colour | Black |
Cable Shape | Multicore |
American Wire Gauge | 14 AWG |
Outer Diameter | 10.5mm |
Sheath Material | PVC |
Conductor Material | Bare Copper |
Minimum Bend Radius | 7.5 x D |
Armoured | No |
Maximum Operating Temperature | +70°C |
Screen Type | Unscreened |
Voltage Rating | 1 kV |
Earth Cable | Yes |
Fire Behaviour | Flame Retardant |
Current Rating | 30 A |
Insulation Material | TPE |
Conductor Resistance | 7.98 Ω/km |
Oil Resistant | Yes |
Minimum Operating Temperature | -5°C |
