AXINDUS CAELIFLEX Control Cable, 3 Cores, 1 mm², Unscreened, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 135-9265
- Mfr. Part No.:
- 1030100
- Brand:
- AXINDUS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 135-9265
- Mfr. Part No.:
- 1030100
- Brand:
- AXINDUS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Series | CAELIFLEX | |
| Number of Cores | 3 | |
| Cross Sectional Area | 1 mm² | |
| American Wire Gauge | 17 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Unscreened | |
| Screened/Unscreened | Unscreened | |
| Outer Diameter | 5.9mm | |
| Minimum Bend Radius | 15 x 5.9 (Moved) mm, 7 x 5.9 (Fixed) mm | |
| Voltage Rating | 300/500 V | |
| Standards Met | Euroclass Eca, IEC 60228, IEC 60332-1 | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Flame Retardant | |
| Conductor Resistance | 20 MΩ | |
| Minimum Operating Temperature | -40°C | |
| Cable Shape | Multicore | |
| Insulation Material | PVC | |
Select all | ||
|---|---|---|
Brand AXINDUS | ||
Series CAELIFLEX | ||
Number of Cores 3 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Outer Diameter 5.9mm | ||
Minimum Bend Radius 15 x 5.9 (Moved) mm, 7 x 5.9 (Fixed) mm | ||
Voltage Rating 300/500 V | ||
Standards Met Euroclass Eca, IEC 60228, IEC 60332-1 | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Conductor Resistance 20 MΩ | ||
Minimum Operating Temperature -40°C | ||
Cable Shape Multicore | ||
Insulation Material PVC | ||
- COO (Country of Origin):
- TR

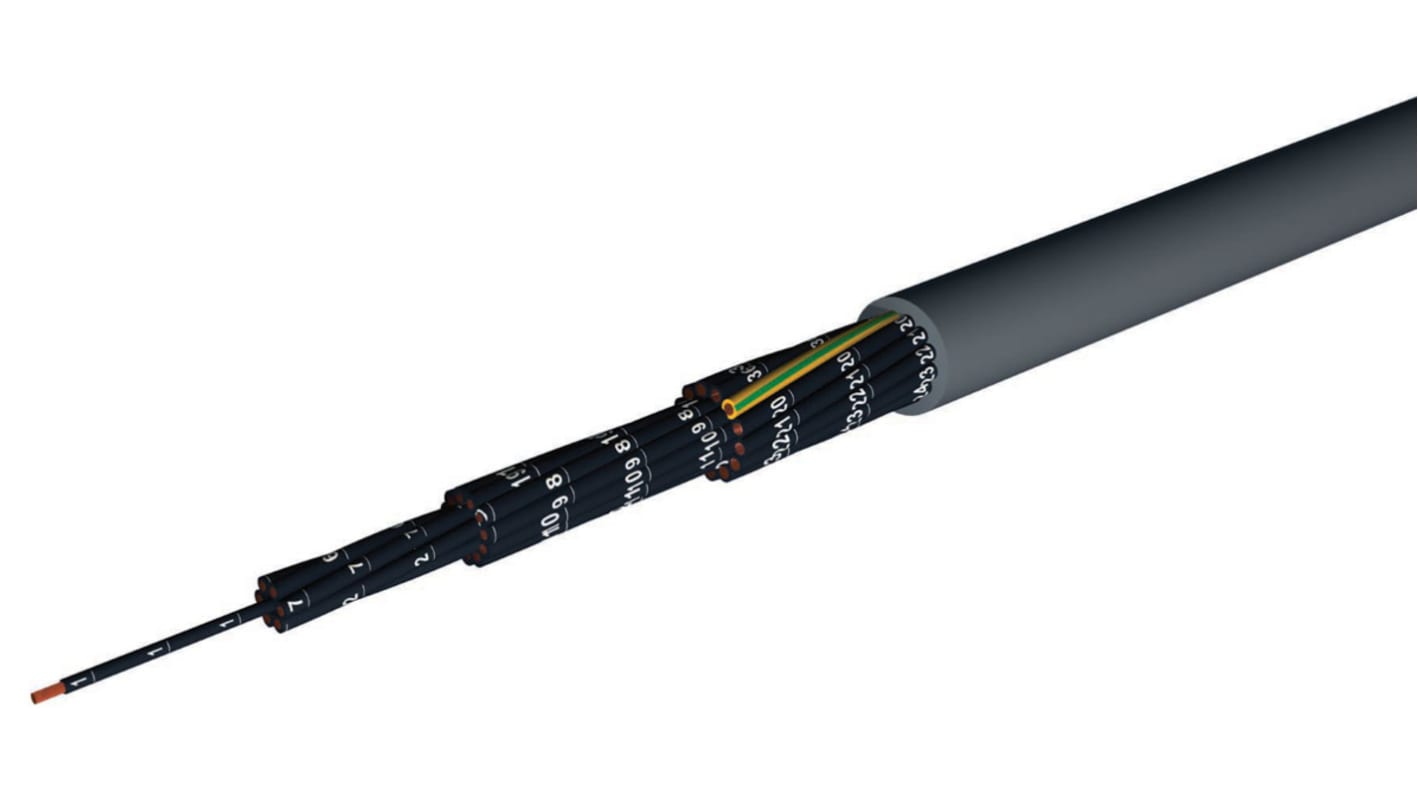

Unshielded flexible control cables - CAELIFLEX series
CAELIFLEX® cables are mainly used for wiring machine tools and production lines. These cables are flexible, and are designed for fixed or partially mobile interior installation.
Features and Benefits
• Unshielded flexible control cables – black numbered + G / Y
• Assembly: spiral with concentric layers and talc (silicone free: compatible with paint spray booths)
• Colour-coded according to DIN VDE 0293
• Assembly: spiral with concentric layers and talc (silicone free: compatible with paint spray booths)
• Colour-coded according to DIN VDE 0293
