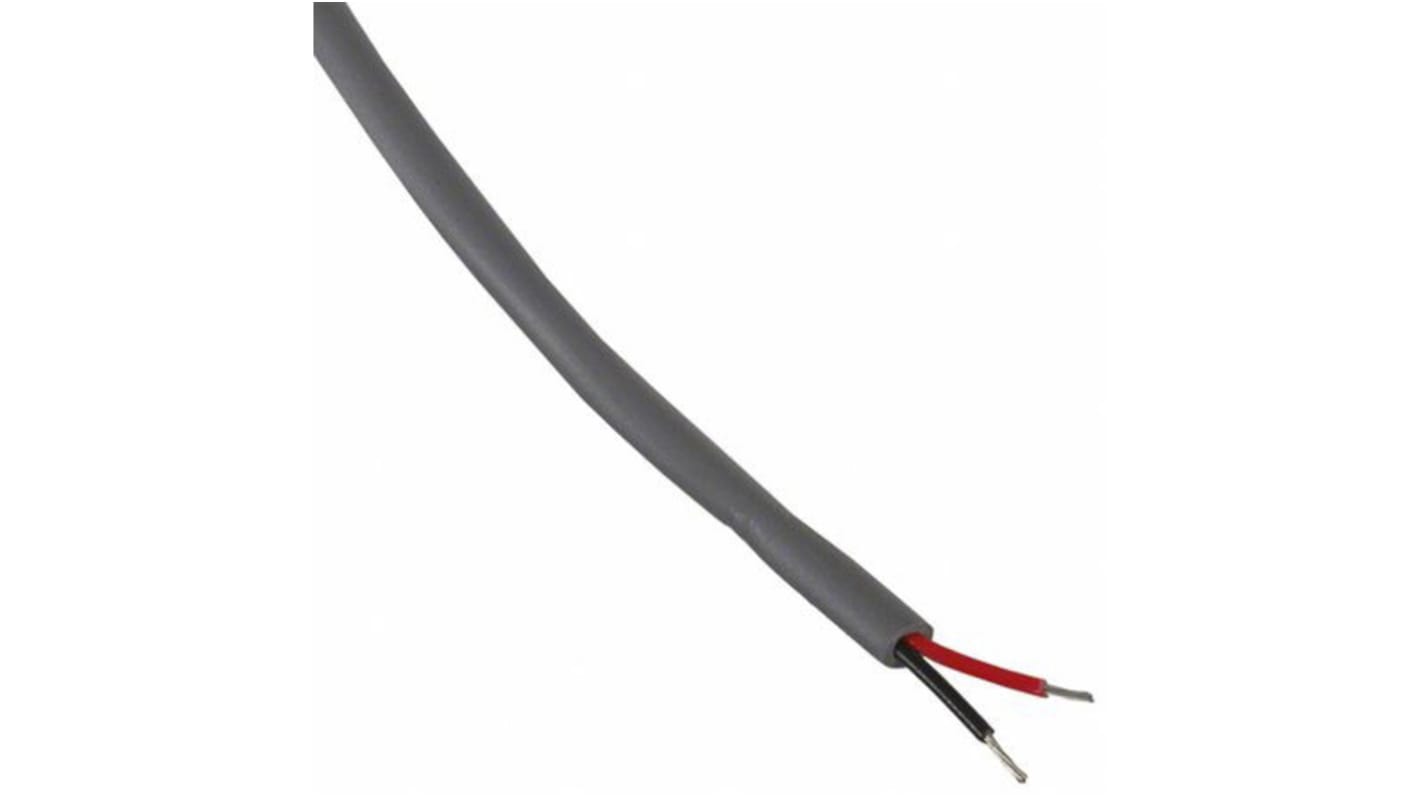

Alpha Wire Xtra-Guard 1 Multicore Industrial Cable, 2 Cores, 0.28 mm², Unscreened, 30m, Grey PVC Sheath, 24 AWG
- RS Stock No.:
- 111-5383
- Mfr. Part No.:
- 5012CB2 SL033
- Brand:
- Alpha Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£90.96
(exc. VAT)
£109.15
(inc. VAT)
- RS Stock No.:
- 111-5383
- Mfr. Part No.:
- 5012CB2 SL033
- Brand:
- Alpha Wire
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Xtra-Guard 1 | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.28 mm² | |
| American Wire Gauge | 24 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Grey | |
| Screen Type | Unscreened | |
| Screened/Unscreened | Unscreened | |
| Length | 30m | |
| Minimum Bend Radius | 10 x Diameter | |
| Outer Diameter | 3.96mm | |
| Voltage Rating | 300 V | |
| Standards Met | CE, CSA, UL | |
| Maximum Operating Temperature | +80°C | |
| Drain Wire | No | |
| Priced to Clear | Yes | |
| Core Strands | 7/0.20 mm | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -30°C | |
| Conductor Resistance | 26 Ω/1000ft | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Xtra-Guard 1 | ||
Number of Cores 2 | ||
Cross Sectional Area 0.28 mm² | ||
American Wire Gauge 24 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Length 30m | ||
Minimum Bend Radius 10 x Diameter | ||
Outer Diameter 3.96mm | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +80°C | ||
Drain Wire No | ||
Priced to Clear Yes | ||
Core Strands 7/0.20 mm | ||
Insulation Material PVC | ||
Minimum Operating Temperature -30°C | ||
Conductor Resistance 26 Ω/1000ft | ||
- COO (Country of Origin):
- US
Xtra Guard 1 - Unshielded
The Alpha Wire Xtra Guard 1 - Unshielded offers a premium semi-rigid PVC insulated cable with uses in indoor/outdoor scenarios. The stranded tin copper conductor offers great resistance to corrosion from oxidation, and typically have a long shelf life vs.the bare equivalent.
Features and Benefits:
General purpose electronic cable for internal or external wiring of OEM equipment
Unsurpassed flame and moisture resistance
Fast, easy stripping of insulation and jacket
Fully colour-coded, tinned copper conductors
Premium grade PVC insulation and jacket
Insulation thickness 0.25mm
Flame test: UL VW-1
Applications:
High technology applications in controlled environments
Medical electronics
Point of sale equipment
Computer peripherals
Industrial process control
Note
Xtra Guard™ is a registered trademark of Alpha Wire
Approvals
UL, CSA
Approvals
UL2464; CSA AWM; UL VW-1 (Flame test)
