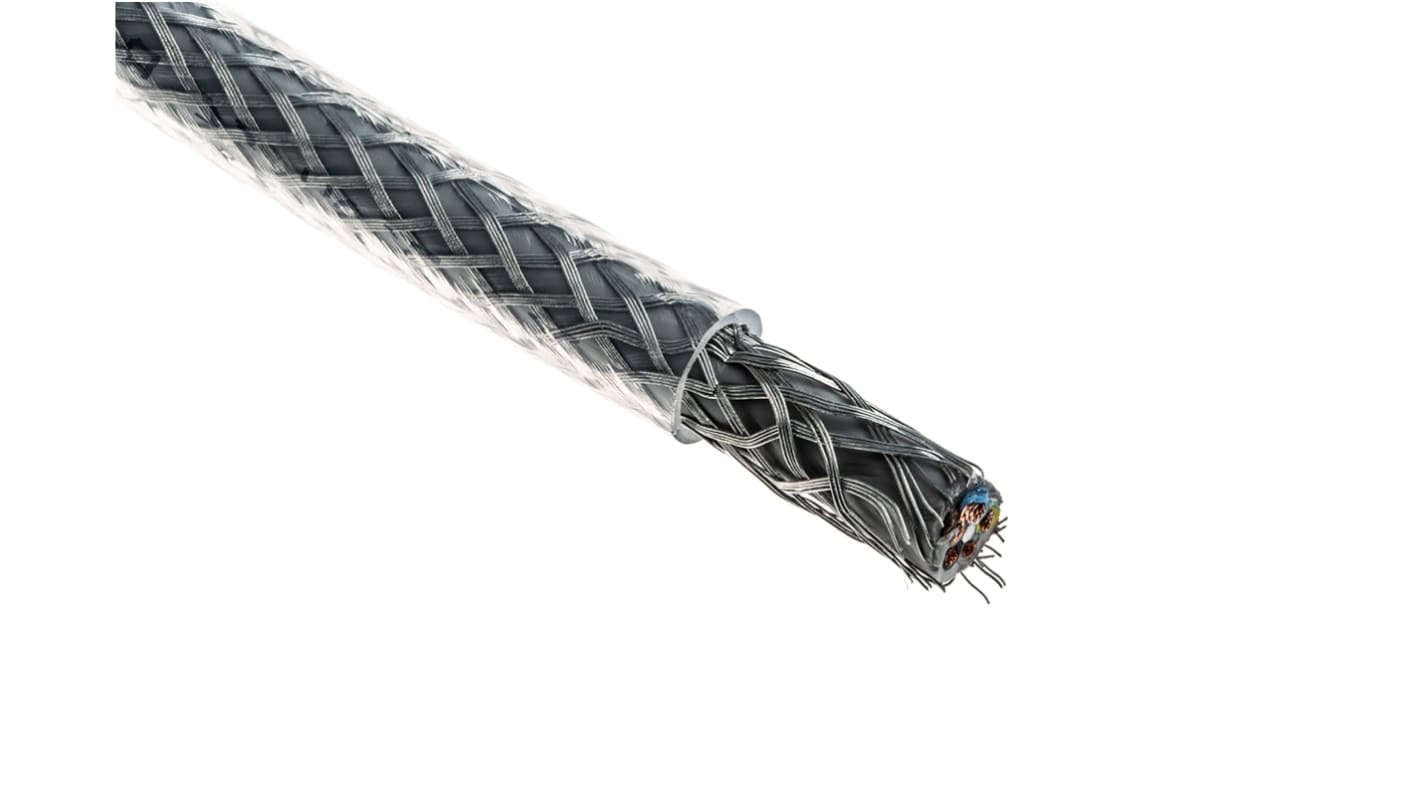

RS PRO Control Cable, 5 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath, 17
- RS Stock No.:
- 522-709
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£118.25
(exc. VAT)
£141.90
(inc. VAT)
- RS Stock No.:
- 522-709
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 5 | |
| Cross Sectional Area | 1 mm² | |
| American Wire Gauge | 17 | |
| Conductor Material | Bare Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Transparent | |
| Control Cable Type | SY | |
| Screened/Unscreened | Screened | |
| Screen Type | Galvanised Steel | |
| Length | 50m | |
| Outer Diameter | 11.02mm | |
| Minimum Bend Radius | 8 x Diameter | |
| Voltage Rating | 300 V | |
| Current Rating | 10 A | |
| Maximum Operating Temperature | +80°C | |
| Earth Cable | No | |
| Bedding Material | PVC | |
| Insulation Material | PVC | |
| Filler Material | PVC | |
| Minimum Operating Temperature | -20°C | |
| Core Strands | 32/0.2 mm | |
| Conductor Resistance | 21.1 Ω/km | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 5 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 | ||
Conductor Material Bare Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Transparent | ||
Control Cable Type SY | ||
Screened/Unscreened Screened | ||
Screen Type Galvanised Steel | ||
Length 50m | ||
Outer Diameter 11.02mm | ||
Minimum Bend Radius 8 x Diameter | ||
Voltage Rating 300 V | ||
Current Rating 10 A | ||
Maximum Operating Temperature +80°C | ||
Earth Cable No | ||
Bedding Material PVC | ||
Insulation Material PVC | ||
Filler Material PVC | ||
Minimum Operating Temperature -20°C | ||
Core Strands 32/0.2 mm | ||
Conductor Resistance 21.1 Ω/km | ||
- COO (Country of Origin):
- CN
