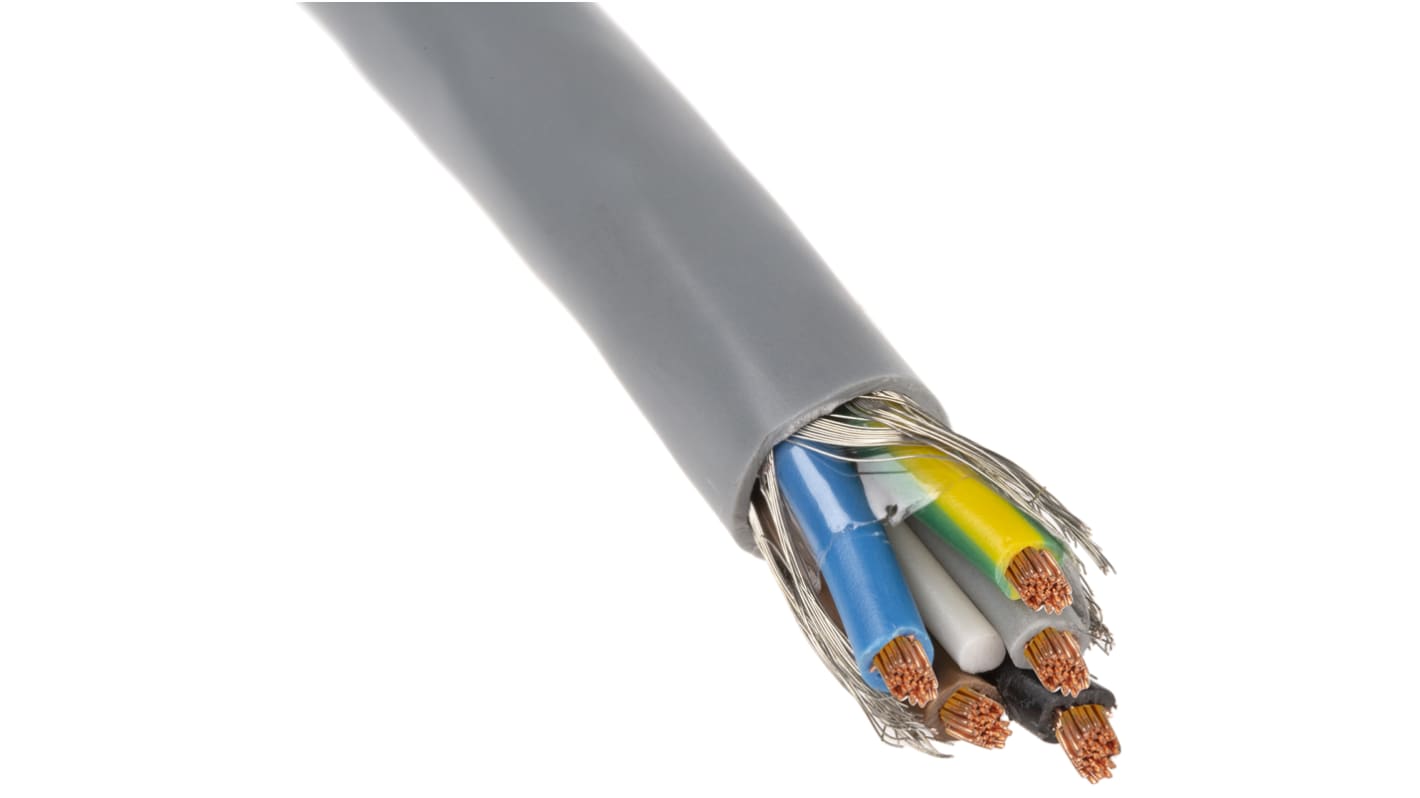

RS PRO Control Cable, 5 Cores, 2.5 mm², CY, Screened, 50m, Grey PVC Sheath, 13 AWG
- RS Stock No.:
- 522-557
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 522-557
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 5 | |
| Cross Sectional Area | 2.5 mm² | |
| American Wire Gauge | 13 AWG | |
| Conductor Material | Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Control Cable Type | CY | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Screened | |
| Screen Type | Tinned Copper Braid | |
| Outer Diameter | 9.8mm | |
| Length | 50m | |
| Minimum Bend Radius | 8 x Diameter | |
| Voltage Rating | 300/500 V | |
| Current Rating | 15 A | |
| Maximum Operating Temperature | +80°C | |
| Bedding Material | Mylar | |
| Core Strands | 50/0.25 mm | |
| Conductor Resistance | 8.2 Ω/km | |
| Minimum Operating Temperature | -20°C | |
| Insulation Material | PVC | |
| Earth Cable | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 5 | ||
Cross Sectional Area 2.5 mm² | ||
American Wire Gauge 13 AWG | ||
Conductor Material Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Control Cable Type CY | ||
Sheath Colour Grey | ||
Screened/Unscreened Screened | ||
Screen Type Tinned Copper Braid | ||
Outer Diameter 9.8mm | ||
Length 50m | ||
Minimum Bend Radius 8 x Diameter | ||
Voltage Rating 300/500 V | ||
Current Rating 15 A | ||
Maximum Operating Temperature +80°C | ||
Bedding Material Mylar | ||
Core Strands 50/0.25 mm | ||
Conductor Resistance 8.2 Ω/km | ||
Minimum Operating Temperature -20°C | ||
Insulation Material PVC | ||
Earth Cable No | ||
- COO (Country of Origin):
- CN
