Lapp ÖLFLEX CLASSIC FD Control Cable, 3 Cores, 1 mm² CSA 18 AWG, Unscreened, 100 m, Grey Nylon Sheath
- RS Stock No.:
- 433-310
- Mfr. Part No.:
- 0026131
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£211.94
(exc. VAT)
£254.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £211.94 | £2.119 |
*price indicative
- RS Stock No.:
- 433-310
- Mfr. Part No.:
- 0026131
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Control Cable | |
| Series | ÖLFLEX CLASSIC FD | |
| Number of Cores | 3 | |
| Cross Sectional Area | 1 mm² | |
| Conductor Material | Copper Tin | |
| Jacket Material | Nylon | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 100m | |
| Outside Diameter | 6.6 mm | |
| Voltage | 30 V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | VDE | |
| Fire Behaviour | UL 94 V-2 | |
| American Wire Gauge | 18AWG | |
| Core Strands | 3 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Control Cable | ||
Series ÖLFLEX CLASSIC FD | ||
Number of Cores 3 | ||
Cross Sectional Area 1 mm² | ||
Conductor Material Copper Tin | ||
Jacket Material Nylon | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 100m | ||
Outside Diameter 6.6 mm | ||
Voltage 30 V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals VDE | ||
Fire Behaviour UL 94 V-2 | ||
American Wire Gauge 18AWG | ||
Core Strands 3 | ||
- COO (Country of Origin):
- DE

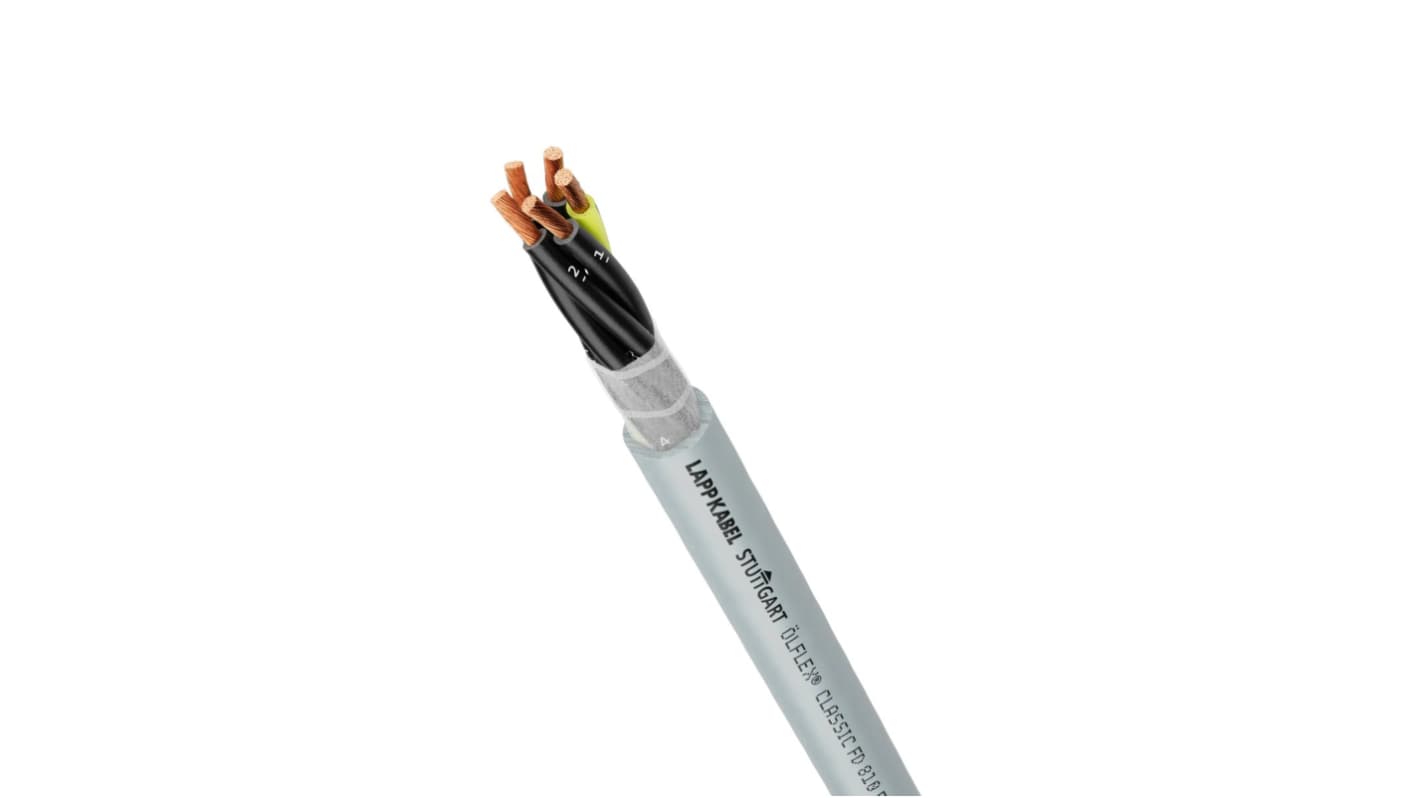

The Lapp Cable is a highly flexible power and control cable with a PVC sheath, suitable for flexible use and fixed installation under normal mechanical load conditions. It can be used in dry, damp, or wet areas. If used outdoors, the indicated temperature range must be observed and UV protection is required.
Increased resistant to oils and at room temperature largely resistant to acids and alkalis
Maximum tensile load is 15 N/mm² of conductor cross section
Outer sheath made of PVC compound
