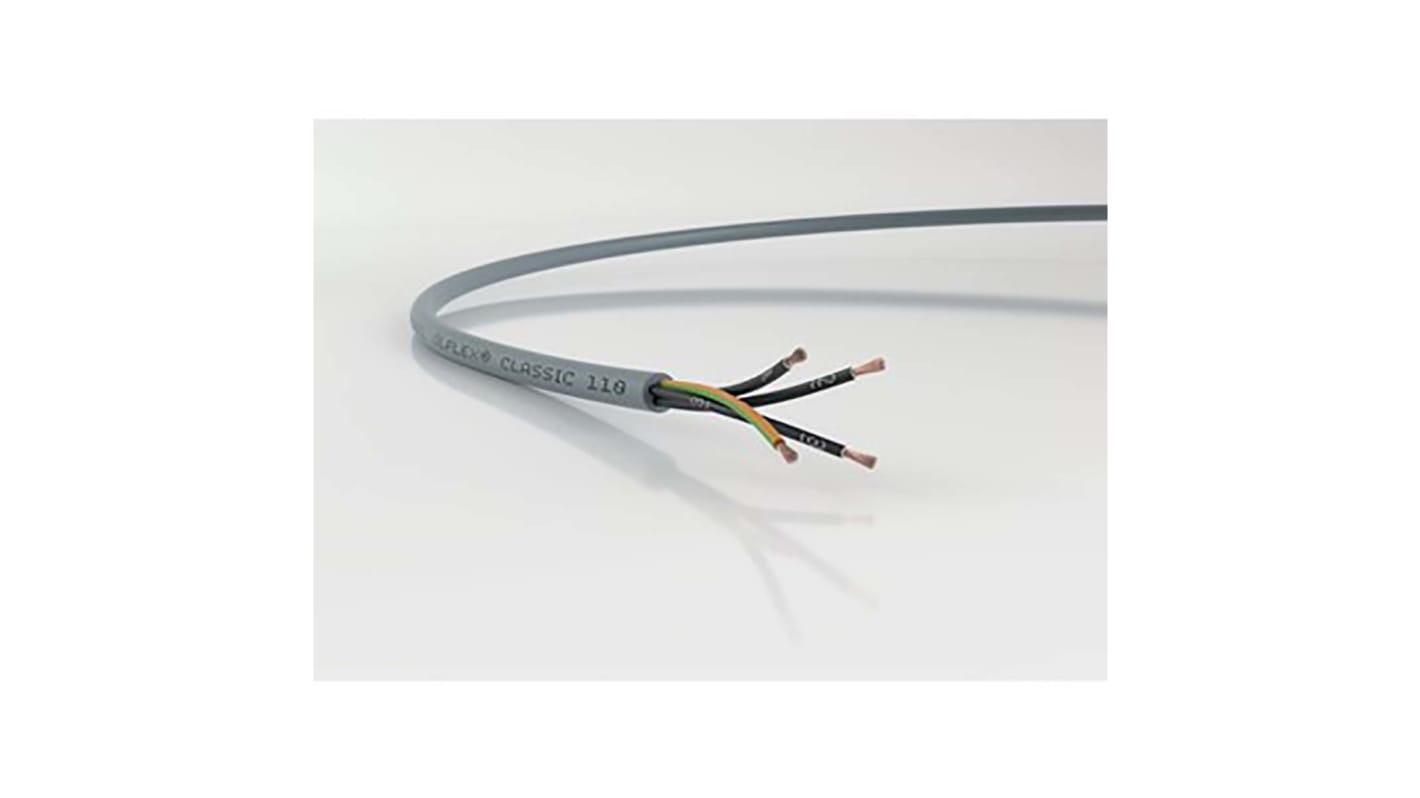

Lapp ÖLFLEX CLASSIC 110 Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 141-126
- Mfr. Part No.:
- 1119105
- Brand:
- Lapp
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Reel of 50 Metre(s)
£78.40
(exc. VAT)
£94.08
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £78.40 | £1.568 |
| *price indicative | ||
- RS Stock No.:
- 141-126
- Mfr. Part No.:
- 1119105
- Brand:
- Lapp
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
LAPP Control Cable, 5 Cores, 100m Length - ÖLFLEX Series - 1119105
Connect sensors to your industrial equipment with this control cable from LAPP. The internal conductors are made of highly conductive compact to ensure a stable and reliable connection. Its outer sheath and insulation are made of PVC, which protects against impact, abrasion and chemicals to give you long-lasting performance in tough environments. An operating temperature range of -40°C to +80°C means you can rely on this cable for safe use with demanding machinery.
Features & Benefits
• Cable length of 100m can easily be cut down to suit your application
• Minimum bending radius of 15 times the cable diameter for optimal flexibility
• Minimum bending radius of 15 times the cable diameter for optimal flexibility
Applications
• Plant engineering
• Heating and air-conditioning systems
• Heating and air-conditioning systems
Will this cable fit in small enclosures?
This cable has a compact outer diameter of 6.7mm, so it can flex to fit into setups with limited space.
Standards
VDE 0295, Part 5
Specifications
Attribute | Value |
|---|---|
| Series | ÖLFLEX CLASSIC 110 |
| Number of Cores | 5 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Control Cable Type | YY |
| Sheath Colour | Grey |
| American Wire Gauge | 18 AWG |
| CPR Certification | Eca |
| Outer Diameter | 6.7mm |
| Sheath Material | PVC |
| Minimum Operating Temperature | -40°C |
| Oil Resistant | Yes |
| Earth Cable | Yes |
| Voltage Rating | 300/500 V |
| Core Strands | 24/0.2 mm |
| Maximum Operating Temperature | +80°C |
| Filler Material | Non-Wicking Filler |
| Current Rating | 12 A |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Conductor Resistance | 26 Ω/km |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D |
