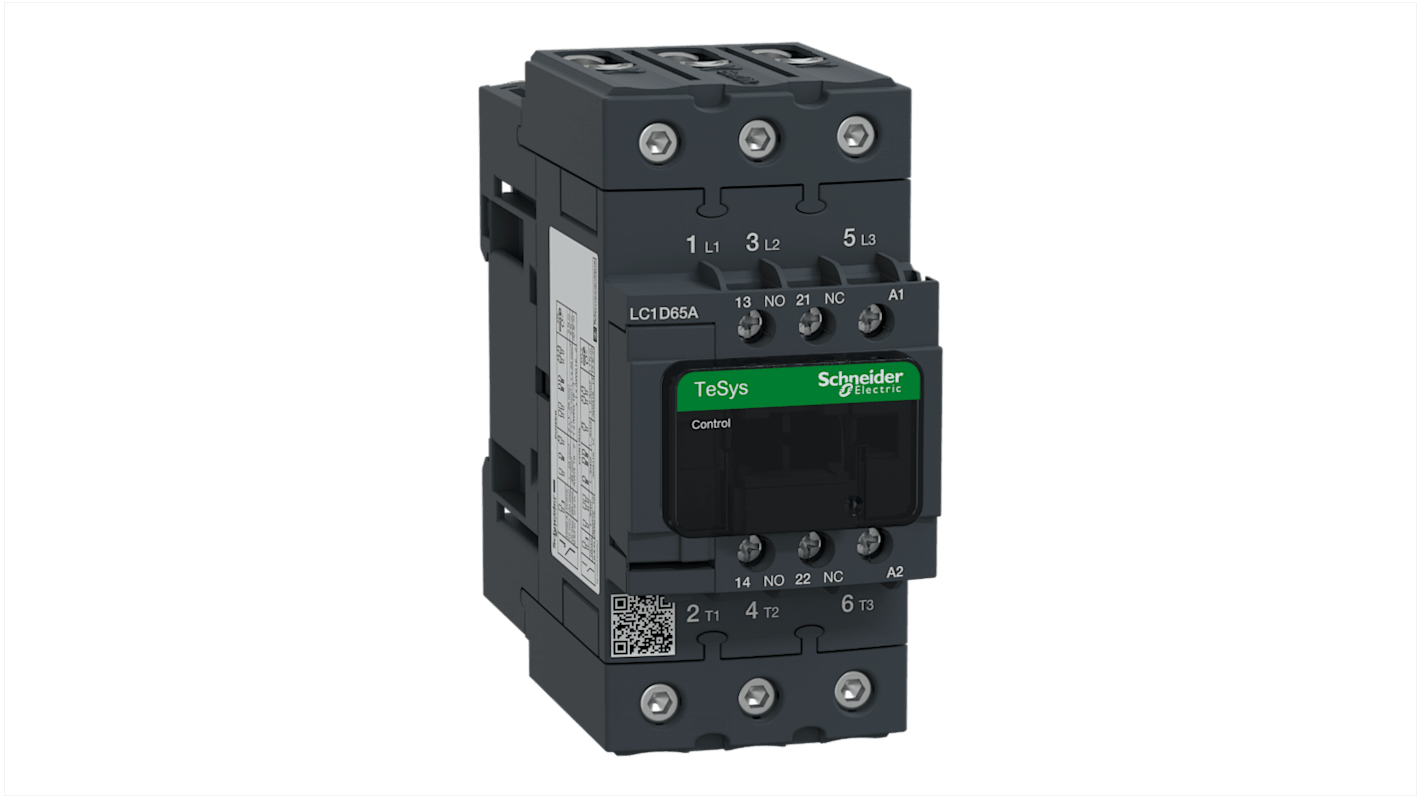

Schneider Electric TeSyS D Contactor, 120V ac Coil, 3-Pole, 65 A, 30 kW, 3 NO, 600V ac

RS Stock No.:: 818-8432
Mfr. Part No.:: LC1D65AG7
Brand:: Schneider Electric

Schneider Electric TeSyS D Contactor, 120V ac Coil, 3-Pole, 65 A, 30 kW, 3 NO, 600V ac

Subtotal (1 unit)*

£256.75

(exc. VAT)

£308.10

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 1 unit(s) shipping from 23 April 2026
Plus 1 unit(s) shipping from 28 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£256.75

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 818-8432
Mfr. Part No.:: LC1D65AG7
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Coil Voltage	120V ac
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	600V ac
	Contact Current	65A
	Series	TeSyS D
	Power Rating	30kW
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NO/1 NC
	Number of Auxiliary Contacts	2
	Terminal Type	Screw
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, CSA C22.2 No 60947-4-1, UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
	Length	122mm
	Width	55mm
	Depth	120mm
	Better World Product	Yes
	Pole and Throw Configuration	3P

	Select all
	Brand Schneider Electric
	Coil Voltage 120V ac
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 600V ac
	Contact Current 65A
	Series TeSyS D
	Power Rating 30kW
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NO/1 NC
	Number of Auxiliary Contacts 2
	Terminal Type Screw
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Standards/Approvals CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, CSA C22.2 No 60947-4-1, UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
	Length 122mm
	Width 55mm
	Depth 120mm
	Better World Product Yes
	Pole and Throw Configuration 3P

Non Compliant

COO (Country of Origin):: ID

Schneider Electric LC1D Series Contactor, 65A Contact Current Rating, 3 Poles - LC1D65AG7

This contactor from Schneider Electric belongs to the TeSys D series and is engineered for effective motor control and load management. With a compact structure measuring 122mm x 55mm x 120mm, it is designed to fit seamlessly onto DIN rails, offering a reliable solution for various electrical applications.

Features & Benefits

• Utilises 120V AC control voltage for seamless operation

• Rated at 65A for efficient motor applications

• Supports a contact voltage of up to 690V AC

• Designed for motor control, enhancing operational efficiency

• Features an auxiliary contact configuration of 1NO + 1NC

• Capable of withstanding temperatures from -40°C to +70°C

Applications

• Used for reliable motor start and stop operations

• Ideal for integrating into load control systems

• Effectively manages resistive and inductive loads

• Suitable for mounting on DIN rails in control panels

What are the rated operational currents for this device?

It effectively handles a rated operational current of 80A at voltages up to 440V AC for AC-1 applications, and 65A for AC-3 and AC-3e applications at similar voltage levels, ensuring robust performance across various loads.

How does the device ensure safety during operation?

The contactor features a rated insulation voltage of 600V, alongside numerous certifications, which include compliance with IEC standards and BS certification to assure operational safety and reliability in demanding environments.

What type of protection does this contactor provide against environmental factors?

It has an IP20 rating for the front face, making it suitable for indoor applications, and is built to withstand temperatures from -40°C to +70°C, ensuring longevity and performance in various climatic conditions.
