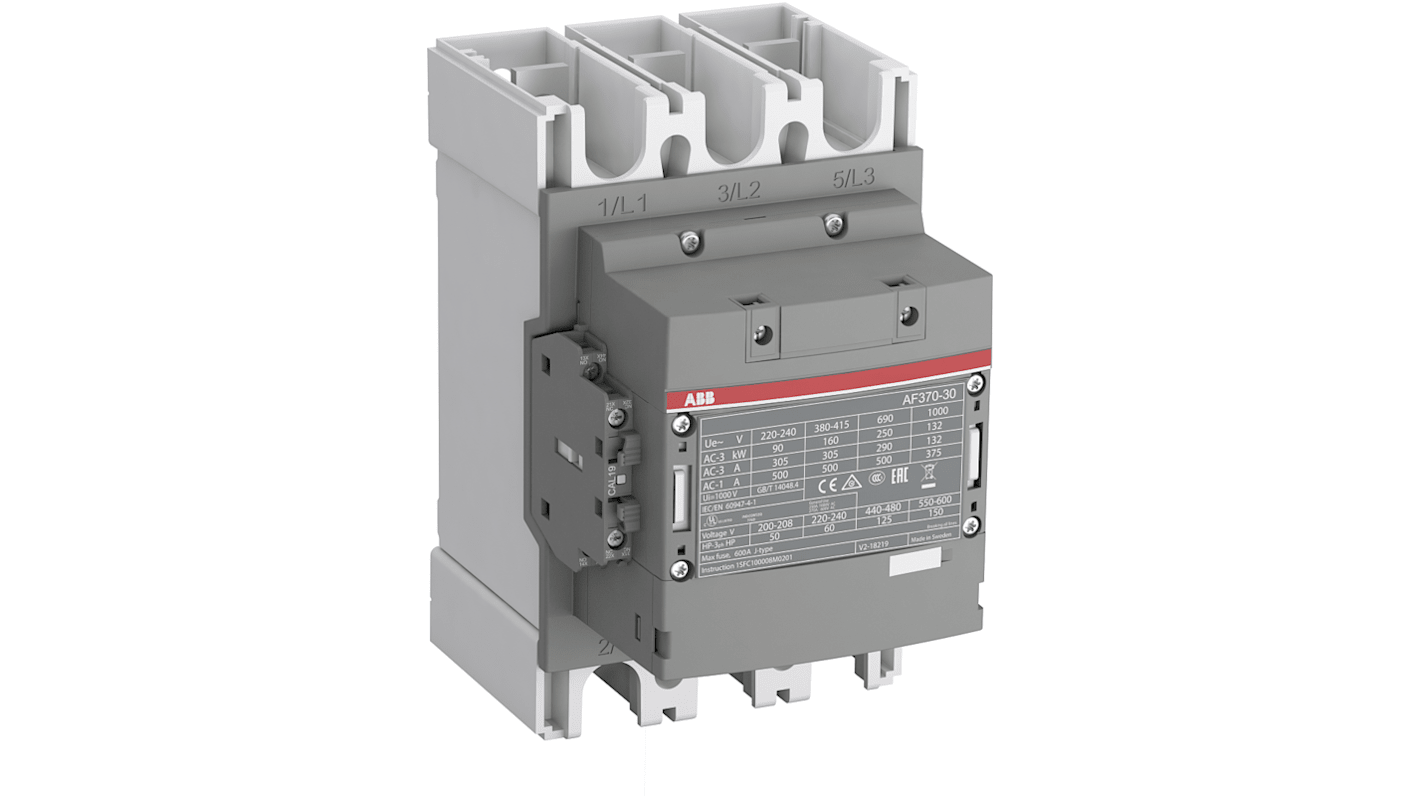

ABB AF370 Contactor, 24V ac/dc Coil, 3-Pole, 600 A, 200 kW 60V, 3 NO, 690V ac
- RS Stock No.:
- 800-7289
- Mfr. Part No.:
- 1SFL607002R1111 AF370-30-11-11
- Brand:
- ABB
Subtotal (1 unit)*
£1,583.52
(exc. VAT)
£1,900.22
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,583.52 |
*price indicative
- RS Stock No.:
- 800-7289
- Mfr. Part No.:
- 1SFL607002R1111 AF370-30-11-11
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 24V ac/dc | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 600A | |
| Power Rating | 200kW | |
| Series | AF370 | |
| Function | Motor Control | |
| Mount Type | Screw | |
| Normal State Configuration | 3 NO | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Bars | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | Motor Control | |
| Operational Current Ie | 305A | |
| Control Circuit Voltage Uc | 60V | |
| Maximum Operating Temperature | 70°C | |
| Depth | 180mm | |
| Width | 225mm | |
| Standards/Approvals | CCC, CE, EAC, UL, IEC, RoHS | |
| Length | 180mm | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 24V ac/dc | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 600A | ||
Power Rating 200kW | ||
Series AF370 | ||
Function Motor Control | ||
Mount Type Screw | ||
Normal State Configuration 3 NO | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Bars | ||
Minimum Operating Temperature -40°C | ||
Contactor Application Motor Control | ||
Operational Current Ie 305A | ||
Control Circuit Voltage Uc 60V | ||
Maximum Operating Temperature 70°C | ||
Depth 180mm | ||
Width 225mm | ||
Standards/Approvals CCC, CE, EAC, UL, IEC, RoHS | ||
Length 180mm | ||
Pole and Throw Configuration 3 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- SE
ABB AF Series Contactor, 690V AC Contact Voltage Rating, 200kW - 1SFL607002R1111 AF370-30-11-11
This contactor is designed for industrial applications, specifically as a 3-pole device suitable for controlling motors and managing high current loads. With dimensions of 180mm in length, 140mm in width, and 180mm in depth, this model operates with a coil voltage of 24V and accommodates a maximum contact voltage of 690V.
Features & Benefits
• Designed for 600A switching capacity for high current requirements
• Supports a variety of motor power ratings up to 200kW
• Built-in surge protection enhances system reliability
• Auxiliary contacts available for additional circuit control
Applications
• Used for motor control in industrial machinery
• Suitable for electrical distribution systems requiring high current
• Ideal for switching applications where reliability is critical
Will it perform well in extreme temperatures?
It functions effectively in temperatures ranging from -40°C to +70°C.
Can multiple contactors be used together?
Yes, they can be easily extended with additional auxiliary contact blocks.
