Siemens 3RT2 Series Contactor, 230 V ac Coil, 3-Pole, 7 A, 3 kW, 3NO, 400 V ac

RS Stock No.:: 706-1093
Mfr. Part No.:: 3RT2015-2AP02
Brand:: Siemens

Siemens 3RT2 Series Contactor, 230 V ac Coil, 3-Pole, 7 A, 3 kW, 3NO, 400 V ac

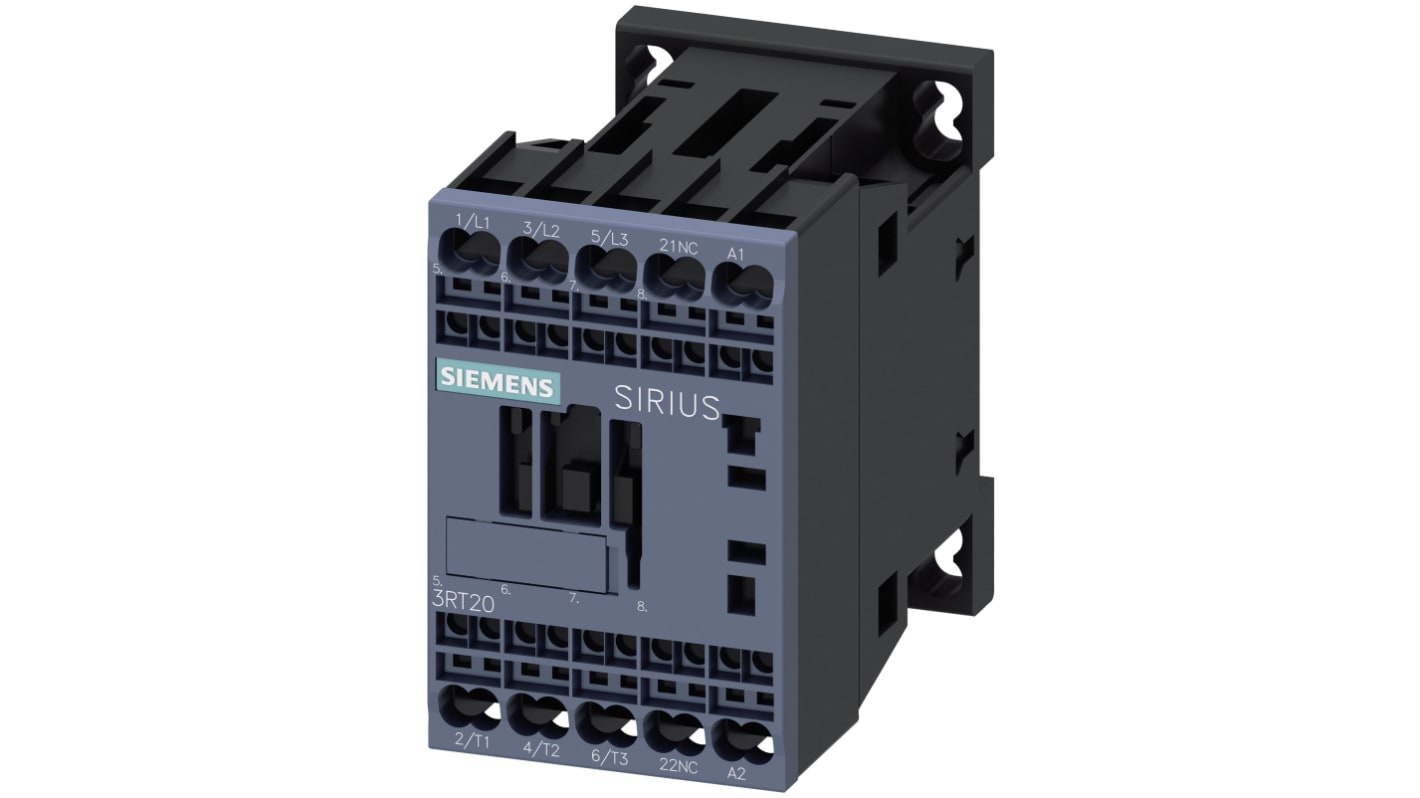

Image representative of range

Available to back order for despatch 21/05/2024

Added

Price Each

£28.17

(exc. VAT)

£33.80

(inc. VAT)

Units	Per unit
1 +	£28.17

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 706-1093
Mfr. Part No.:: 3RT2015-2AP02
Brand:: Siemens

Technical Reference

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

Specifications

Attribute	Value
Coil Voltage	230 V ac
Number of Poles	3
Contact Voltage Rating	400 V ac
Contact Current Rating	7 A
Series	3RT2
Power Rating	3 kW
Range	SIRIUS
Normal State Configuration	3NO
Number Of Auxiliary Contacts	1
Terminal Type	Cage Clamp
Width	45mm
Length	70mm
Depth	73mm
Better World Product	Yes
Better World Claim	Low carbon manufacture
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
