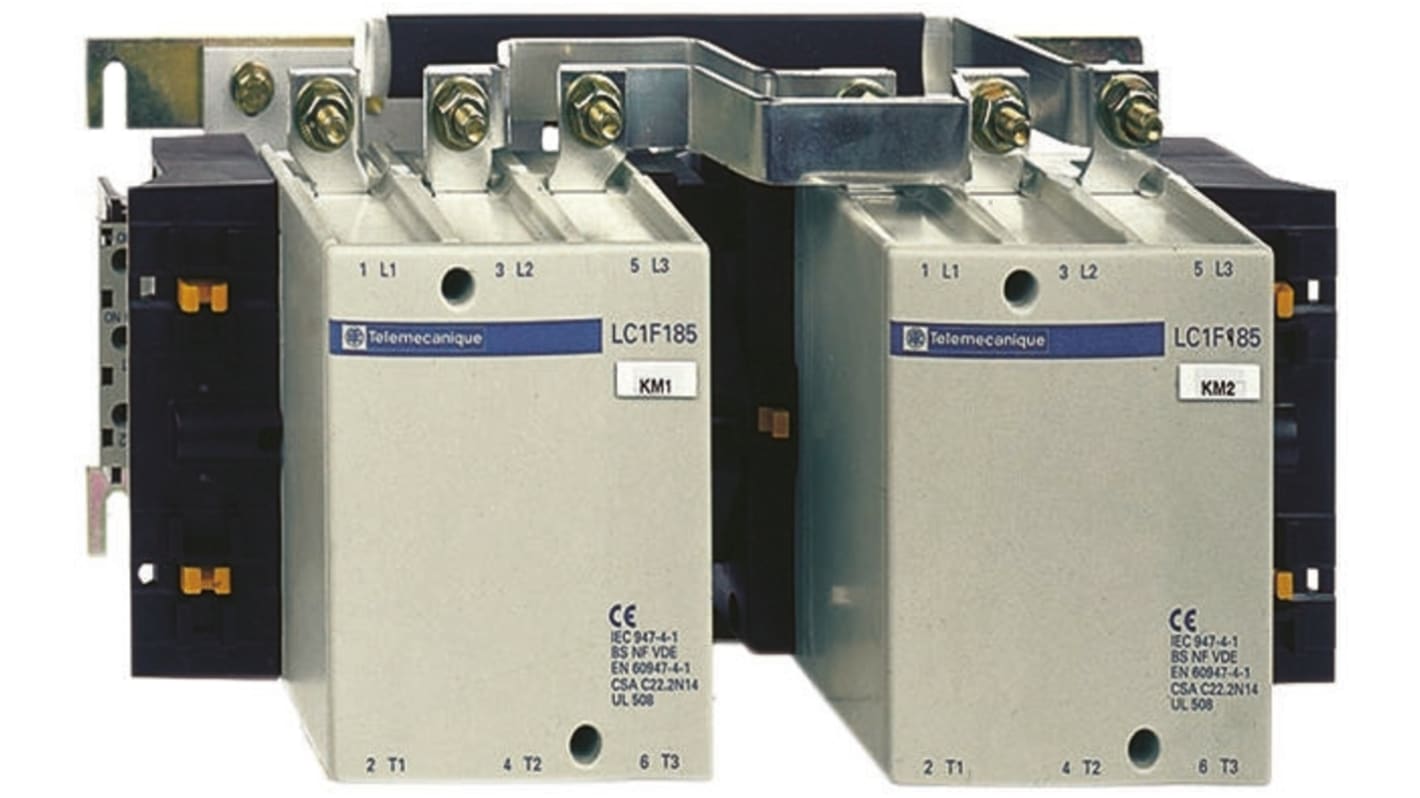

Schneider Electric TeSys F LC2F Contactor, 3-Pole, 185 A, 100 kW, 3NO, 1 kV ac

Image representative of range

Subtotal (1 unit)*

£1,875.22

(exc. VAT)

£2,250.26

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 1 unit(s), ready to ship from another location
Units
Per unit
1 +£1,875.22

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

Alternative

This product is not currently available. Here is our alternative recommendation.

RS Stock No.:
609-0655
Mfr. Part No.:
LC2F185
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Poles

3

Contact Voltage Rating

1 kV ac

Contact Current Rating

185 A

Series

LC2F

Range

TeSys F

Power Rating

100 kW

Function

Reversing

Normal State Configuration

3NO

Number Of Auxiliary Contacts

1

Terminal Type

Screw

Width

357mm

Length

174mm

Depth

181mm

Better World Product

Yes

Better World Verification

Green Premium

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-60°C

COO (Country of Origin):
CZ

Schneider Electric Contactors - LC1D TeSys D Series


Electric motor sizes are increasing, especially in applications such as HVAC+R and large industrial processes. In response, Schneider Electric is extending the TeSys range of block type contactors for AC3 duty. TeSys F Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LC1F series has been designed for integration in control systems and for motor control or resistive load applications. The TeSys F contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits


• North American and International terminal markings

• Panel mounted with supplied screws

• Bidirectional peak limiting diode suppressor to protect the coil

• Fully tested, approved, and certified by national and international bodies: IEC, CCC, CSA, UL

• Easily installed accessories

• Flexible control circuit to suit a wide range of applications

• For AC supply refer to the LX9 coils and for a DC supply refer to LX4 coils

Applications:


• Industrial control systems
• Switching contractors or relay coils
• Powering control and signalling switches

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?


Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.

Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Simplified design, installation and maintenance


The TeSys F series features a flexible design with a wide range of compatible components to support design requirements. A wide range of auxiliaries provide additional contacts where needed and drawer-mounted coils allow easy maintenance and reduce downtime.

Is the TeSys F range a double break pole type contactor?


Yes the TeSys F range uses linear translation movement that provides double breaking of the poles.
