Lovato BF BFD150 Contactor, 20 → 48 V ac/dc Coil, 4-Pole, 100 A, 4 NO, 1 kV
- RS Stock No.:
- 272-6244
- Mfr. Part No.:
- BFD150T4E024
- Brand:
- Lovato
Subtotal (1 unit)*
£1,312.34
(exc. VAT)
£1,574.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,312.34 |
*price indicative
- RS Stock No.:
- 272-6244
- Mfr. Part No.:
- BFD150T4E024
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Coil Voltage | 20 → 48 V ac/dc | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 1 kV | |
| Contact Current Rating | 100 A | |
| Range | BF | |
| Series | BFD150 | |
| Normal State Configuration | 4 NO | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Coil Voltage 20 → 48 V ac/dc | ||
Number of Poles 4 | ||
Contact Voltage Rating 1 kV | ||
Contact Current Rating 100 A | ||
Range BF | ||
Series BFD150 | ||
Normal State Configuration 4 NO | ||
- COO (Country of Origin):
- IT

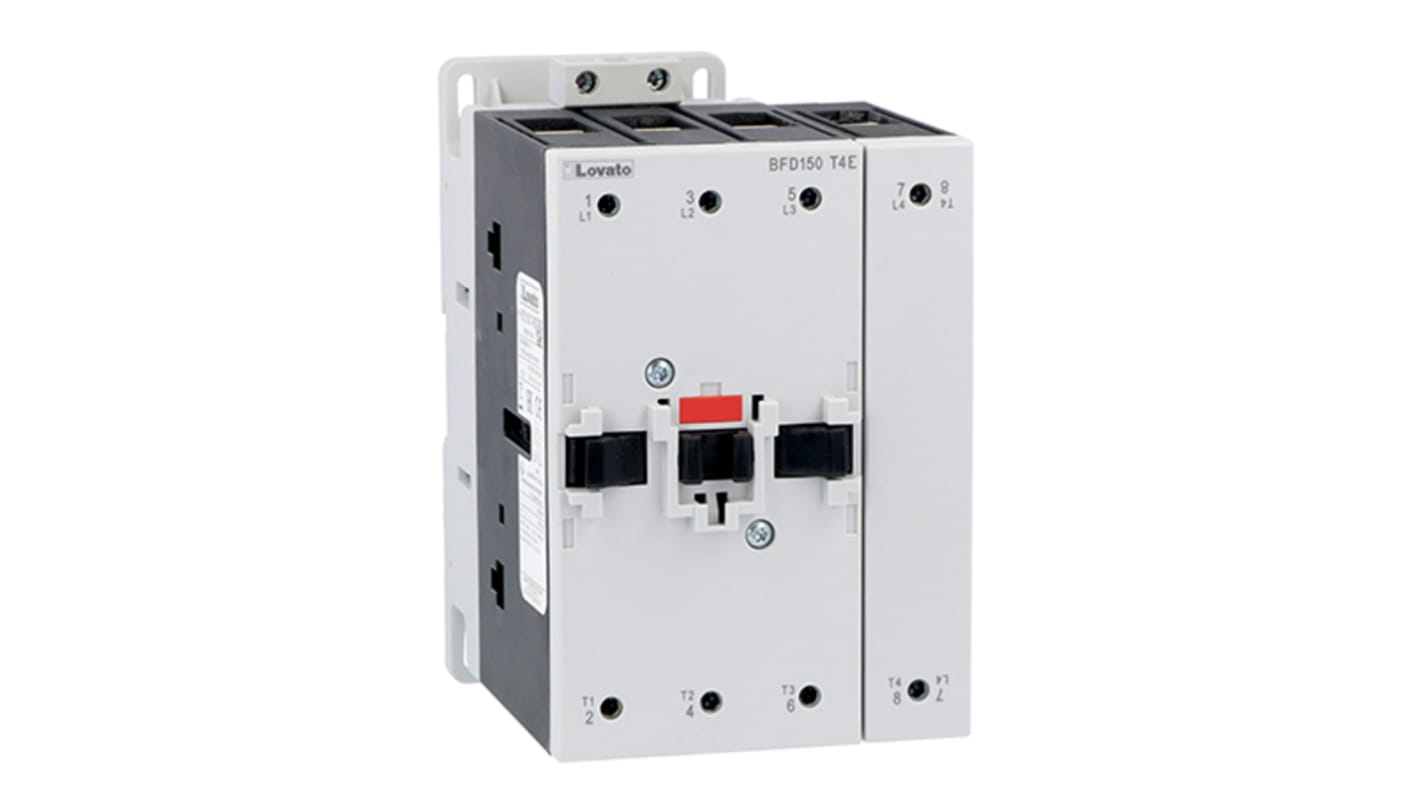

The Lovato Contactor is a 4 pole power contactor. This contactor has 165 A IEC conventional free air thermal current ITH and 20 to 48 VAC or VDC coil voltage. This device has screw or DIN rail 35 mm mounting. This contactor has minimum 25 Hz and maximum 400 Hz operational frequency with 2000 cycles per hours mechanical operation. This contactor offers IP20 front power terminal protection according to IEC and EN 60529.
EMC compatibility
3000 meter maximum altitude
Mechanical life is 15000000 cycles
Resistance per pole is 0.45 milliohm
Power dissipation per pole is 12 W at thermal current
3000 meter maximum altitude
Mechanical life is 15000000 cycles
Resistance per pole is 0.45 milliohm
Power dissipation per pole is 12 W at thermal current
