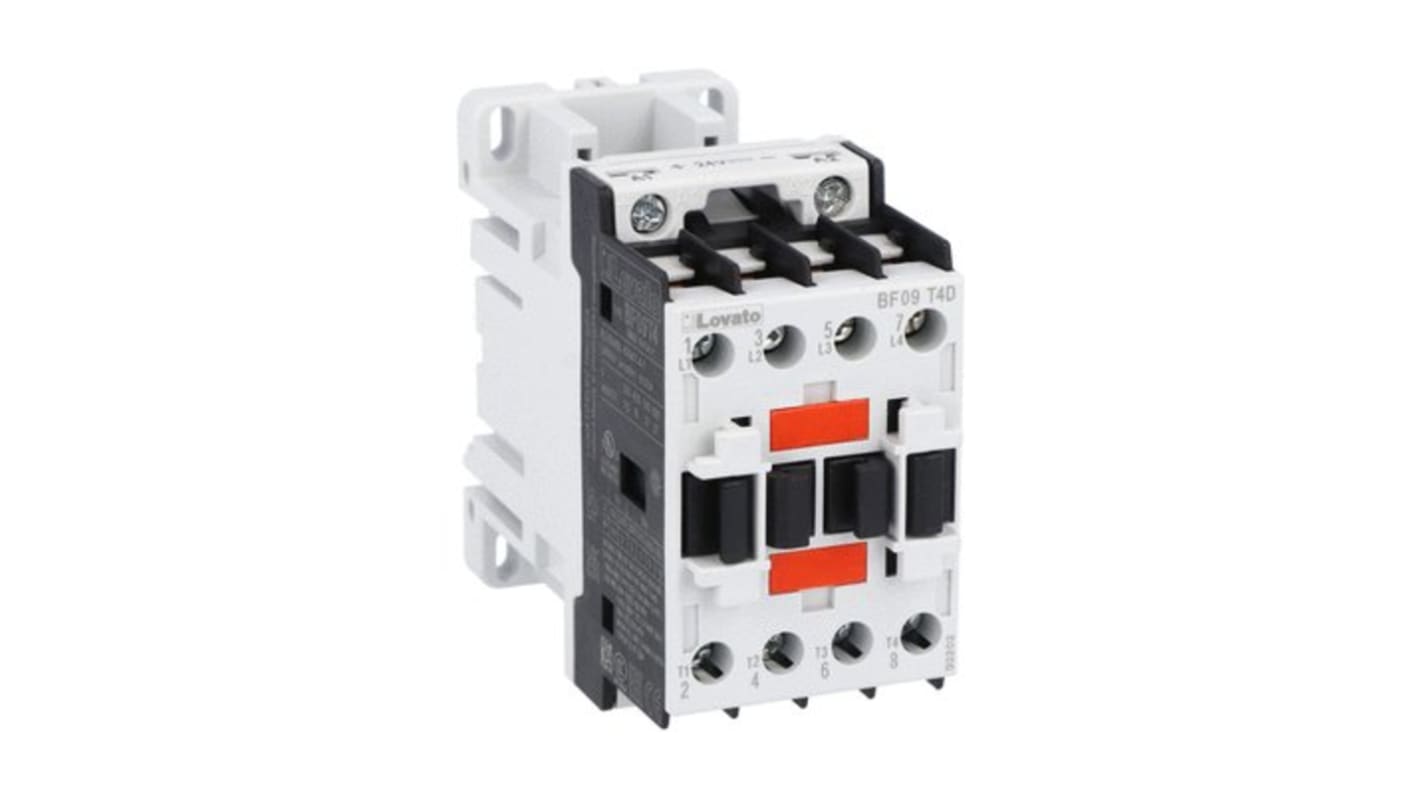

Lovato BF BF09 Contactor, 24 V dc Coil, 4-Pole, 25 A, 27 kW, 4 NO, 690 V
- RS Stock No.:
- 272-6122
- Mfr. Part No.:
- BF09T4D024
- Brand:
- Lovato
Subtotal (1 unit)*
£101.67
(exc. VAT)
£122.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £101.67 |
*price indicative
- RS Stock No.:
- 272-6122
- Mfr. Part No.:
- BF09T4D024
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Coil Voltage | 24 V dc | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 690 V | |
| Contact Current Rating | 25 A | |
| Power Rating | 27 kW | |
| Series | BF09 | |
| Range | BF | |
| Normal State Configuration | 4 NO | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Coil Voltage 24 V dc | ||
Number of Poles 4 | ||
Contact Voltage Rating 690 V | ||
Contact Current Rating 25 A | ||
Power Rating 27 kW | ||
Series BF09 | ||
Range BF | ||
Normal State Configuration 4 NO | ||
- COO (Country of Origin):
- IT
The Lovato Contactor is a 4 pole power contactor. This contactor has 25 A IEC conventional free air thermal current ITH and 24 VDC coil voltage. This device has screw or DIN rail 35 mm mounting. This contactor has minimum 25 Hz and maximum 400 Hz operational frequency with 3600 cycles per hours mechanical operation. This contactor offers IP20 power terminal protection according to IEC and EN 60529 when it is properly wired.
EMC compatibility
3000 meter maximum altitude
Mechanical life is 20000000 cycles
Resistance per pole is 2.5 milliohm
Power dissipation per pole is 1.6 W at thermal current
3000 meter maximum altitude
Mechanical life is 20000000 cycles
Resistance per pole is 2.5 milliohm
Power dissipation per pole is 1.6 W at thermal current
