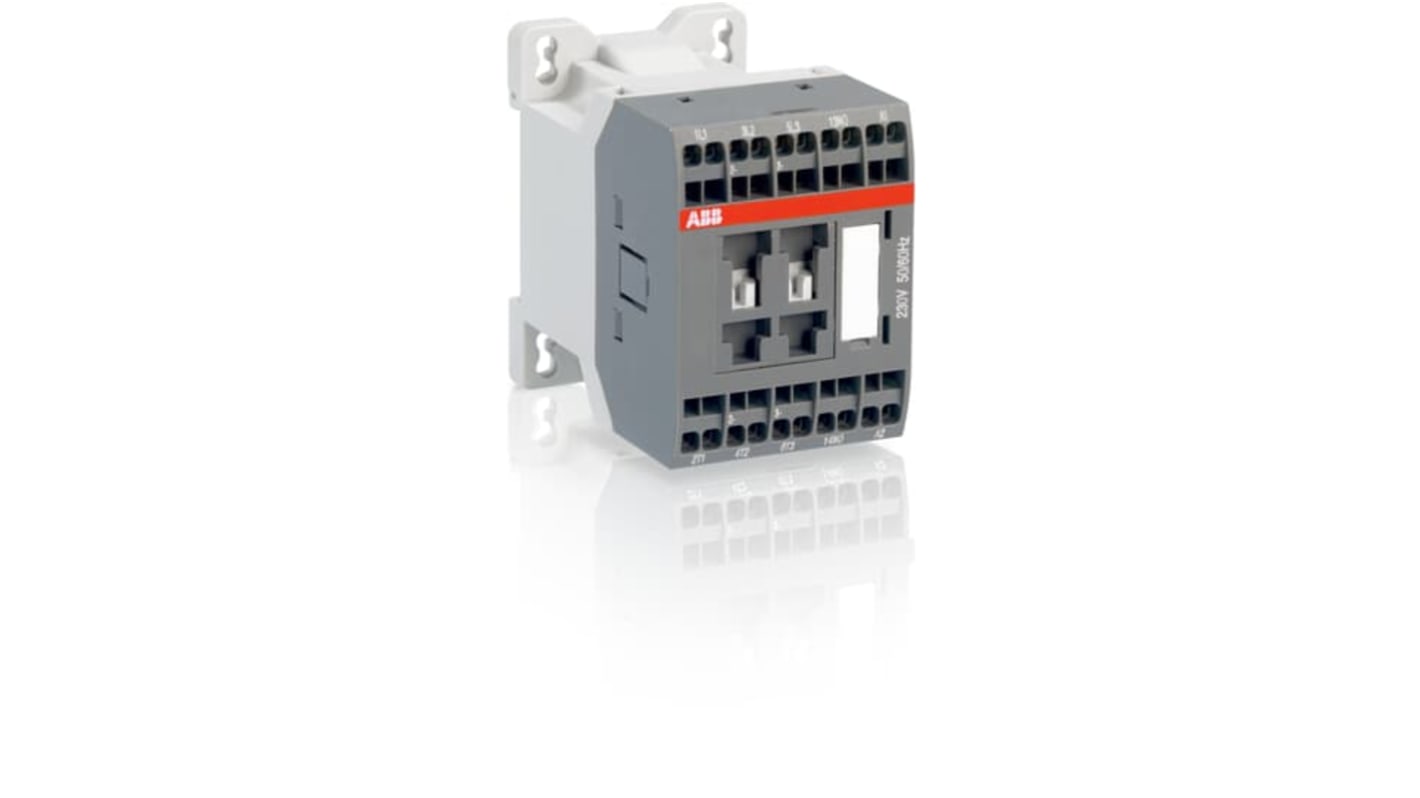

ABB 1SBL12 Series Contactor, 3 Poles, 16A Current Rating - 1SBL121004R2010

This contactor is designed for versatile control of 3-phase motors and power circuits up to 690V AC or 220V DC. Featuring a compact design with a length of 72.5mm, width of 45mm, and a depth of 72.5mm, it is ideal for various automation applications. The device operates effectively across a wide temperature range, making it suitable for demanding environments.

Features & Benefits

• Designed for operation at a coil voltage of 24V
• 3-pole configuration ensures efficient motor control
• Integrated with an auxiliary contact configuration for added functionality
• Supports a contact current rating of up to 16A
• High-temperature capability with an operational range of -40°C to +70°C
• Spring terminal connection offers quick and secure installation

Applications

• Utilised for controlling 3-phase motors in industrial settings
• Suitable for managing power circuits in automation systems
• Effective for controlling both non-inductive and slightly inductive loads
• Ideal for environments requiring effective thermal management
• Used in where frequent switching cycles are necessary

How does this device handle high operational temperatures?

The contactor is engineered to operate efficiently in environments ranging from -40°C to +70°C, ensuring consistent performance under extreme conditions.

What type of loads can be effectively managed with this device?

It is primarily developed for controlling non-inductive and slightly inductive loads, making it suitable for a variety of industrial applications.

Can additional auxiliary contacts be integrated?

Yes, the compact design allows for front-mounted add-on auxiliary contact blocks to enhance control capabilities as required.

What kind of electrical switching frequency can be expected?

This contactor can achieve a maximum electrical switching frequency of up to 1200 cycles per hour, ensuring reliable performance in dynamic applications.

Is this suitable for high-efficiency motor applications?

Yes, with a power rating of 7.5 kW and a rated operational current of 16A, it effectively meets the demands of high-efficiency motors while maintaining safety and reliability.

Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	690 V
	Number of Poles	3
	Contact Current Rating	16 A
	Series	1SBL12
	Power Rating	7.5 kW
	Function	Control Unit
	Normal State Configuration	4NO
	Number Of Auxiliary Contacts	1
	Auxiliary Contact Configuration	1NO
	Terminal Type	Cage Clamp
	Width	45mm
	Length	72.5mm
	Depth	72.5mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Control Voltage	24 V
	Pole and Throw Configuration	3P

	Select all
	Brand ABB
	Coil Voltage 690 V
	Number of Poles 3
	Contact Current Rating 16 A
	Series 1SBL12
	Power Rating 7.5 kW
	Function Control Unit
	Normal State Configuration 4NO
	Number Of Auxiliary Contacts 1
	Auxiliary Contact Configuration 1NO
	Terminal Type Cage Clamp
	Width 45mm
	Length 72.5mm
	Depth 72.5mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +70°C
	Control Voltage 24 V
	Pole and Throw Configuration 3P

ABB 1SBL12 Contactor, 690 V Coil, 3-Pole, 16 A, 7.5 kW, 4NO
