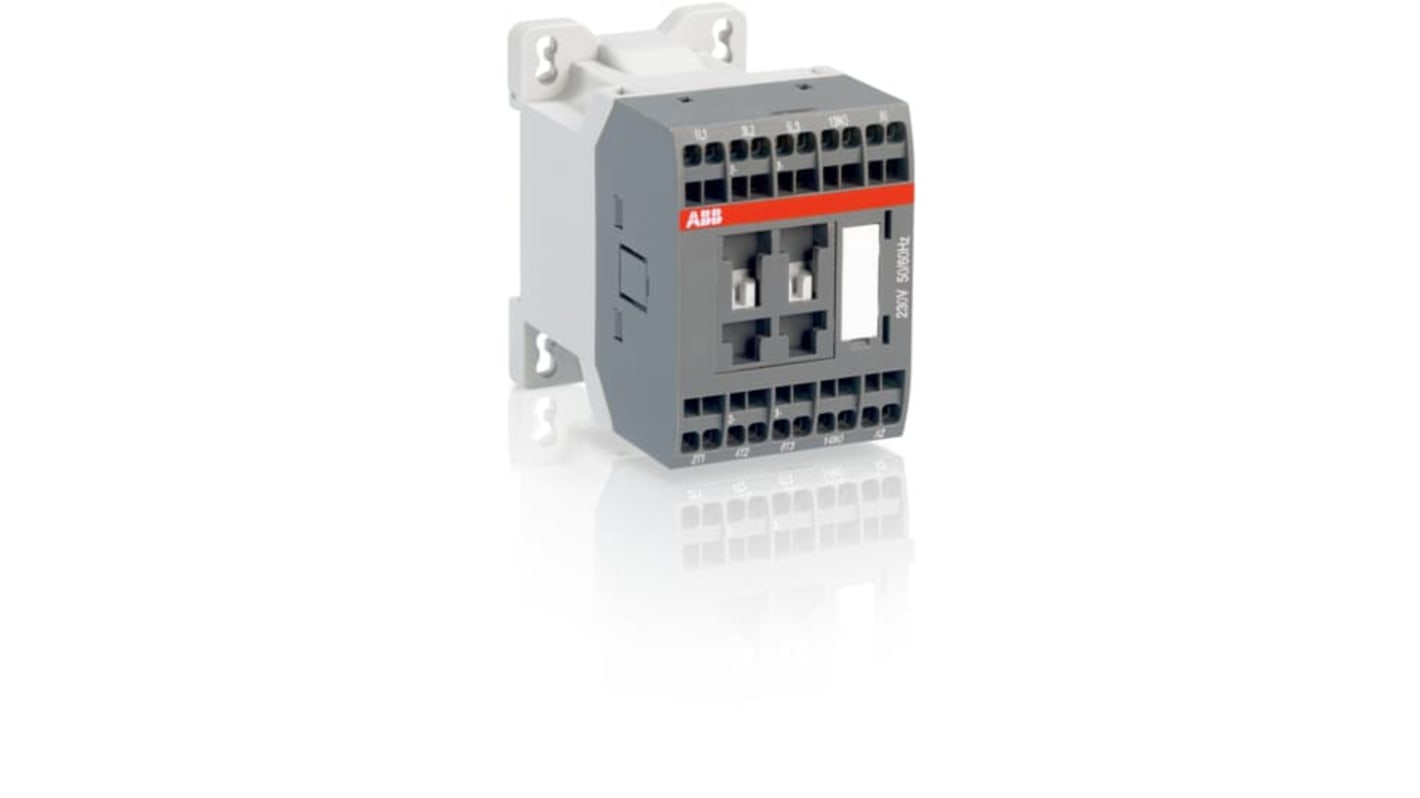

ABB 1SBL10 Contactor, 24V ac Coil, 3-Pole, 9 A, 4 kW 50V, 4 NO, 690V
- RS Stock No.:
- 253-1868
- Mfr. Part No.:
- 1SBL101004R2010
- Brand:
- ABB
Subtotal (1 unit)*
£31.27
(exc. VAT)
£37.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.27 |
*price indicative
- RS Stock No.:
- 253-1868
- Mfr. Part No.:
- 1SBL101004R2010
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 24V ac | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 9A | |
| Power Rating | 4kW | |
| Series | 1SBL10 | |
| Function | Motor Control | |
| Normal State Configuration | 4 NO | |
| Auxiliary Contact Configuration | 1 NO | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Spring Terminal | |
| Control Circuit Voltage Uc | 50V | |
| Contactor Application | Controlling 3-Phase Motors, Generally for Controlling Power Circuits | |
| Minimum Operating Temperature | -60°C | |
| Operational Current Ie | 20A | |
| Maximum Operating Temperature | 80°C | |
| Depth | 72.5mm | |
| Width | 72.5mm | |
| Standards/Approvals | CSA C22.2 n° 14, IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508 | |
| Length | 73mm | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 24V ac | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 9A | ||
Power Rating 4kW | ||
Series 1SBL10 | ||
Function Motor Control | ||
Normal State Configuration 4 NO | ||
Auxiliary Contact Configuration 1 NO | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Spring Terminal | ||
Control Circuit Voltage Uc 50V | ||
Contactor Application Controlling 3-Phase Motors, Generally for Controlling Power Circuits | ||
Minimum Operating Temperature -60°C | ||
Operational Current Ie 20A | ||
Maximum Operating Temperature 80°C | ||
Depth 72.5mm | ||
Width 72.5mm | ||
Standards/Approvals CSA C22.2 n° 14, IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508 | ||
Length 73mm | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- CN
ABB 1SBL10 Series Contactor, 3 Poles, Contact Current Rating 9A - 1SBL101004R2010
This contactor is designed for industrial applications, facilitating control in electrical systems. With a robust 3-pole configuration and a coil voltage of 690V, this unit is capable of managing both three-phase motors and various power circuits. Its compact dimensions of 72.5mm x 45mm x 72.5mm ensure ease of integration into existing setups.
Features & Benefits
• Supports control circuits up to 690V AC and 220V DC
• Optimised for 3-phase motor control for improved efficiency
• Built-in auxiliary contact for multi-functional operations
• Spring terminal design ensures quick installation and reduced wiring time
• High-temperature capabilities up to +70°C for demanding environments
• Rated power of 4 kW enables versatile applications
Applications
• Used for controlling three-phase motor operations in factories
• Ideal for managing non-inductive and slightly inductive loads
• Utilised in automated equipment setups requiring precise control
• Suitable for within environments exposed to high temperatures
How does this unit perform in high-temperature environments?
Its maximum operating temperature reaches +70°C, making it suitable for use in elevated temperature conditions, ensuring reliability in demanding industrial applications.
What type of electrical systems can this contactor manage?
It effectively controls circuits up to 690V AC or 220V DC, accommodating a variety of motor and power load requirements.
What benefits does the spring terminal design provide?
The spring terminal mechanism allows for faster, tool-free wiring, promoting ease of installation and maintenance, particularly beneficial in time-sensitive applications.
How many auxiliary contacts does it feature?
This contactor includes one built-in auxiliary contact, which allows for expanded functionality within control and automation systems.
