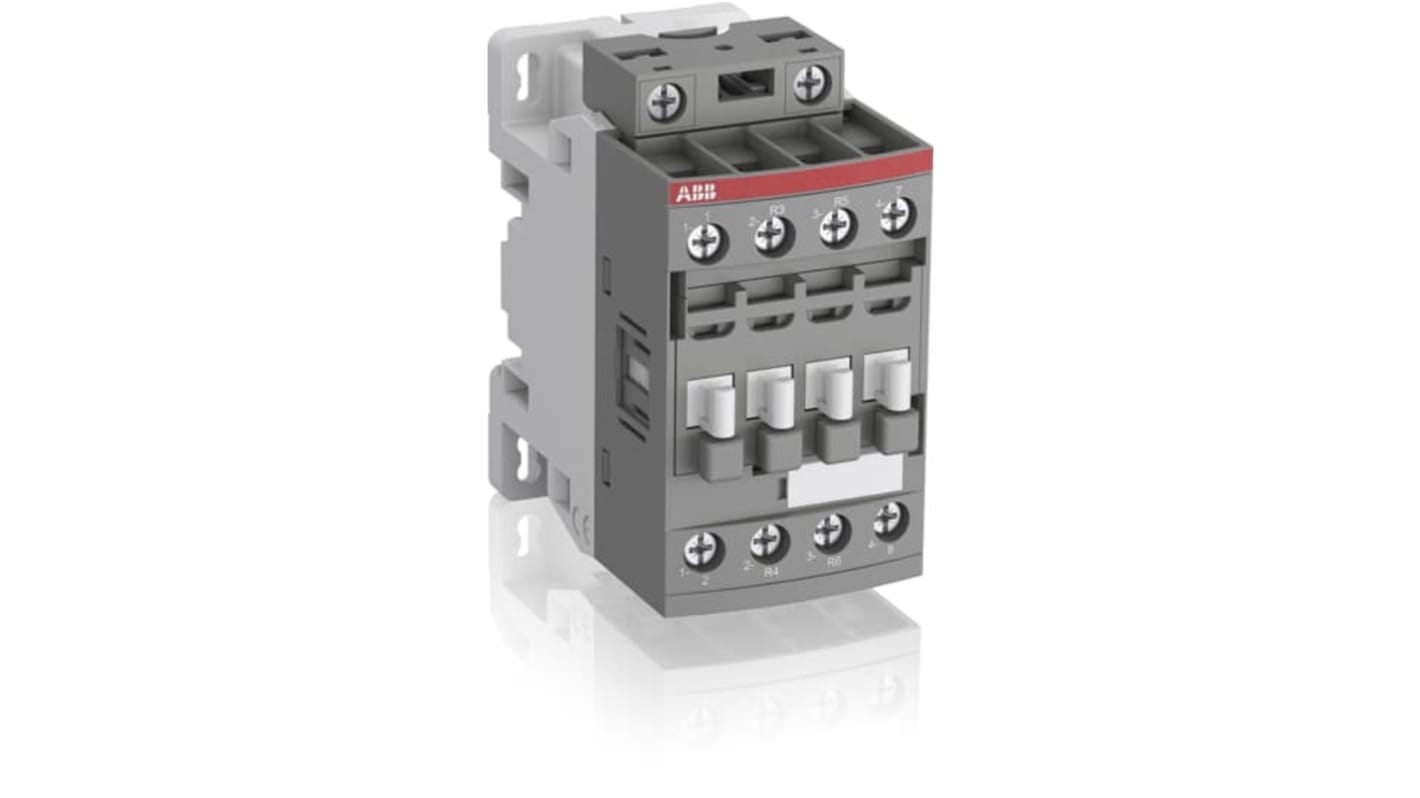

ABB Series AF Contactor, 20V Coil Voltage, 30A Contact Current Rating - 1SBL176501R2000

This contactor is a robust motor control device designed for efficient switching and controlling of motor circuits. With a durable construction featuring screw terminals, it operates at a coil voltage of up to 690V and supports a power rating of 7.5 kW. Measuring 45mm in width and 77mm in depth, and capable of functioning in a wide temperature range, this contactor ensures stability in various operational environments.

Features & Benefits

• Four-pole configuration enables versatile motor control applications
• Wide control voltage range of 12 to 20V DC enhances operational flexibility
• Capability to manage 30A contact current for reliable service
• Compact DIN rail design simplifies installation in control panels
• Surge protection built-in for enhanced circuit safety
• Operates effectively in ambient temperatures from -40°C to +70°C

Applications

• Ideal for controlling three-phase motors in industrial settings
• Suitable for automation systems requiring reliable switching capabilities
• Utilised in various electrical installations to manage high power loads
• Commonly used in machinery where space efficiency is key

What operational advantages does the contactor offer in high-temperature environments?

This contactor is rated for a maximum operating temperature of +70°C, ensuring reliable performance even in demanding conditions. Its sturdy design and high-temperature resilience make it suitable for various industrial applications.

How does the control voltage range impact flexibility in installations?

With a control voltage range of 12-20V DC, it accommodates significant voltage variations, allowing for efficient operation across different applications while reducing energy consumption in control panels.

What are the implications of using this device in terms of circuit protection?

The built-in surge protection feature helps prevent damage to connected equipment, making it a dependable choice in environments prone to electrical disturbances or fluctuations.

How does the design facilitate integration into existing systems?

The screw terminal configuration allows for straightforward connections, and the compact DIN rail mounting style enables easy installation alongside other control devices without consuming excessive space.

Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	690 V
	Number of Poles	4
	Contact Current Rating	30 A
	Power Rating	7.5 kW
	Series	AF
	Function	Motor Control
	Normal State Configuration	2NO/2NC
	Number Of Auxiliary Contacts	0
	Terminal Type	Screw
	Width	45mm
	Length	77mm
	Depth	77mm
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-40°C
	Pole and Throw Configuration	4P
	Mounting Style	DIN Rail
	Control Voltage	20 V

	Select all
	Brand ABB
	Coil Voltage 690 V
	Number of Poles 4
	Contact Current Rating 30 A
	Power Rating 7.5 kW
	Series AF
	Function Motor Control
	Normal State Configuration 2NO/2NC
	Number Of Auxiliary Contacts 0
	Terminal Type Screw
	Width 45mm
	Length 77mm
	Depth 77mm
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -40°C
	Pole and Throw Configuration 4P
	Mounting Style DIN Rail
	Control Voltage 20 V

ABB AF Contactor, 690 V Coil, 4-Pole, 30 A, 7.5 kW, 2NO/2NC
