	Brand	ABB
	Coil Voltage	24 V
	Number of Poles	3
	Contact Voltage Rating	690 V
	Contact Current Rating	20 A
	Power Rating	5.5 kW
	Range	BC7-30-10-F
	Series	B
	Function	Control Unit
	Normal State Configuration	3NO
	Auxiliary Contact Configuration	1NO
	Number Of Auxiliary Contacts	1
	Terminal Type	Flat-Pin
	Width	52.5mm
	Length	46.7mm
	Depth	46.7mm
	Maximum Operating Temperature	+55°C
	Pole and Throw Configuration	3P
	Minimum Operating Temperature	-25°C
	Mounting Style	DIN Rail

	Select all
	Brand ABB
	Coil Voltage 24 V
	Number of Poles 3
	Contact Voltage Rating 690 V
	Contact Current Rating 20 A
	Power Rating 5.5 kW
	Range BC7-30-10-F
	Series B
	Function Control Unit
	Normal State Configuration 3NO
	Auxiliary Contact Configuration 1NO
	Number Of Auxiliary Contacts 1
	Terminal Type Flat-Pin
	Width 52.5mm
	Length 46.7mm
	Depth 46.7mm
	Maximum Operating Temperature +55°C
	Pole and Throw Configuration 3P
	Minimum Operating Temperature -25°C
	Mounting Style DIN Rail

Datasheet - GJL1313003R0101

COO (Country of Origin):: DE

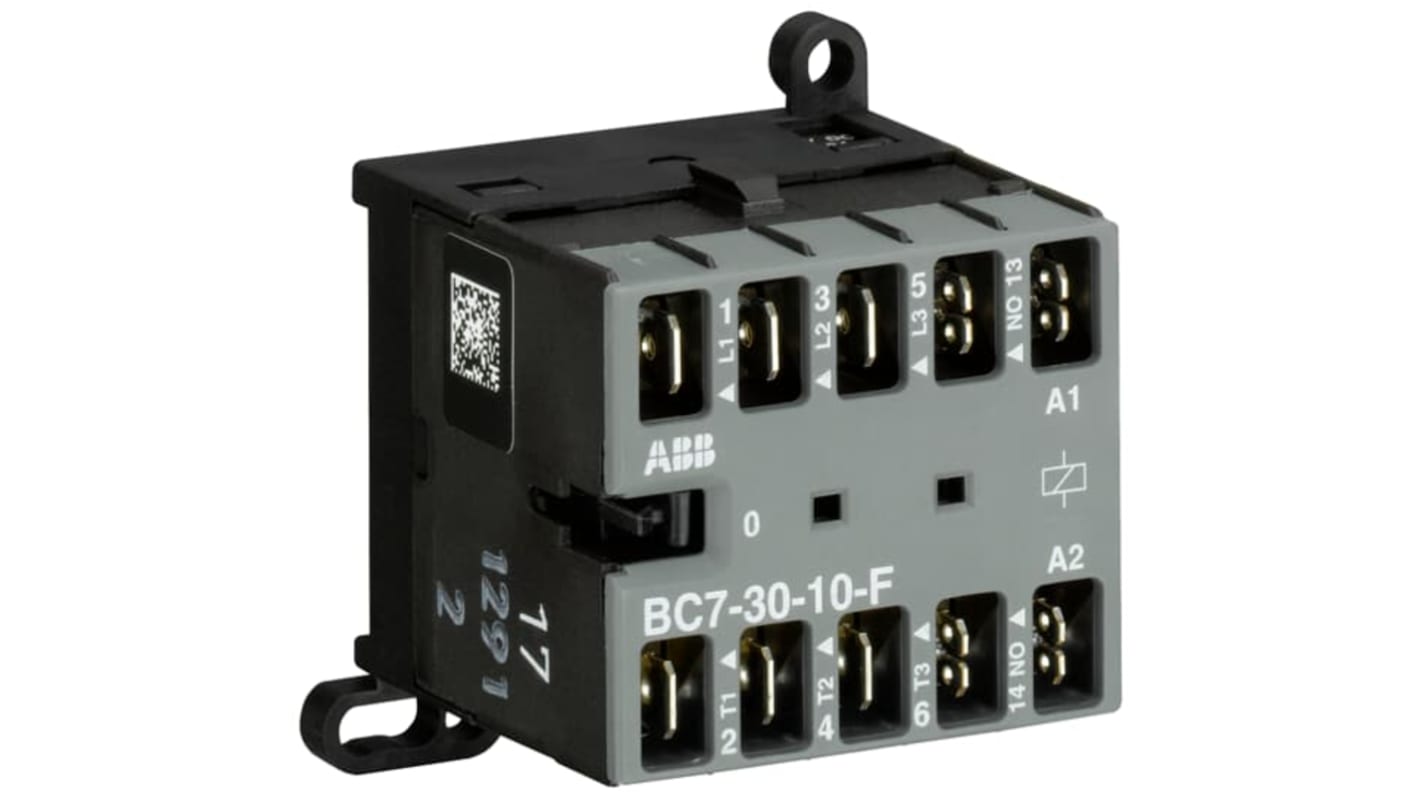

ABSeries B BC7-30-10-F Contactor, 24V DC Voltage Rating, 20A Voltage Rating - GJL1313003R0101 BC7-30-10-F 24V DC

This contactor is a compact control unit designed for electrical automation tasks. With a 3-pole configuration and flat-pin connections, it operates efficiently in various environments. Its robust design accommodates loads up to 5.5 kW and contact ratings of 20A at a maximum voltage of 690V. The dimensions measure 52.5mm in width and 46.7mm in depth, making it suitable for confined spaces.

Features & Benefits

• Compact design suitable for space-constrained installations
• 24V DC coil for efficient control operations
• Supports AC-1 ratings for reliable load handling
• DIN rail mounting for easy installation
• Integrated switch position indication enhances usability
• Auxiliary contact configuration aids in control signal switching

Applications

• Used for controlling single or three-phase loads
• Ideal for residential and commercial building
• Suitable for industrial control systems
• Supports automation tasks in electrical equipment
• Utilised in motor control circuits for efficient operation

What is the maximum ambient temperature for safe operation?

The contactor can operate safely at a maximum temperature of +55°C, ensuring functionality in demanding environments.

How does this contactor handle multiple load types?

The unit effectively supports both AC and DC loads, making it versatile for various applications within industrial automation.

What configuration options are available for different use cases?

With a 3NO configuration and one auxiliary contact, it allows flexible integration into control systems to meet specific requirements.

What are the implications of its rated operational voltage?

At a rated operational voltage of 24V DC, it ensures efficient control while maintaining safety standards in signalling applications.
