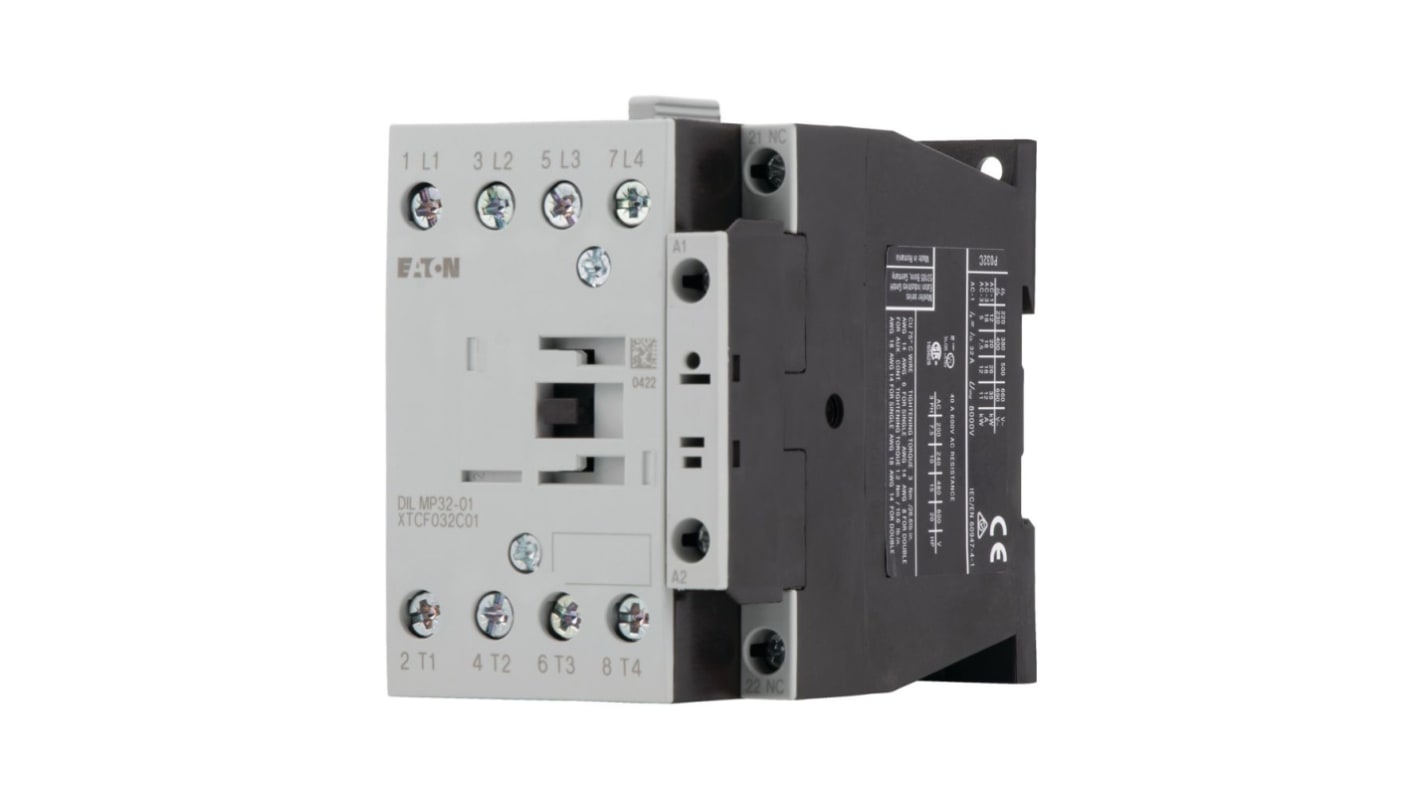

Eaton DILMP Contactor, 24V dc Coil, 4-Pole, 32 A, 7.5 kW 24V, 27 V, 1 NC, 690V
- RS Stock No.:
- 230-4448
- Mfr. Part No.:
- 118913 DILMP32-01(RDC24)
- Brand:
- Eaton
Subtotal (1 unit)*
£112.22
(exc. VAT)
£134.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
- Plus 10 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £112.22 |
*price indicative
- RS Stock No.:
- 230-4448
- Mfr. Part No.:
- 118913 DILMP32-01(RDC24)
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Contactor | |
| Coil Voltage | 24V dc | |
| Number of Poles | 4 | |
| Contact Voltage | 690V | |
| Contact Current | 32A | |
| Series | DILMP | |
| Power Rating | 7.5kW | |
| Function | Reversing | |
| Normal State Configuration | 1 NC | |
| Auxiliary Contact Configuration | 1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Contactor Application | Contactor for 4 Pole Electric Consumers | |
| Control Circuit Voltage Uc | 24, 27V | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 18A | |
| Maximum Operating Temperature | 60°C | |
| Width | 58mm | |
| Length | 97mm | |
| Depth | 97mm | |
| Standards/Approvals | CSA-C22.2 No. 60947-4-1-14, CE, IEC/EN 60947-4-1, UL 60947-4-1 | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Contactor | ||
Coil Voltage 24V dc | ||
Number of Poles 4 | ||
Contact Voltage 690V | ||
Contact Current 32A | ||
Series DILMP | ||
Power Rating 7.5kW | ||
Function Reversing | ||
Normal State Configuration 1 NC | ||
Auxiliary Contact Configuration 1 NC | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Contactor Application Contactor for 4 Pole Electric Consumers | ||
Control Circuit Voltage Uc 24, 27V | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 18A | ||
Maximum Operating Temperature 60°C | ||
Width 58mm | ||
Length 97mm | ||
Depth 97mm | ||
Standards/Approvals CSA-C22.2 No. 60947-4-1-14, CE, IEC/EN 60947-4-1, UL 60947-4-1 | ||
Pole and Throw Configuration 4 | ||
Eaton DILMP Series Contactor, 400V Coil Voltage, 1NC Normal State Configuration - 118913 DILMP32-01(RDC24)
This industrial contactor is an essential part of automation and control systems. Specifically designed for reversing operations, it features a robust construction that enables it to switch 4 pole electric consumers reliably. With a contact current rating of 200A and a coil voltage of 400V, it effectively handles substantial electrical loads, promoting efficiency across various applications. Its integration into electrical systems enhances operational performance and safety.
Features & Benefits
• Delivers operational efficacy with a contact current rating of 200A
• Comes with a 400V coil voltage for efficient power management
• Offers a durable mechanical lifespan allowing extensive use
• Utilises screw terminals for secure and stable connections
Applications
• Suitable for non-inductive and slightly inductive electric loads
• Controls AC induction motors during start-up
• Employed in resistance furnaces for thermal
• Ideal for requiring trustworthy switching capabilities
• Utilised in advanced automation systems within industrial environments
What type of loads can be switched using this device?
It is designed for non-inductive and slightly inductive loads, including motors and resistance furnaces.
How can I ensure proper installation and connection?
Secure connections using screw terminals as indicated in the instruction manual for optimal performance.
What is the expected mechanical lifespan under frequent operation?
The device can endure a mechanical lifespan of up to 10 million operations under standard conditions.
Is compatibility with existing control systems possible?
It integrates well into established automation systems due to its standardised design and specifications.
Note
Eaton formerly known as Moeller
