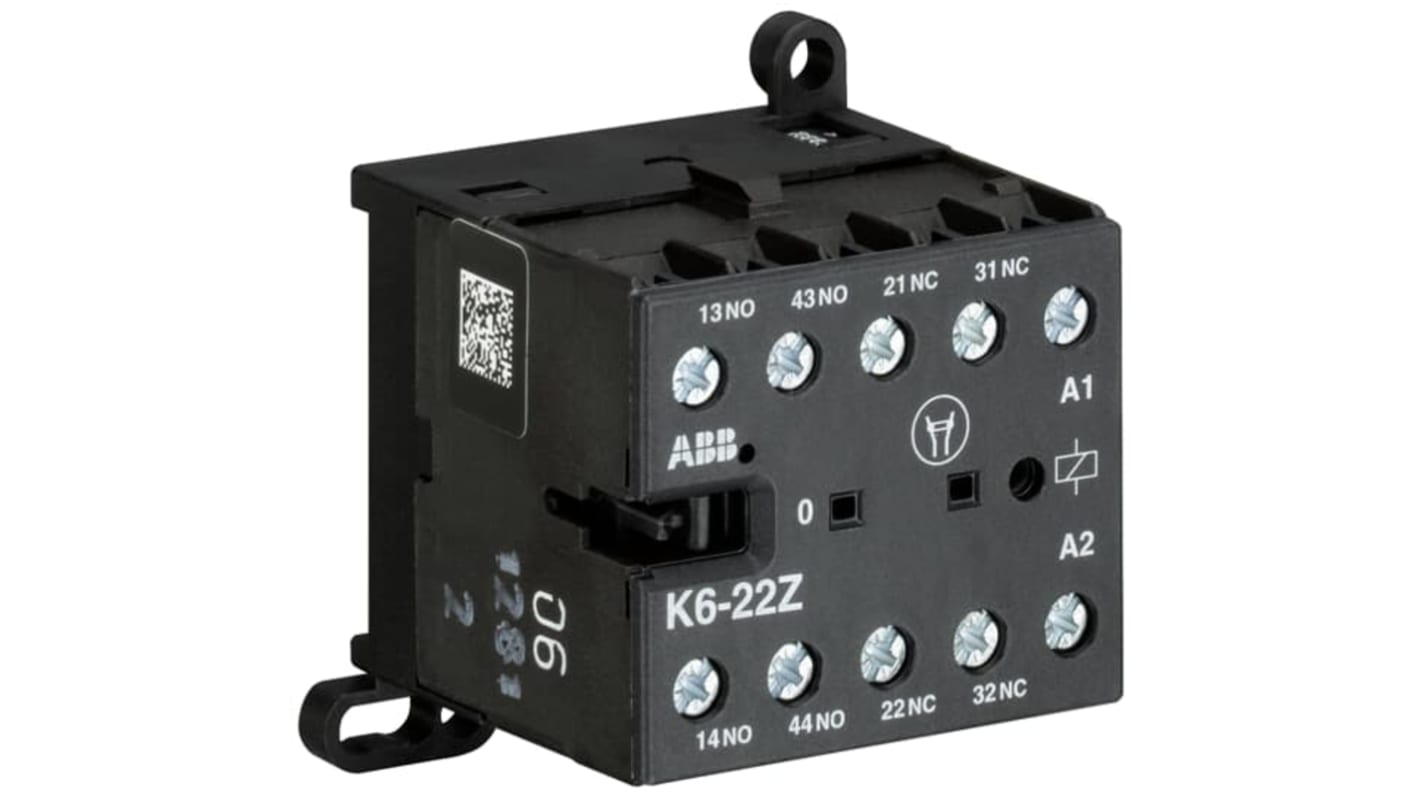

ABB 4 A Contactor Relay, 240 V Coil, 4-Pole, 4 A 690 V, 2 NO/2 NC, 690V
- RS Stock No.:
- 225-6167
- Mfr. Part No.:
- GJH1211001R8220 K6-22Z 230V 40/450HZ
- Brand:
- ABB
Subtotal (1 unit)*
£27.59
(exc. VAT)
£33.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.59 |
*price indicative
- RS Stock No.:
- 225-6167
- Mfr. Part No.:
- GJH1211001R8220 K6-22Z 230V 40/450HZ
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 240 V | |
| Product Type | Contactor Relay | |
| Number of Poles | 4 | |
| Contact Voltage | 690V | |
| Contact Current | 4A | |
| Series | 4 A | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 4 pole | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 690 V | |
| Operational Current Ie | 4A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | cULus, UL IEC/EN 60947-1, UL 60947-4-1, UL 60947-1, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, EAC | |
| Length | 57.5mm | |
| Depth | 46.5mm | |
| Width | 52.5 mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 240 V | ||
Product Type Contactor Relay | ||
Number of Poles 4 | ||
Contact Voltage 690V | ||
Contact Current 4A | ||
Series 4 A | ||
Mount Type DIN Rail | ||
Normal State Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 4 pole | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 690 V | ||
Operational Current Ie 4A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals cULus, UL IEC/EN 60947-1, UL 60947-4-1, UL 60947-1, RoHS, IEC/EN 60947-5-1, IEC/EN 60947-4-1, EAC | ||
Length 57.5mm | ||
Depth 46.5mm | ||
Width 52.5 mm | ||
ABB GJH Series Contactor Relay, 4 Poles, 4A Contact Rating - GJH1211001R8220
This contactor relay is a compact, efficient solution designed for automation and control applications. Its robust 4-pole structure and screw terminal design make it suitable for a variety of operating conditions. With a control voltage range of 220 to 240V AC, this relay operates effectively in ambient temperatures between -25°C and +55°C.
Features & Benefits
• Compact design ideal for space-constrained setups
• Silent coil operation reduces noise in electrical systems
• Suitable for control signals up to 3A at 400V
• Offers reliable switching performance with low power loss
• Designed for both DIN rail and wall mounting flexibility
• High mechanical durability with over 10 million cycles
Applications
• Used for switching control signals in residential installations
• Ideal for commercial building automation systems
• Employed in industrial environments for reliable signal control
• Suitable for integration into electrical control panels
How does the operating temperature range affect performance?
The operating temperature range of -25°C to +55°C ensures reliability in diverse environmental conditions, allowing for stable performance in both cold and warm settings.
What type of mounting options are available?
It can be easily mounted on DIN rails, allowing for quick installation and versatility in different setups, whether positioned on walls or inside control panels.
What is the advantage of using screw terminals?
Screw terminals provide secure connections ensuring stable electrical contact, making it simple to maintain and replace components when required.
What specifications should be considered for load requirements?
The device is rated for a maximum switching capacity of 4A, handling control signals efficiently up to 400V, which caters to most typical load requirements in various applications.
