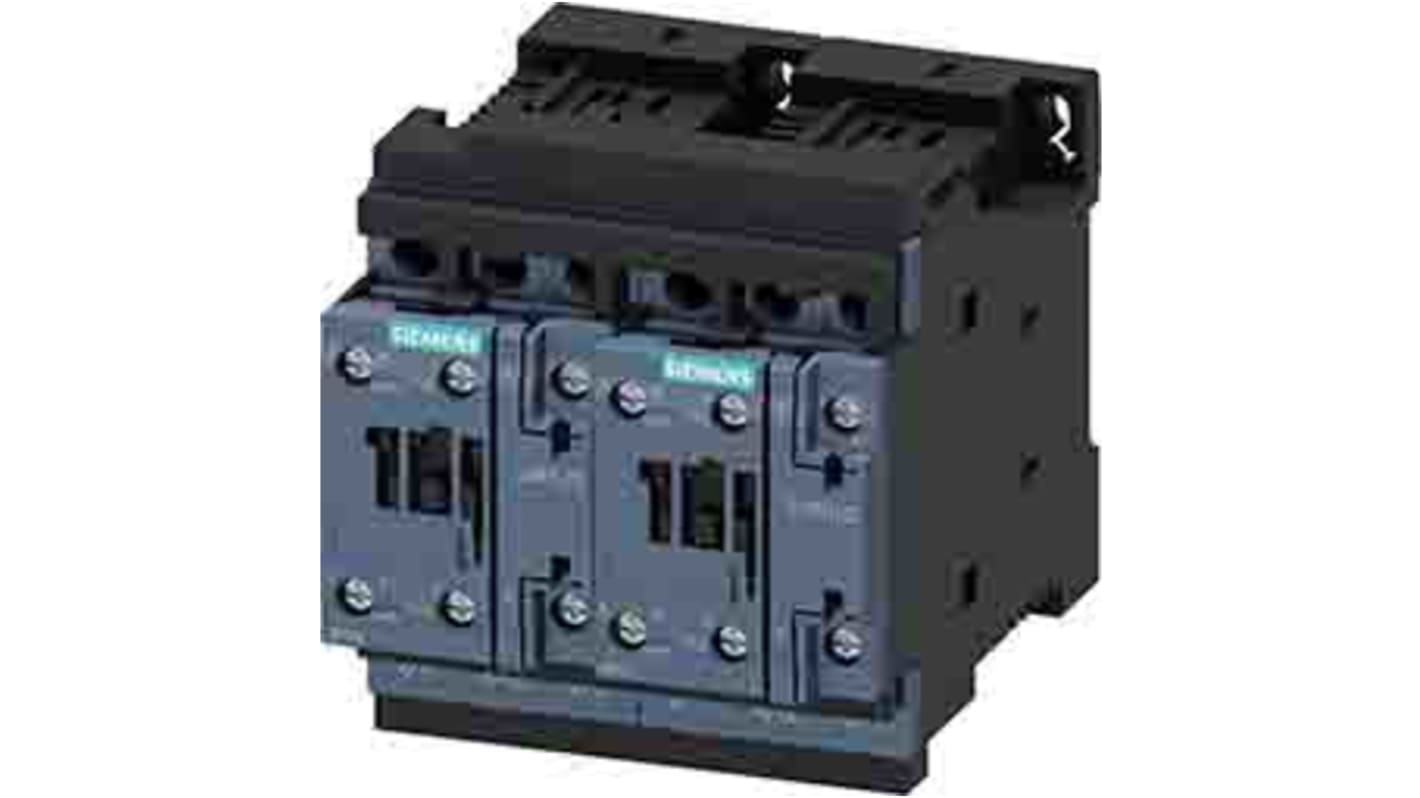

Siemens SIRIUS Reversing Contactor, 24 V dc Coil, 3-Pole, 32 A, 15 kW, 3NO
- RS Stock No.:
- 213-0724
- Mfr. Part No.:
- 3RA2327-8XB30-1BB4
- Brand:
- Siemens
Subtotal (1 unit)*
£362.83
(exc. VAT)
£435.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £362.83 |
*price indicative
- RS Stock No.:
- 213-0724
- Mfr. Part No.:
- 3RA2327-8XB30-1BB4
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 24 V dc | |
| Number of Poles | 3 | |
| Contact Current Rating | 32 A | |
| Range | SIRIUS | |
| Power Rating | 15 kW | |
| Function | Reversing | |
| Normal State Configuration | 3NO | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 24 V dc | ||
Number of Poles 3 | ||
Contact Current Rating 32 A | ||
Range SIRIUS | ||
Power Rating 15 kW | ||
Function Reversing | ||
Normal State Configuration 3NO | ||
- COO (Country of Origin):
- DE
The Siemens reversing contactor assembly has size S0 screw terminal electrical and mechanical Interlock 2 NO integrated reversing contactor assembly SIRIUS 3RA23 for switching motors including change of rotation direction.
The 3RA23 reversing contactor assembly is a proven and factory-fitted combination of two 3RT2 contactors of the same output which are already fully wired and are interlocked both mechanically and electrically. They are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
The 3RA23 reversing contactor assembly are available with AC and DC actuation in sizes S00 to S3.
The 3RA23 reversing contactor assembly is a proven and factory-fitted combination of two 3RT2 contactors of the same output which are already fully wired and are interlocked both mechanically and electrically. They are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
The 3RA23 reversing contactor assembly are available with AC and DC actuation in sizes S00 to S3.
Mounting type is screw and Snap-On mounting onto 35 mm standard mounting rail
Protection class is IP20
Protection class is IP20
