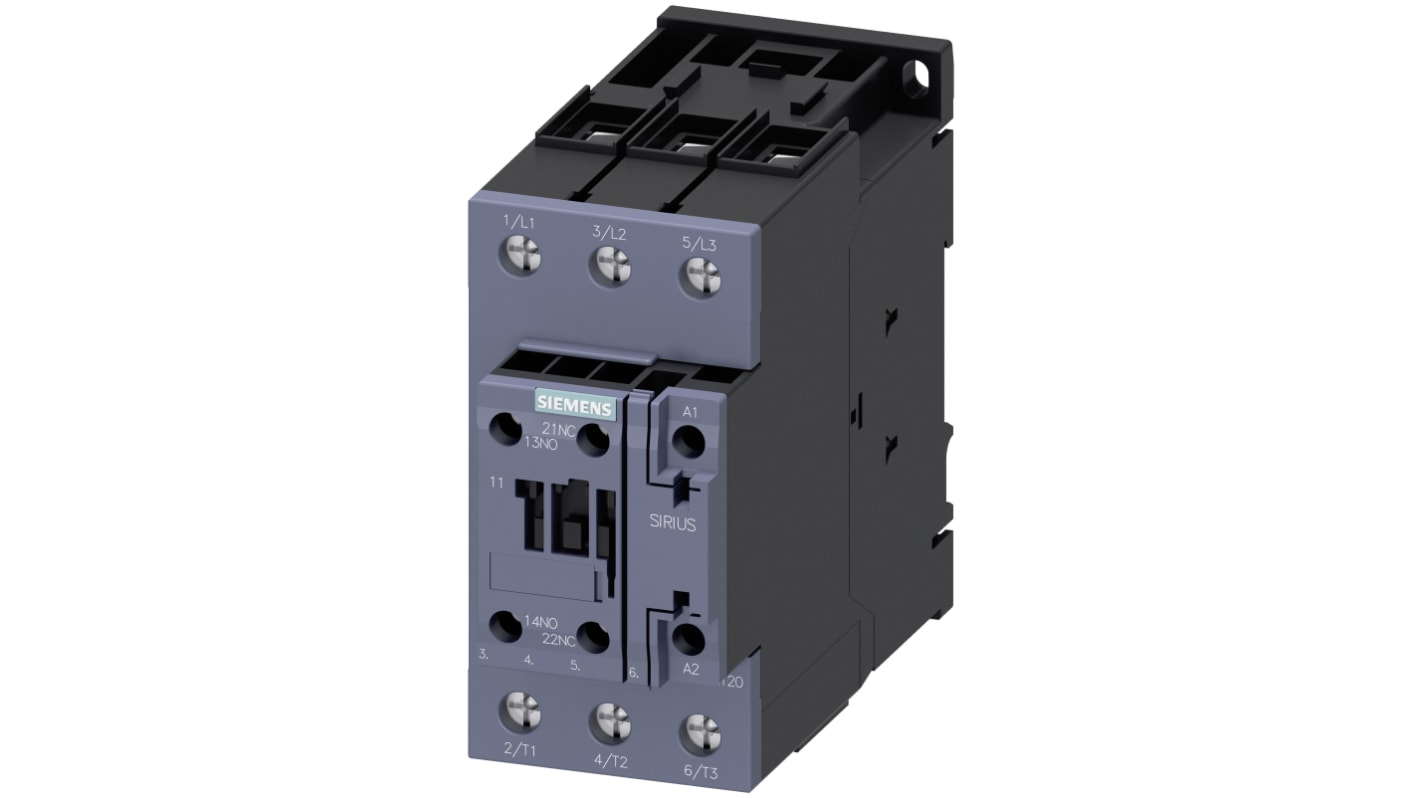

Siemens SIRIUS 3RT Size S2, 3RT2 Contactor, 400 V ac Coil, 3-Pole, 40 A, 18.5 kW, 3NO, 690 V ac
- RS Stock No.:
- 122-9460
- Mfr. Part No.:
- 3RT2035-1AV00
- Brand:
- Siemens
Subtotal (1 unit)*
£126.52
(exc. VAT)
£151.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.52 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 122-9460
- Mfr. Part No.:
- 3RT2035-1AV00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 400 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 40 A | |
| Power Rating | 18.5 kW | |
| Series | Size S2, 3RT2 | |
| Range | SIRIUS 3RT | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Width | 130mm | |
| Length | 55mm | |
| Depth | 113.4mm | |
| Better World Claim | Low carbon manufacture | |
| Better World Product | Yes | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +60°C | |
| Pole and Throw Configuration | 3PST | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 400 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 40 A | ||
Power Rating 18.5 kW | ||
Series Size S2, 3RT2 | ||
Range SIRIUS 3RT | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Width 130mm | ||
Length 55mm | ||
Depth 113.4mm | ||
Better World Claim Low carbon manufacture | ||
Better World Product Yes | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Pole and Throw Configuration 3PST | ||
- COO (Country of Origin):
- DE
Contactors - 3RT Range, Screw Connections
The 3RT Range of Siemens Contactors. All models are highly reliable and extremely good quality.
Features and Benefits
- Screw Connection
- All models vary with Current rating and Voltage.
- Various NO/NC Values
