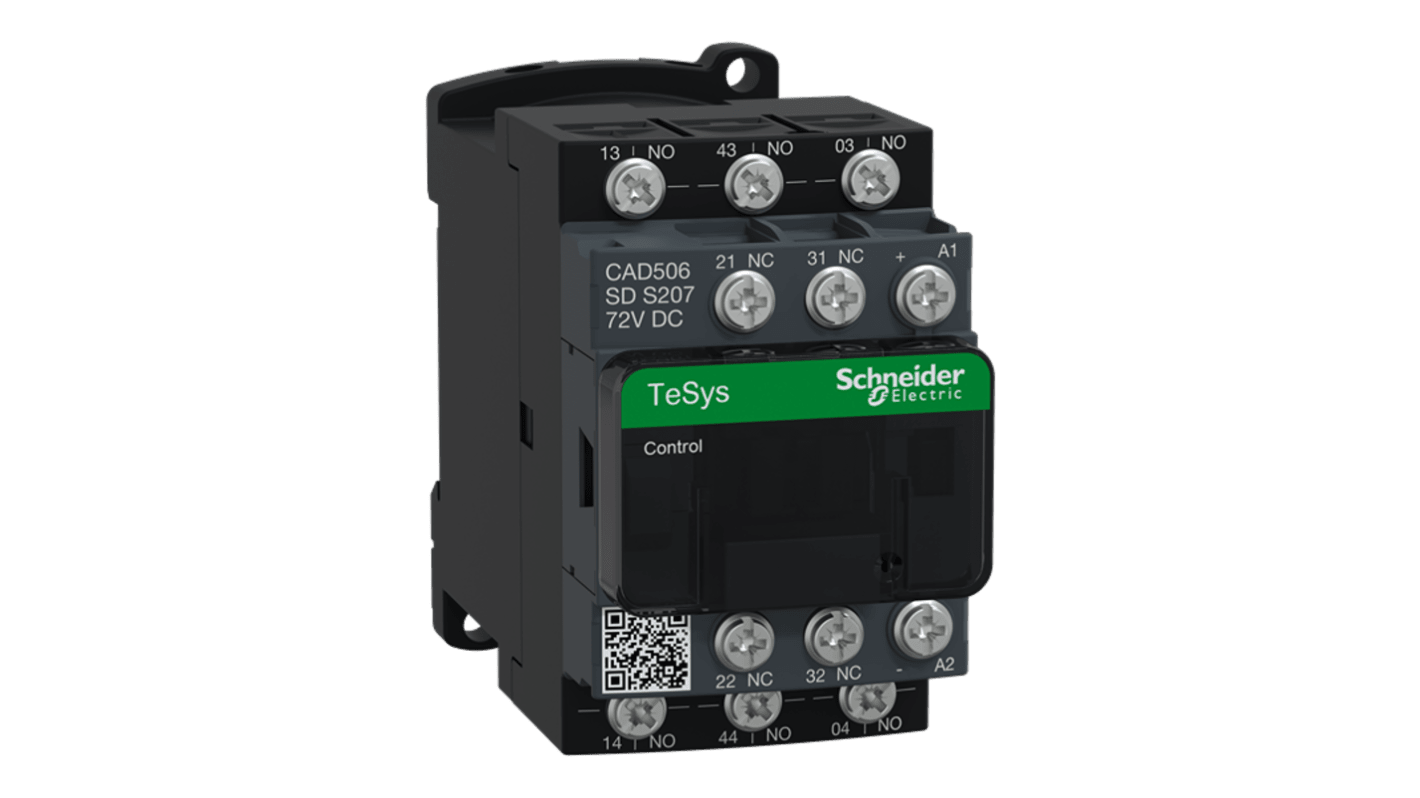

Schneider Electric CAD Contactor, 72V Coil, 5-Pole, 10 A, 5.4 W, 5 NO, 690V
- RS Stock No.:
- 357-660
- Mfr. Part No.:
- CAD506SDS207
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£137.04
(exc. VAT)
£164.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £137.04 |
*price indicative
- RS Stock No.:
- 357-660
- Mfr. Part No.:
- CAD506SDS207
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor | |
| Coil Voltage | 72V | |
| Number of Poles | 5 | |
| Contact Voltage | 690V | |
| Contact Current | 10A | |
| Power Rating | 5.4W | |
| Series | CAD | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 5 NO | |
| Minimum Operating Temperature | 70°C | |
| Maximum Operating Temperature | -40°C | |
| Width | 45mm | |
| Depth | 93mm | |
| Length | 77mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor | ||
Coil Voltage 72V | ||
Number of Poles 5 | ||
Contact Voltage 690V | ||
Contact Current 10A | ||
Power Rating 5.4W | ||
Series CAD | ||
Mount Type DIN Rail | ||
Normal State Configuration 5 NO | ||
Minimum Operating Temperature 70°C | ||
Maximum Operating Temperature -40°C | ||
Width 45mm | ||
Depth 93mm | ||
Length 77mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- FR
The Schneider Electric Control Relay, with the device short name CAD, is designed for control circuit applications. It is compatible with utilization categories AC-14, AC-15, and DC-13, making it versatile for different control and switching functions in both AC and DC circuits.
With integral suppression device
Rail and plate mounting
Mechanical durability of 30 Mcycles
