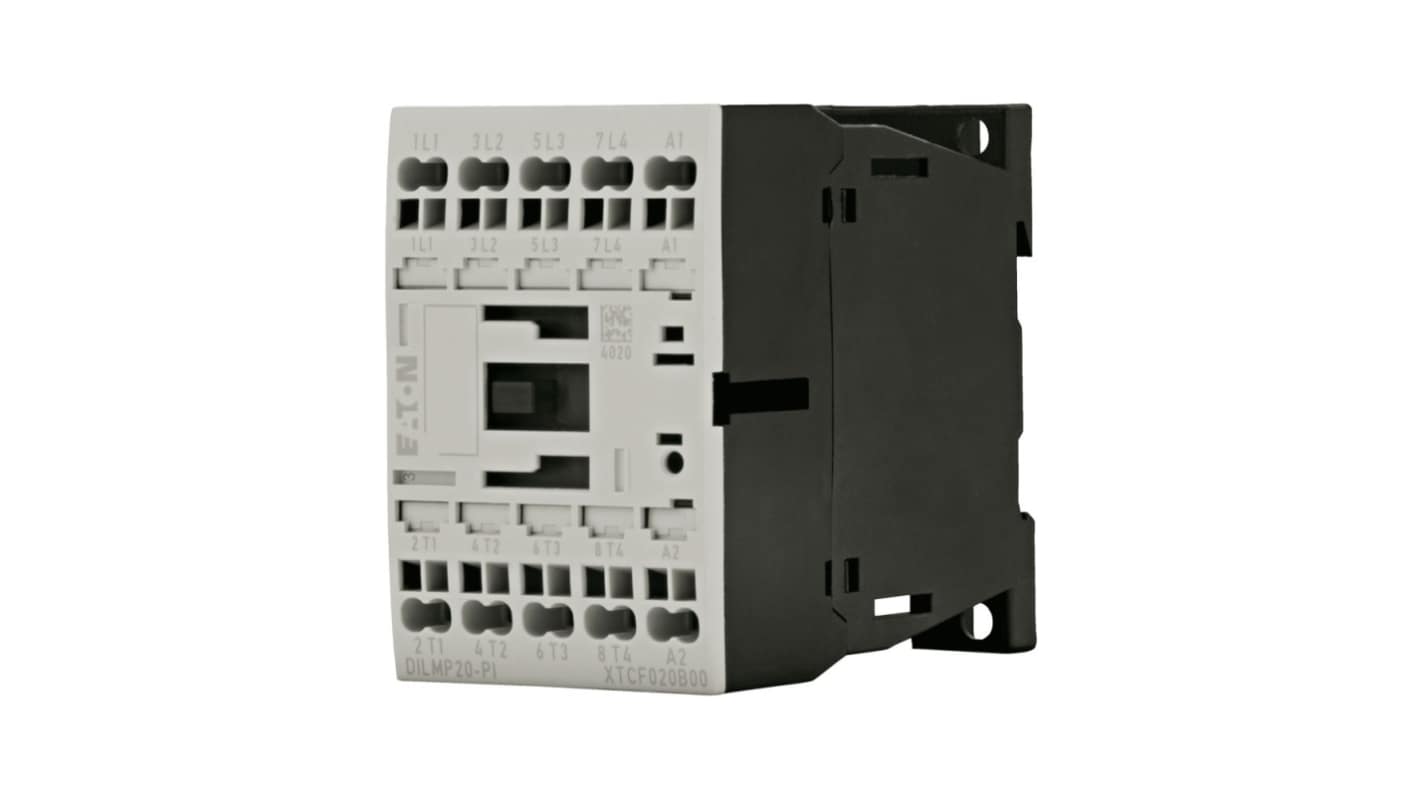

Eaton Moeller Contactor, 240V Coil, 4-Pole, 22 A, 24 kW, 690V
- RS Stock No.:
- 250-888
- Mfr. Part No.:
- 199658 DILMP20(230V50/60HZ)-PI
- Brand:
- Eaton
Subtotal (1 unit)*
£62.85
(exc. VAT)
£75.42
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £62.85 |
*price indicative
- RS Stock No.:
- 250-888
- Mfr. Part No.:
- 199658 DILMP20(230V50/60HZ)-PI
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 240V | |
| Product Type | Contactor | |
| Number of Poles | 4 | |
| Contact Voltage | 690V | |
| Contact Current | 22A | |
| Series | Moeller | |
| Power Rating | 24kW | |
| Terminal Type | Push-in | |
| Contactor Application | Contactor for 4 Pole Electric Consumers | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 45mm | |
| Standards/Approvals | VDE 0660, IEC/EN 60947 | |
| Depth | 68mm | |
| Length | 75mm | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 240V | ||
Product Type Contactor | ||
Number of Poles 4 | ||
Contact Voltage 690V | ||
Contact Current 22A | ||
Series Moeller | ||
Power Rating 24kW | ||
Terminal Type Push-in | ||
Contactor Application Contactor for 4 Pole Electric Consumers | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Width 45mm | ||
Standards/Approvals VDE 0660, IEC/EN 60947 | ||
Depth 68mm | ||
Length 75mm | ||
Pole and Throw Configuration 4 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton 4-pole contactor is designed for reliable AC operation, boasting a robust construction ideal for various electrical applications. Engineered to handle substantial loads, it efficiently manages non-inductive and slightly inductive loads, making it suitable for a range of operational needs. The compact dimensions ensure ease of installation while maintaining high performance standards. With advanced features such as push-in terminals and a high mechanical lifespan, this product exemplifies the quality and efficiency that Eaton is renowned for. Its certifications further assure users of compliance with both safety and operational standards, offering peace of mind in demanding environments.
Utilises push-in terminals for quick and secure connections
Designed for use in diverse industrial applications
Features a high mechanical lifespan to enhance longevity
Accommodates multiple voltage types for flexibility in usage
Offers protection against finger and back-of-hand contact
Equipped with a high rated impulse withstand voltage
Provides exceptional shock resistance for durability in tough environments
Rated for high operational current, ensuring optimal performance
Complies with stringent environmental standards
Compact footprint allows for efficient space utilisation
