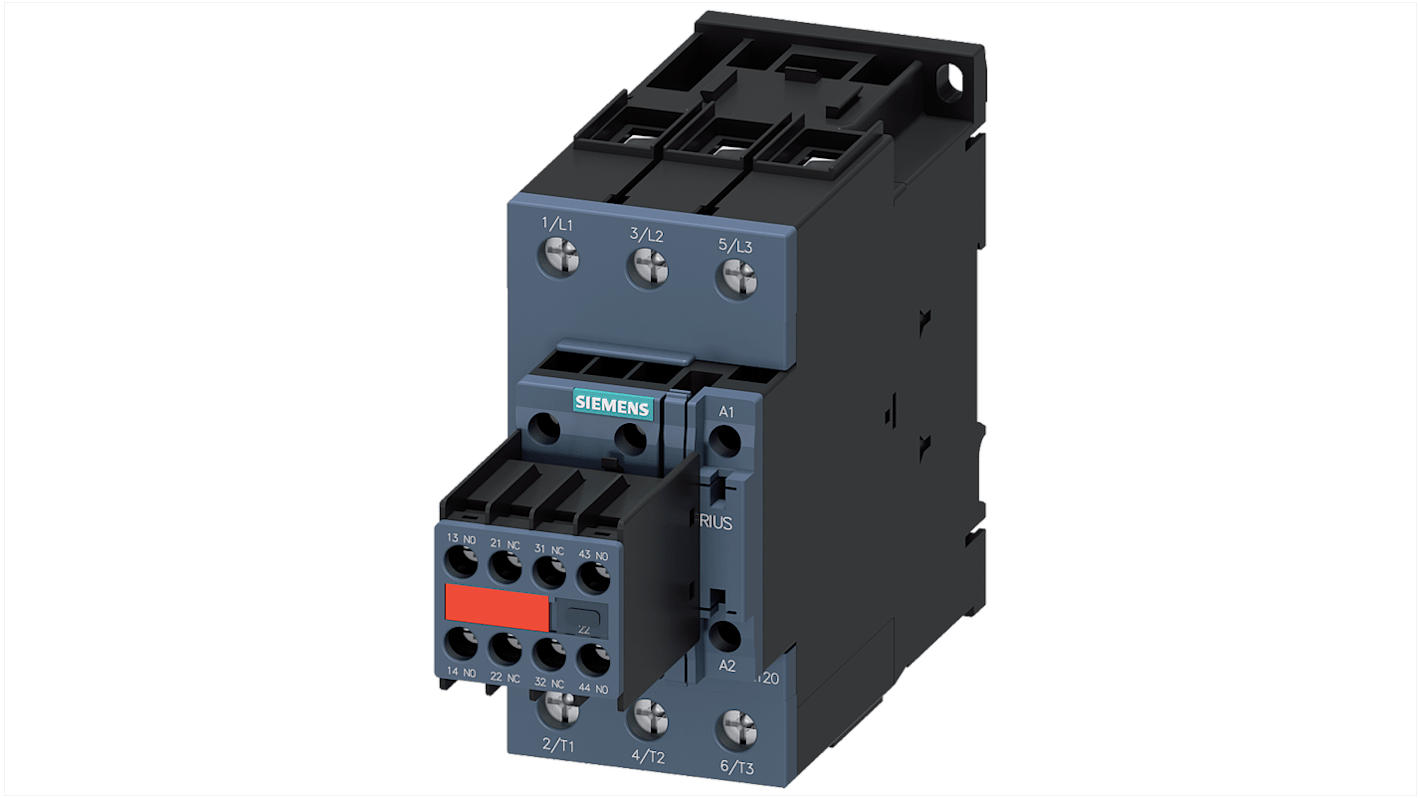

Siemens 3RT2 Contactor, 230 V Coil, 3-Pole, 65 A, 30 kW 230 V, 2 NO/2 NC, 690V
- RS Stock No.:
- 155-751
- Mfr. Part No.:
- 3RT2037-1CK64-3MA0
- Brand:
- Siemens
Subtotal (1 unit)*
£244.34
(exc. VAT)
£293.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £244.34 |
*price indicative
- RS Stock No.:
- 155-751
- Mfr. Part No.:
- 3RT2037-1CK64-3MA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Contactor | |
| Coil Voltage | 230 V | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 65A | |
| Series | 3RT2 | |
| Power Rating | 30kW | |
| Function | Safety | |
| Normal State Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Terminal Type | Screw | |
| Contactor Application | AC-3, AC-3e | |
| Control Circuit Voltage Uc | 230 V | |
| Operational Current Ie | 80A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 114mm | |
| Depth | 174mm | |
| Width | 55 mm | |
| Standards/Approvals | IEC 60529, IEC 61508-2, ISO 13849-1, ISO 13849-2 | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Contactor | ||
Coil Voltage 230 V | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 65A | ||
Series 3RT2 | ||
Power Rating 30kW | ||
Function Safety | ||
Normal State Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Terminal Type Screw | ||
Contactor Application AC-3, AC-3e | ||
Control Circuit Voltage Uc 230 V | ||
Operational Current Ie 80A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Length 114mm | ||
Depth 174mm | ||
Width 55 mm | ||
Standards/Approvals IEC 60529, IEC 61508-2, ISO 13849-1, ISO 13849-2 | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- DE
The Siemens Power Contactor is designed for reliable performance in rigorous industrial applications. This compact and versatile contactor is engineered to handle a variety of operational currents, making it suitable for both standard and demanding setups. With a sturdy construction that ensures longevity, it integrates cutting edge technology to deliver superior functionality, ensuring that systems run efficiently.
Up to 10 million operations
Multiple auxiliary contacts
Surge voltage resistance up to 6 kV
Screw type terminals for easy installation
Compact for versatile mounting
High shock resistance
Low power loss for energy efficiency
