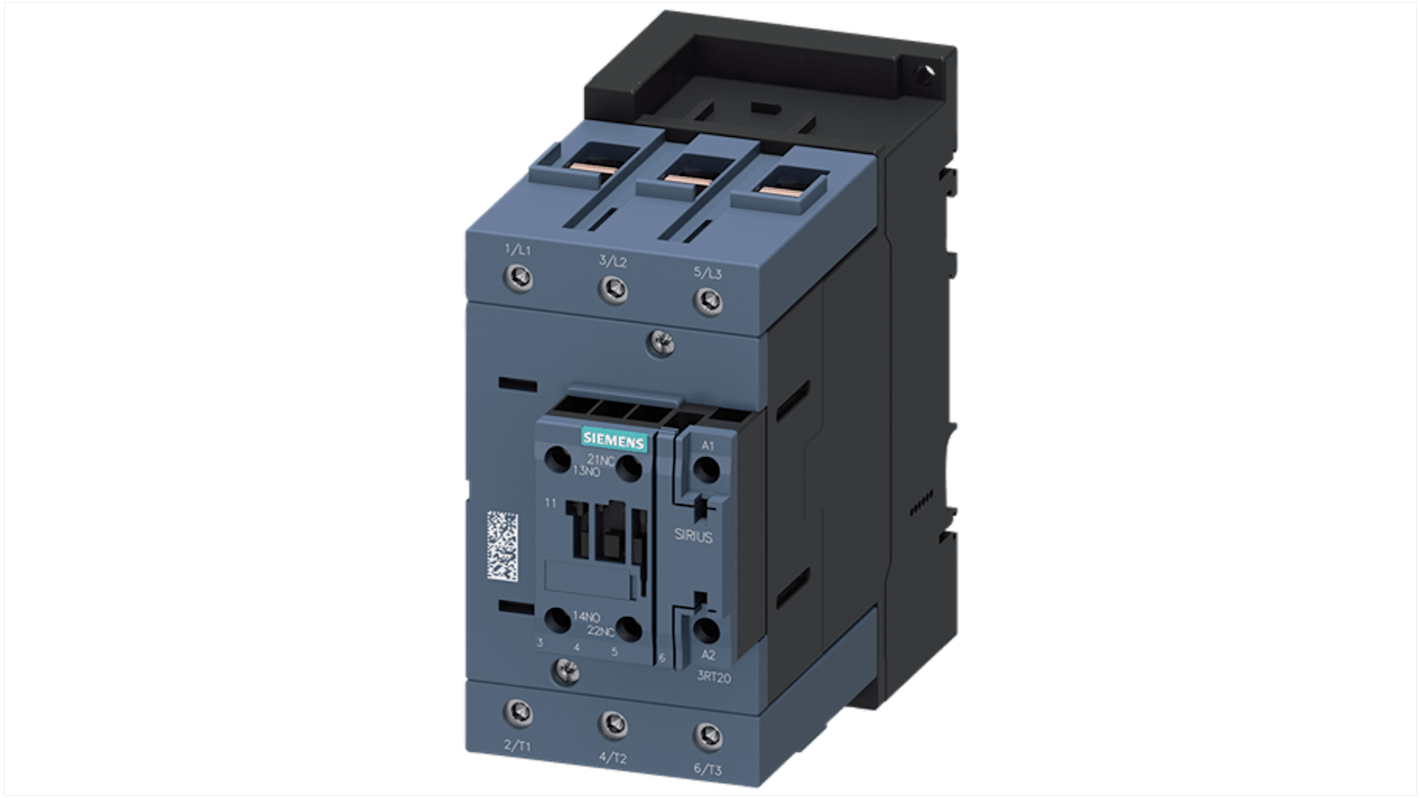

Siemens 3RT24 Contactor, 24V ac Coil, 3-Pole, 160 A, 110 kW 24V ac, 1 NO/1 NC, 690V
- RS Stock No.:
- 154-529
- Mfr. Part No.:
- 3RT2448-1AB00
- Brand:
- Siemens
Subtotal (1 unit)*
£360.82
(exc. VAT)
£432.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £360.82 |
*price indicative
- RS Stock No.:
- 154-529
- Mfr. Part No.:
- 3RT2448-1AB00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 24V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 160A | |
| Series | 3RT24 | |
| Power Rating | 110kW | |
| Mount Type | DIN Rail | |
| Function | Mirror Contact | |
| Normal State Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 24V ac | |
| Operational Current Ie | 160A | |
| Contactor Application | Safety | |
| Maximum Operating Temperature | 60°C | |
| Depth | 152mm | |
| Standards/Approvals | UL, CCC, CE, CSA, DNV, EAC, IEC 60529, IEC 60947-4-1, IEC61508, IP20, RCM, RMRS, UKCA | |
| Length | 140mm | |
| Width | 70mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 24V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 160A | ||
Series 3RT24 | ||
Power Rating 110kW | ||
Mount Type DIN Rail | ||
Function Mirror Contact | ||
Normal State Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 24V ac | ||
Operational Current Ie 160A | ||
Contactor Application Safety | ||
Maximum Operating Temperature 60°C | ||
Depth 152mm | ||
Standards/Approvals UL, CCC, CE, CSA, DNV, EAC, IEC 60529, IEC 60947-4-1, IEC61508, IP20, RCM, RMRS, UKCA | ||
Length 140mm | ||
Width 70mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- DE
The Siemens contactor is designed for high-performance control in industrial applications, providing robust switching capabilities under demanding conditions. With a rated operational current of 160 A at up to 690 V, it excels in AC-1 and AC-3 applications. Its compact S3 size enhances versatility for installation, while multiple auxiliary contacts offer expanded functionality. Ideal for environments with varying ambient temperatures, this product ensures reliability and efficiency in power distribution systems. Built to withstand challenging conditions, the contactor features high insulation voltage and impressive surge voltage resistance, making it suitable for a range of applications. Additionally, its long mechanical service life guarantees lasting performance.
Durable industrial design
High insulation and surge voltage resistance
Easy DIN rail installation
Smooth operation across temperature ranges
Multiple auxiliary contacts
