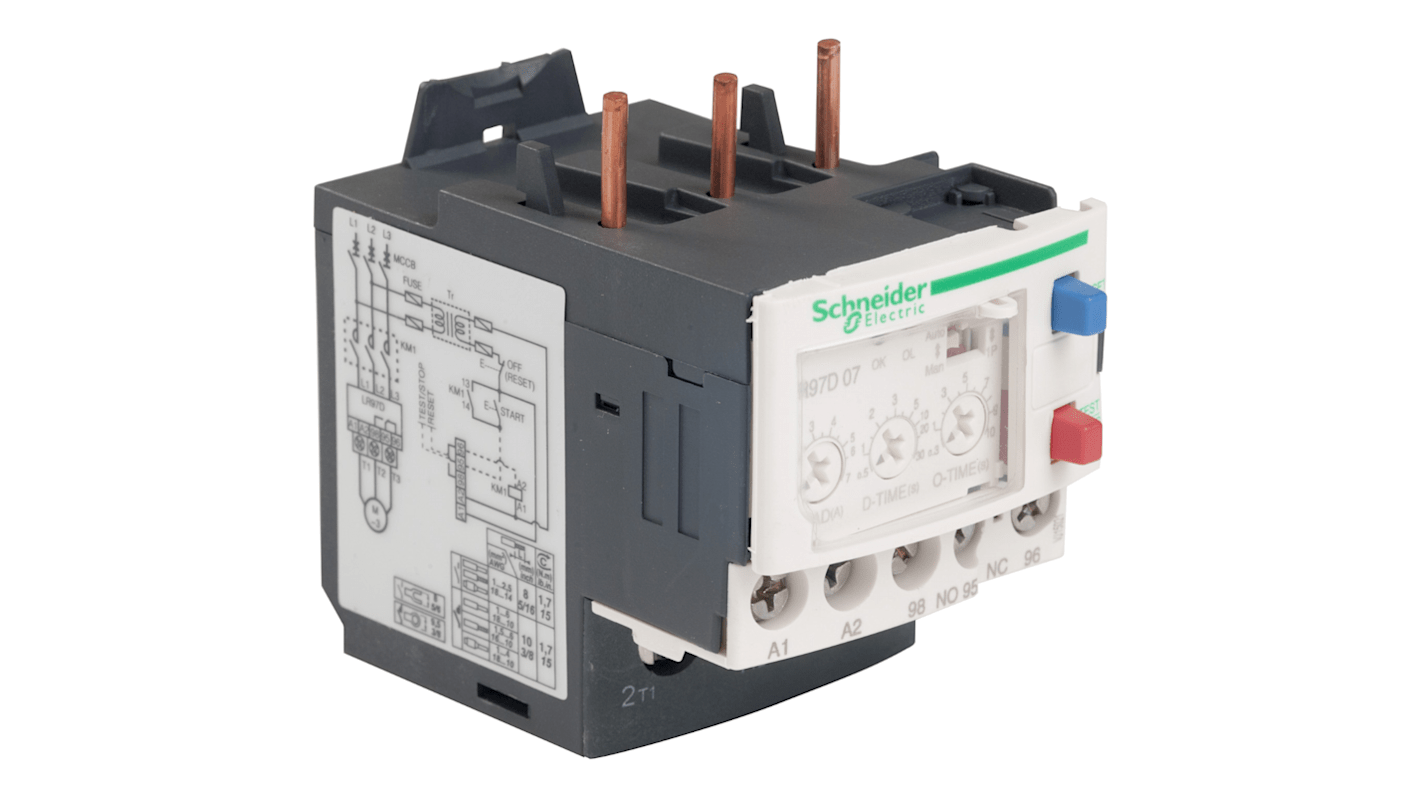

Schneider Electric LR97 D Overload Relay 1NO + 1NC, 1.2 → 7 A F.L.C, 7 A Contact Rating, 55 W, TeSys
- RS Stock No.:
- 542-2477
- Mfr. Part No.:
- LR97D07M7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£102.78
(exc. VAT)
£123.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 03 November 2025
- Plus 1 unit(s) shipping from 03 November 2025
- Plus 8 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £102.78 |
*price indicative
- RS Stock No.:
- 542-2477
- Mfr. Part No.:
- LR97D07M7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| FLC Motor Rating | 1.2 → 7 A | |
| Contact Current Rating | 7 A | |
| Range | TeSys | |
| Series | LR97 D | |
| Mounting Style | Direct Contactor | |
| Power Rating | 55 W | |
| Normal State Configuration | 1NO + 1NC | |
| Reset Method | Automatic, Manual | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Number Of Auxiliary Contacts | 2 | |
| Length | 64.5mm | |
| Depth | 67.5mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +60°C | |
| Operating Temperature Range | -25 → +60 °C | |
| Supply Voltage | 200 → 240 V ac | |
| Contact Voltage Rating | 690 V ac | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
FLC Motor Rating 1.2 → 7 A | ||
Contact Current Rating 7 A | ||
Range TeSys | ||
Series LR97 D | ||
Mounting Style Direct Contactor | ||
Power Rating 55 W | ||
Normal State Configuration 1NO + 1NC | ||
Reset Method Automatic, Manual | ||
Terminal Type Screw | ||
Width 45mm | ||
Number Of Auxiliary Contacts 2 | ||
Length 64.5mm | ||
Depth 67.5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Operating Temperature Range -25 → +60 °C | ||
Supply Voltage 200 → 240 V ac | ||
Contact Voltage Rating 690 V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- KR
LR97 D Electronic Overcurrent Relays
Suitable for machine protection requirements where machinery may be subject to difficult starting, jamming, high resistive torque/high inertia and/or mechanical failure
1 N/O and 1 N/C contact
LED status indication: Voltage, Starting, Steady State, Overload, Trip
Trip status monitored: Over-Current, Rotor Locked, Phase Failure (L1, L2, L3)
Manual or automatic reset
H 64.5mm x W 45mm x D 67.5mm
1 N/O and 1 N/C contact
LED status indication: Voltage, Starting, Steady State, Overload, Trip
Trip status monitored: Over-Current, Rotor Locked, Phase Failure (L1, L2, L3)
Manual or automatic reset
H 64.5mm x W 45mm x D 67.5mm
Note
Current range (A) refers to the relay setting range. To allow for tripping sensitivity, the useable current range will be less than the maximum value quoted. Please refer to the manufacturer’s data sheet for specific product information.
