ABB TA42 Overload Relay 1NO/1NC, 0.3 → 1 A F.L.C, 1 A Contact Rating, 3P, AF Range
- RS Stock No.:
- 482-7411
- Mfr. Part No.:
- 1SAX111201R0002
- Brand:
- ABB

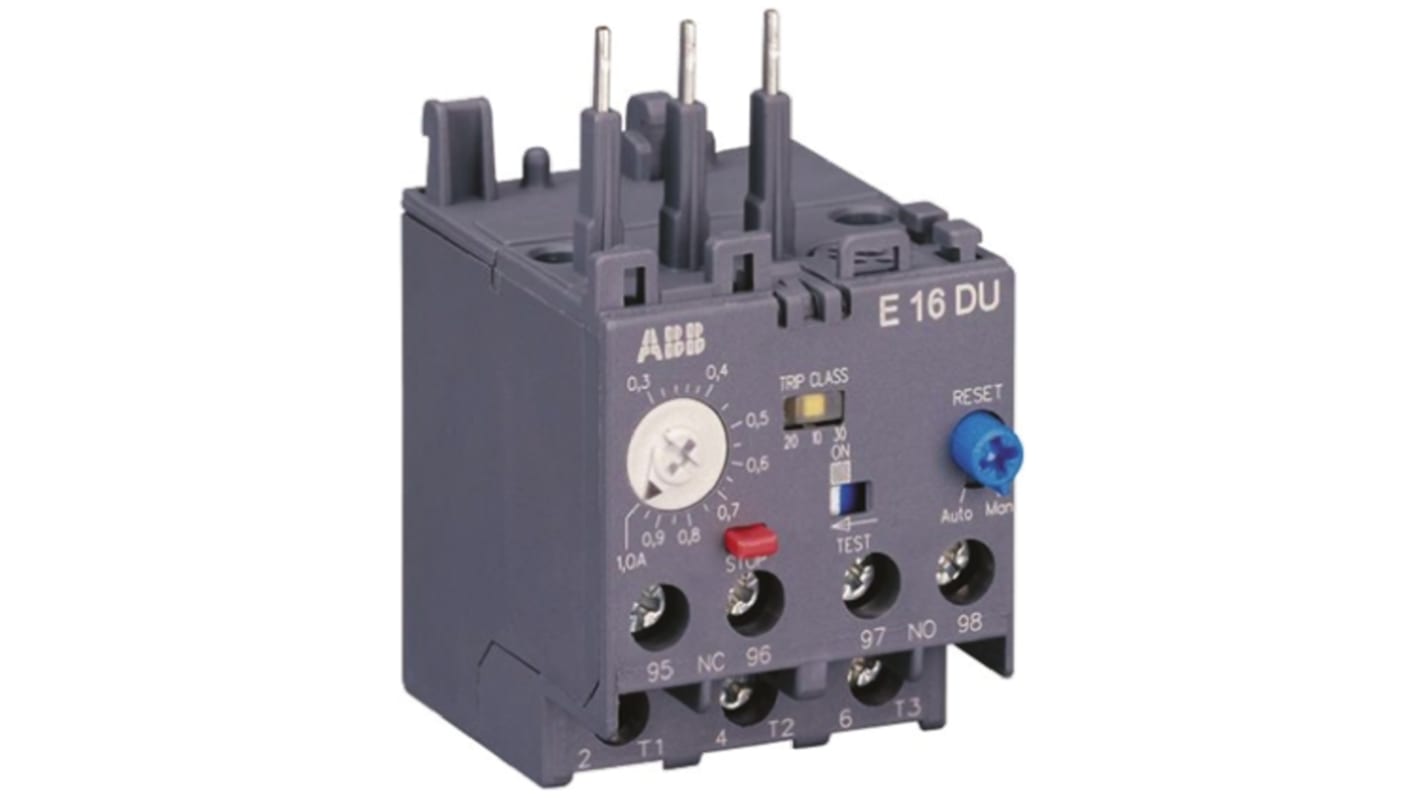

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£100.84
(exc. VAT)
£121.01
(inc. VAT)
- RS Stock No.:
- 482-7411
- Mfr. Part No.:
- 1SAX111201R0002
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| FLC Motor Rating | 0.3 → 1 A | |
| Contact Current Rating | 1 A | |
| Range | AF Range | |
| Pole Configuration | 3P | |
| Series | TA42 | |
| Mounting Style | Clip On | |
| Normal State Configuration | 1NO/1NC | |
| Reset Method | Automatic, Manual | |
| Terminal Type | Screw | |
| Number Of Auxiliary Contacts | 2 | |
| Width | 44.4mm | |
| Depth | 57mm | |
| Length | 74.6mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +70 °C | |
| Contact Voltage Rating | 690 V ac | |
Select all | ||
|---|---|---|
Brand ABB | ||
FLC Motor Rating 0.3 → 1 A | ||
Contact Current Rating 1 A | ||
Range AF Range | ||
Pole Configuration 3P | ||
Series TA42 | ||
Mounting Style Clip On | ||
Normal State Configuration 1NO/1NC | ||
Reset Method Automatic, Manual | ||
Terminal Type Screw | ||
Number Of Auxiliary Contacts 2 | ||
Width 44.4mm | ||
Depth 57mm | ||
Length 74.6mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +70 °C | ||
Contact Voltage Rating 690 V ac | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
