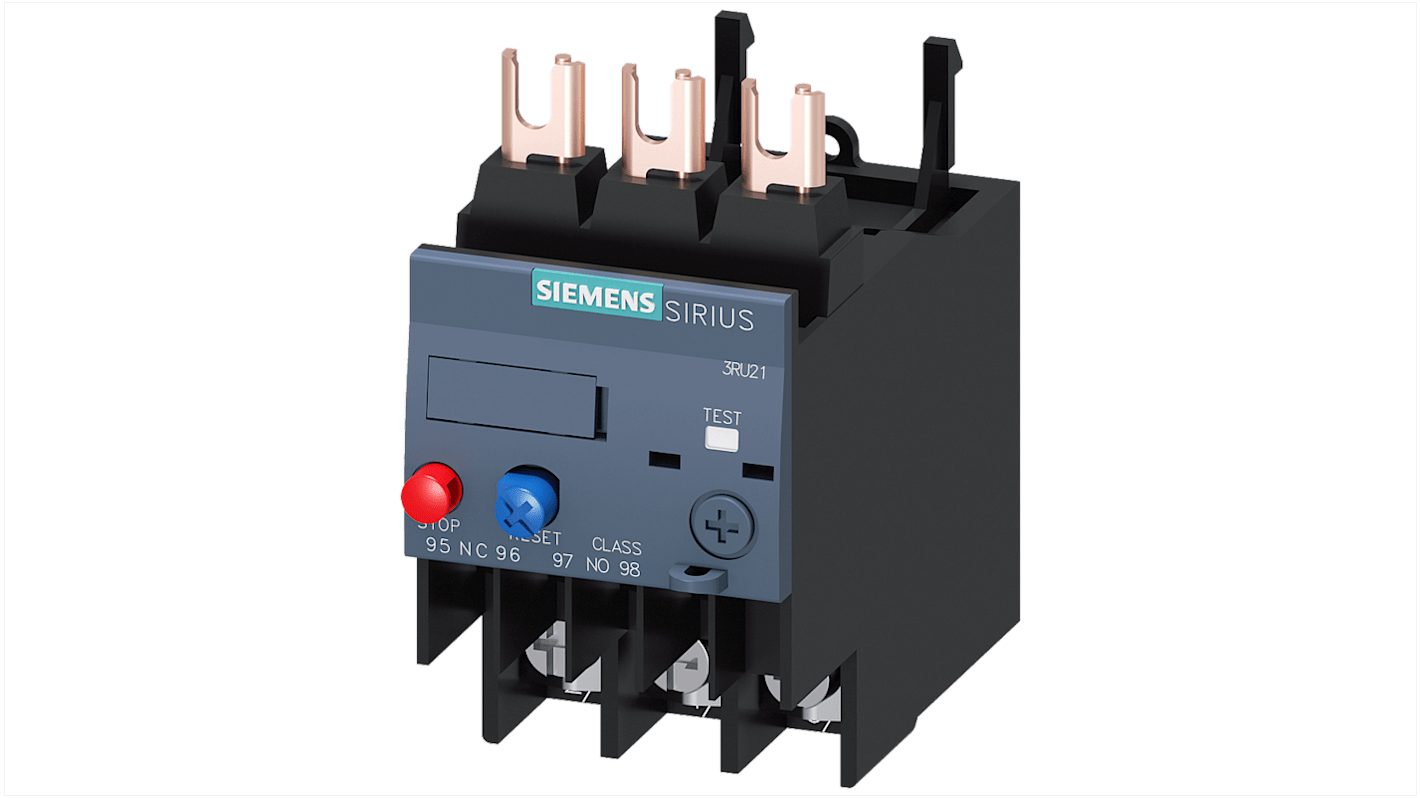

Siemens, SIRIUS 3RU2 Thermal Overload Relay 1 NO/1 NC, 12.5A F.L.C, 3A Contact Rating, 7.5 kW, 230V 3P
- RS Stock No.:
- 252-3344
- Mfr. Part No.:
- 3RU21361KD0
- Brand:
- Siemens
Subtotal (1 unit)*
£57.30
(exc. VAT)
£68.76
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.30 |
*price indicative
- RS Stock No.:
- 252-3344
- Mfr. Part No.:
- 3RU21361KD0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 12.5A | |
| Relay Contact Current | 3A | |
| Mount Type | Contactor Mount | |
| Series | SIRIUS 3RU2 | |
| Pole and Throw Configuration | 3P | |
| Power Rating | 7.5kW | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Spring Terminal | |
| IP Rating | IP00, IP20 | |
| Reset Method | Automatic & Manual | |
| Width | 55mm | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 10 to 12 A | |
| Maximum Operating Temperature | 60°C | |
| Length | 105mm | |
| Contact Voltage | 1000V | |
| Depth | 155mm | |
| Standards/Approvals | CCC, CE, CSA, EAC, RCM | |
| Supply Voltage | 1000V | |
| Control Voltage | 230V | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 12.5A | ||
Relay Contact Current 3A | ||
Mount Type Contactor Mount | ||
Series SIRIUS 3RU2 | ||
Pole and Throw Configuration 3P | ||
Power Rating 7.5kW | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Spring Terminal | ||
IP Rating IP00, IP20 | ||
Reset Method Automatic & Manual | ||
Width 55mm | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 10 to 12 A | ||
Maximum Operating Temperature 60°C | ||
Length 105mm | ||
Contact Voltage 1000V | ||
Depth 155mm | ||
Standards/Approvals CCC, CE, CSA, EAC, RCM | ||
Supply Voltage 1000V | ||
Control Voltage 230V | ||
- COO (Country of Origin):
- DE
The Siemens Overload relay is used for motor protection , relay have current capacity of 9 to 12.5A. The relay is available in size S2, it is class10 contactor mounting main circuit, screw terminal auxiliary circuit and it is a spring type terminal manual-automatic-reset device.
Surge voltage resistance rated value of 6 kV
Shock resistance 8g / 11 ms
Operating frequency rated value 50 to 60 Hz
Power loss: 7.5 W
