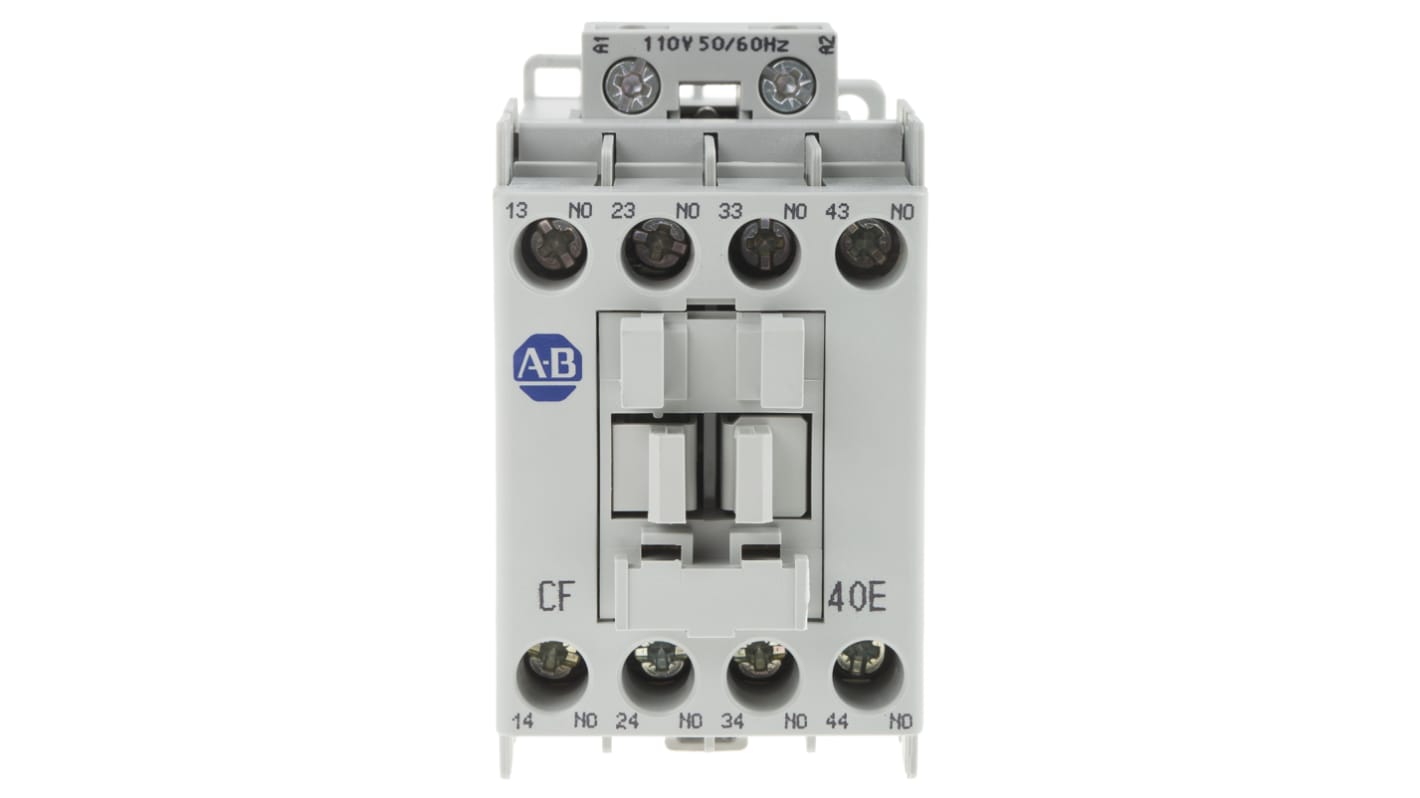

Allen Bradley 700C Contactor Relay 4NO, 10 A Contact Rating, 700 Series
- RS Stock No.:
- 238-0948
- Mfr. Part No.:
- 700-CF400KD
- Brand:
- Allen Bradley
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 238-0948
- Mfr. Part No.:
- 700-CF400KD
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Contact Current Rating | 10 A | |
| Range | 700 Series | |
| Series | 700C | |
| Normal State Configuration | 4NO | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Depth | 80.5mm | |
| Length | 81mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -50°C | |
| Coil Voltage | 110 V ac | |
| Contact Voltage Rating | 400 V ac | |
Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Contact Current Rating 10 A | ||
Range 700 Series | ||
Series 700C | ||
Normal State Configuration 4NO | ||
Terminal Type Screw | ||
Width 45mm | ||
Depth 80.5mm | ||
Length 81mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -50°C | ||
Coil Voltage 110 V ac | ||
Contact Voltage Rating 400 V ac | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CH
Allen Bradley AC Control Relays 700-C Series
Ensure maximum protection for your motor control application with the 700C series of IEC Control Relays by Allen Bradley.
These devices are ideally suited for demanding industrial applications due to provided features such as timing options, extended contact life, and mechanically linked contacts. They use the same accessories as the 100-C contactors, enabling you to easily customise your motor control application. They also offer simple installation via DIN rail or surface mounting. The IEC design ensures that these control relays meet high international standards for quality and safety, and they also have IP2X finger protection.
Contact Rating: 25A (AC1)
Max. Rated Voltage: 690V
Dimensions: H 80.5mm, W 45mm, D 81mm
Max. Rated Voltage: 690V
Dimensions: H 80.5mm, W 45mm, D 81mm
Features and Benefits:
• IEC industrial relays
• High contact reliability
• 4-…10 Poles
• Switch up to 690V AC and DC
• Mechanically linked contact performance per IEC 60947-5-1
• Electronic and Pneumatic Timing Modules
• Environmentally friendly materials
• Space-saving coil modules
• Gold plated, bifurcated version for low level switching applications
• High contact reliability
• 4-…10 Poles
• Switch up to 690V AC and DC
• Mechanically linked contact performance per IEC 60947-5-1
• Electronic and Pneumatic Timing Modules
• Environmentally friendly materials
• Space-saving coil modules
• Gold plated, bifurcated version for low level switching applications
Certifications:
CCC Certified
CE Marked
cULus Listed — File No. E14840; Guide Nos. NKCR/NKCR7
CE Marked
cULus Listed — File No. E14840; Guide Nos. NKCR/NKCR7
Standards:
CSA C22.2 No. 14
EN/IEC 60947-1, -5-1
Meets the material restrictions for European Directive 2002/95/EC - EU-RoHS
UL 508
EN/IEC 60947-1, -5-1
Meets the material restrictions for European Directive 2002/95/EC - EU-RoHS
UL 508
