Schneider Electric, TeSys SK Control Relay 2 NO, 10A F.L.C, 10A Contact Rating, 4.2 VA, 230V ac
- RS Stock No.:
- 188-4726
- Mfr. Part No.:
- CA2SK20P7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£36.71
(exc. VAT)
£44.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.71 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 188-4726
- Mfr. Part No.:
- CA2SK20P7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Control Relay | |
| FLC Motor Rating | 10A | |
| Relay Contact Current | 10A | |
| Mount Type | DIN Rail | |
| Series | TeSys SK | |
| Power Rating | 4.2VA | |
| Terminal Type | Screw Clamp | |
| Normal State Configuration | 2 NO | |
| IP Rating | IP2X | |
| Minimum Operating Temperature | -20°C | |
| Width | 27mm | |
| Number of Auxiliary Contacts | 2 | |
| Contact Voltage | 690V ac | |
| Maximum Operating Temperature | 50°C | |
| Length | 56mm | |
| Standards/Approvals | UL 60947-5-1, UKCA, EN/IEC 60947-5-1, EAC, cULus, CSA C22.2 No 60947-5-1, CE, CB scheme | |
| Depth | 55.5mm | |
| Better World Product | Yes | |
| Control Voltage | 230V ac | |
| Supply Voltage | 690V ac | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Control Relay | ||
FLC Motor Rating 10A | ||
Relay Contact Current 10A | ||
Mount Type DIN Rail | ||
Series TeSys SK | ||
Power Rating 4.2VA | ||
Terminal Type Screw Clamp | ||
Normal State Configuration 2 NO | ||
IP Rating IP2X | ||
Minimum Operating Temperature -20°C | ||
Width 27mm | ||
Number of Auxiliary Contacts 2 | ||
Contact Voltage 690V ac | ||
Maximum Operating Temperature 50°C | ||
Length 56mm | ||
Standards/Approvals UL 60947-5-1, UKCA, EN/IEC 60947-5-1, EAC, cULus, CSA C22.2 No 60947-5-1, CE, CB scheme | ||
Depth 55.5mm | ||
Better World Product Yes | ||
Control Voltage 230V ac | ||
Supply Voltage 690V ac | ||

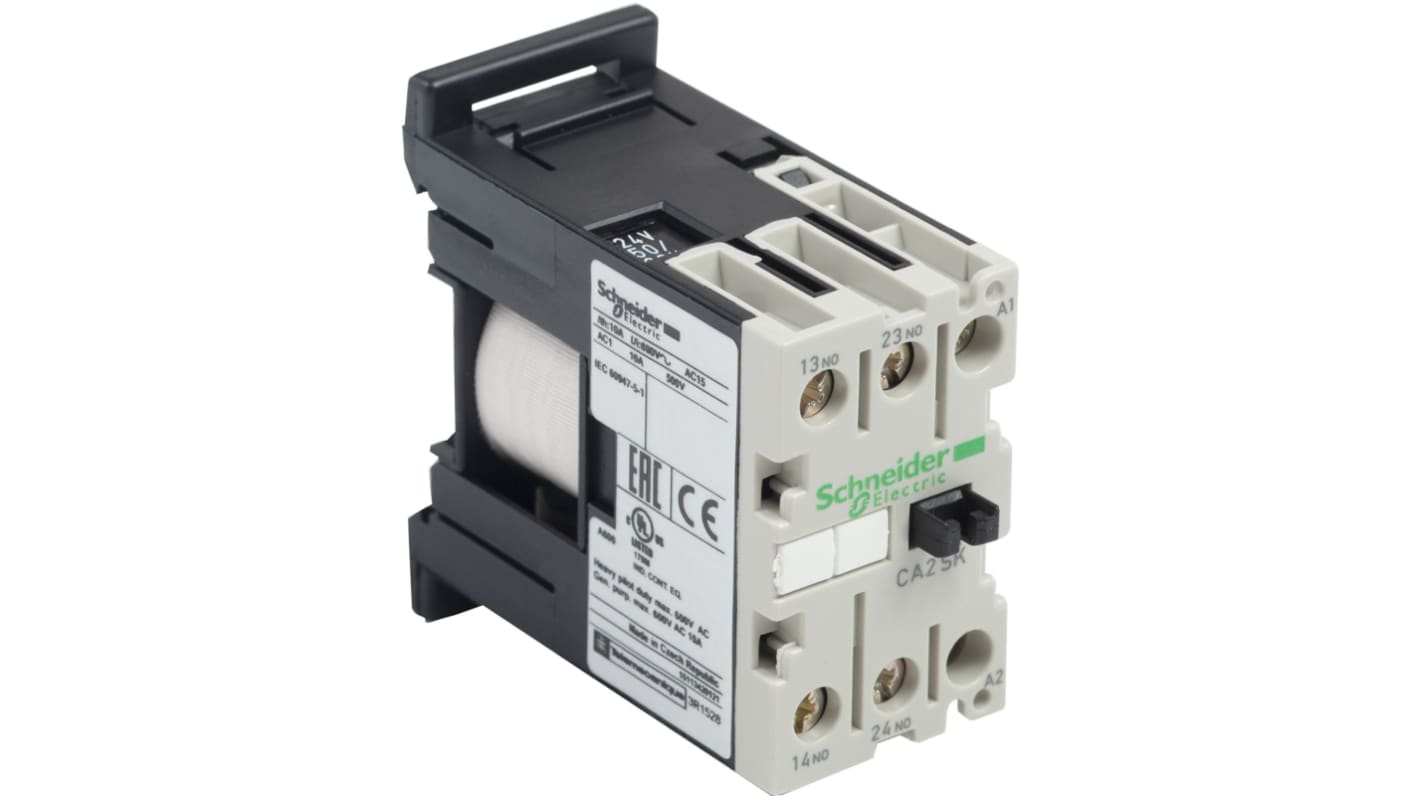

Schneider Electric TeSys SK Series Control Relay, 10A Relay Contact Current, 230V Control Voltage - CA2SK20P7
This control relay provides AC-operated switching for control circuits in industrial automation, offering two normally open contacts and a 230V control Coil for reliable circuit control up to high voltages. It is intended for rail or plate mounting and designed to integrate into machine control panels and electrical distribution assemblies where compact, serviceable relay switching is required.
Features & Benefits
• 10A conventional thermal current for moderate load handling
• 690V rated insulation voltage for high-voltage system compatibility
• Screw clamp terminals supporting 0.35 to 6mm² conductor sizes
• 6 to 14 MS operating times for prompt switching response
• Mechanical endurance rated to 10 Mcycles for long service life
• 690V rated insulation voltage for high-voltage system compatibility
• Screw clamp terminals supporting 0.35 to 6mm² conductor sizes
• 6 to 14 MS operating times for prompt switching response
• Mechanical endurance rated to 10 Mcycles for long service life
Applications
• Suitable for control circuit switching in motor starters and contactors
• Used for PLC output isolation in industrial control panels
• Ideal for interlock and sequencing functions in automation systems
• Can be used with distribution units requiring Compact auxiliary relays
• Used for PLC output isolation in industrial control panels
• Ideal for interlock and sequencing functions in automation systems
• Can be used with distribution units requiring Compact auxiliary relays
What Terminal connections are supported for flexible conductors?
Screw clamp terminals accept flexible conductors with or without ferrules from 0.35mm² up to 6mm² depending on single or double conductor arrangements.
How does the device perform thermally and electrically under normal use?
It is specified for a conventional free-air thermal current of 10A at 55 °C and a recommended associated fuse rating of 10A gL for circuit protection.
What are the Coil power characteristics during energisation and hold-in?
Inrush power is 16 VA at 20 °C while hold-in consumption is 4.2 VA at 20 °C, with heat dissipation approximately 1.4 W.
Are there environmental or protection considerations for installation?
The relay is rated IP2X for protection against access to hazardous parts and operates in ambient temperatures from -20 to 50 °C.
