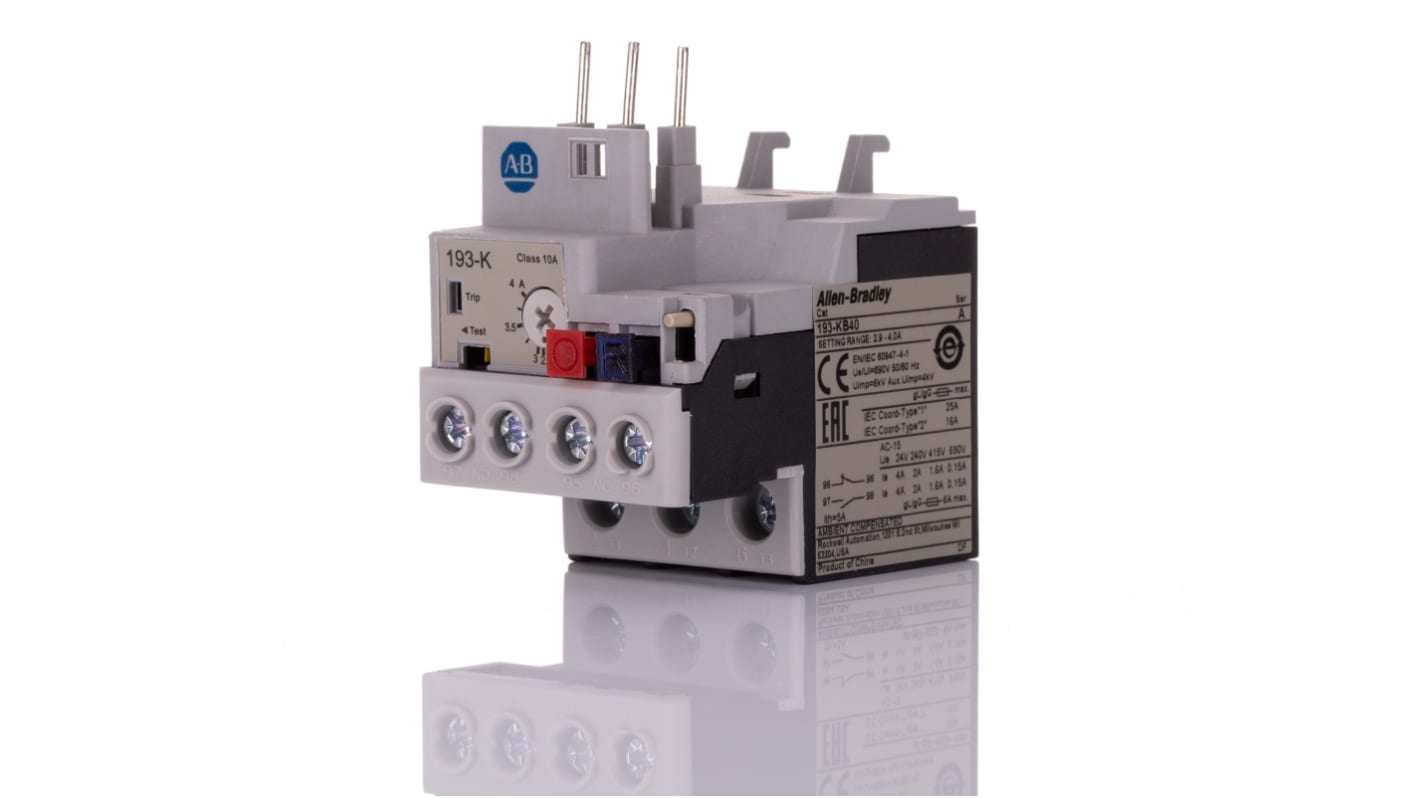

Allen Bradley 193-K Overload Relay 1NO + 1NC, 2.9 → 4 A F.L.C, 4 A Contact Rating, 6 W, 690 Vac, Bulletin
- RS Stock No.:
- 502-339
- Mfr. Part No.:
- 193-KB40
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£33.69
(exc. VAT)
£40.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 10 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.69 |
*price indicative
- RS Stock No.:
- 502-339
- Mfr. Part No.:
- 193-KB40
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| FLC Motor Rating | 2.9 → 4 A | |
| Contact Current Rating | 4 A | |
| Range | Bulletin | |
| Series | 193-K | |
| Mounting Style | Clip On | |
| Power Rating | 6 W | |
| Normal State Configuration | 1NO + 1NC | |
| Reset Method | Automatic, Manual | |
| Terminal Type | Screw | |
| Number Of Auxiliary Contacts | 2 | |
| Width | 44.9mm | |
| Length | 50mm | |
| Depth | 78.7mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Operating Temperature Range | -20 → +60 °C | |
| Control Voltage | 690 Vac | |
| Contact Voltage Rating | 690 V ac | |
Select all | ||
|---|---|---|
Brand Allen Bradley | ||
FLC Motor Rating 2.9 → 4 A | ||
Contact Current Rating 4 A | ||
Range Bulletin | ||
Series 193-K | ||
Mounting Style Clip On | ||
Power Rating 6 W | ||
Normal State Configuration 1NO + 1NC | ||
Reset Method Automatic, Manual | ||
Terminal Type Screw | ||
Number Of Auxiliary Contacts 2 | ||
Width 44.9mm | ||
Length 50mm | ||
Depth 78.7mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Operating Temperature Range -20 → +60 °C | ||
Control Voltage 690 Vac | ||
Contact Voltage Rating 690 V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
193-K Miniature Bi-metallic Overload Relay
Protects motor against overload and phase loss
Trip class 10
Auxiliary switch 1N/O and 1N/C
Stable, shock-resistant direct mounting on 100-K contactor
Built in trip contact 95//96 and signal contact 97//98
Auto/manual reset selectable on device
visible trip indication
Test/trip actuator
Stop actuator
Trip class 10
Auxiliary switch 1N/O and 1N/C
Stable, shock-resistant direct mounting on 100-K contactor
Built in trip contact 95//96 and signal contact 97//98
Auto/manual reset selectable on device
visible trip indication
Test/trip actuator
Stop actuator
Allen Bradley Overload Relay, 4A Current Rating, 2 Auxiliary Contacts - 193-KB40
Keep your motor running efficiently and safely with this overload relay from Rockwell Automation's Allen Bradley range. The bimetallic device protects attached equipment from overload current and phase loss, preventing damage caused by overheating. It clips onto a contactor from the 100-K series to make a stable and shock-resistant connection. Two auxiliary contacts allow for extra connections to the coil, which makes your wiring easier. You can use this overload relay in applications such as motor starters and motor control centres.
• Operating temperature range of -20°C to +60°C makes it suitable for use in harsh environments
• Screw terminals help you make secure electrical connections that won't be dislodged by vibration
• Choice of automatic or manual reset for flexible use
• Screw terminals help you make secure electrical connections that won't be dislodged by vibration
• Choice of automatic or manual reset for flexible use
Standards and Certifications
• IEC/EN 60947-1,-4-1,-5-1
• UL 508
• CSA 22.2. No. 14
• CE Marked
• cULus Listed (File No. E33916, Guide NKCR, NKCR7)
• UL 508
• CSA 22.2. No. 14
• CE Marked
• cULus Listed (File No. E33916, Guide NKCR, NKCR7)
How does a bimetallic overload relay work?
A bimetallic overload relay like this one includes a strip made of two metals that expand at different rates when heated. Current flows through this strip, and when it exceeds a set value the metals bend, breaking the circuit to shut off the supply to the contactor coil.
