Schneider Electric TeSyS CA Control Relay 3NO/2NC, 10 A Contact Rating, 72 V, CAD326
- RS Stock No.:
- 428-761
- Mfr. Part No.:
- CAD326SDS207
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£162.90
(exc. VAT)
£195.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.90 |
*price indicative
- RS Stock No.:
- 428-761
- Mfr. Part No.:
- CAD326SDS207
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Contact Current Rating | 10 A | |
| Range | CAD326 | |
| Series | TeSyS CA | |
| Normal State Configuration | 3NO/2NC | |
| Control Voltage | 72 V | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Contact Current Rating 10 A | ||
Range CAD326 | ||
Series TeSyS CA | ||
Normal State Configuration 3NO/2NC | ||
Control Voltage 72 V | ||
- COO (Country of Origin):
- FR

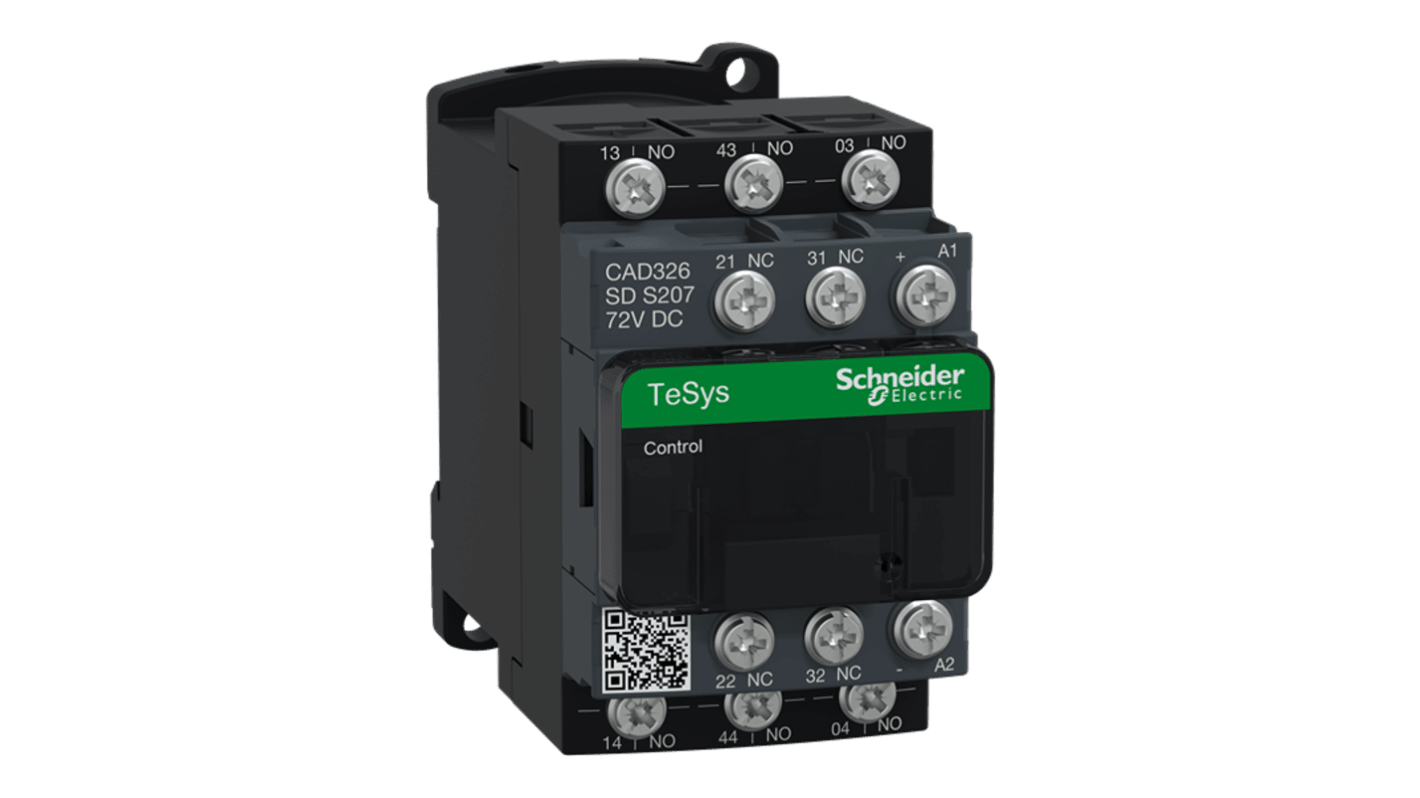

The Schneider Electric Control relay is designed for control circuit applications. It features a pole contact composition of 3 NO and 2 NC for flexible switching options. The relay operates at a rated operational voltage of up to 690 V AC with a frequency range of 25 to 400 Hz. The control circuit voltage is 72 V DC, and it uses coil technology with an integral suppression device for improved reliability and reduced noise. The relay has a rated impulse withstand voltage of 6 kV, conforming to IEC 60947 standards.
RoHS compliant
Mercury free
Flame resistance
IP20 front face conforming to IEC 60529
Mercury free
Flame resistance
IP20 front face conforming to IEC 60529
