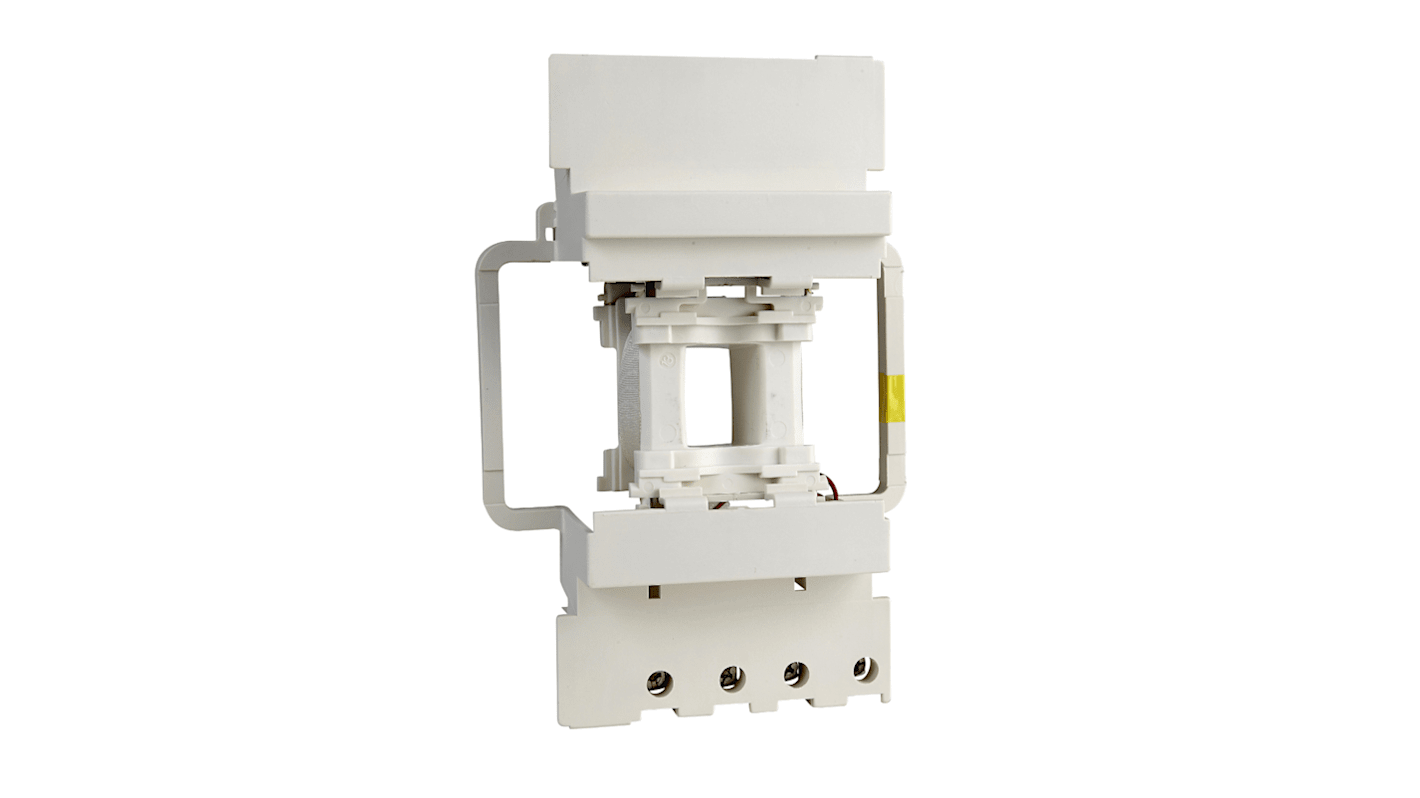

Schneider Electric Contactor Coil for use with LC1 Series

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CZ
Product Details

3 Pole Contactors, DC Controlled

Built-in coil suppression
3 N/O poles
Auxiliary contact configuration one N/O, one N/C
Operating time closing 12 to 22 ms
Operating time opening 4 to 19 ms

Note

Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts.

Approvals

UL and CSA

Specifications
Attribute Value
Accessory Type Coil
For Use With LC1 Series
Series LX1D
1 in stock for FREE next working day delivery
1 available from Europe for delivery within 1 working day(s)
Price Each
£ 93.00
(exc. VAT)
£ 111.60
(inc. VAT)
Units
Per unit
1 - 9
£93.00
10 - 14
£87.42
15 +
£83.72
