Schneider Electric TeSys Contactor Connector for use with Giga Contactor
- RS Stock No.:
- 256-6745
- Mfr. Part No.:
- LX1G4TEHEA
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£6,486.32
(exc. VAT)
£7,783.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6,486.32 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 256-6745
- Mfr. Part No.:
- LX1G4TEHEA
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Accessory Type | Control Module | |
| For Use With | Giga Contactor | |
| Range | TeSys | |
| Timer Range | 0.020 → 0.035s | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Accessory Type Control Module | ||
For Use With Giga Contactor | ||
Range TeSys | ||
Timer Range 0.020 → 0.035s | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- CN

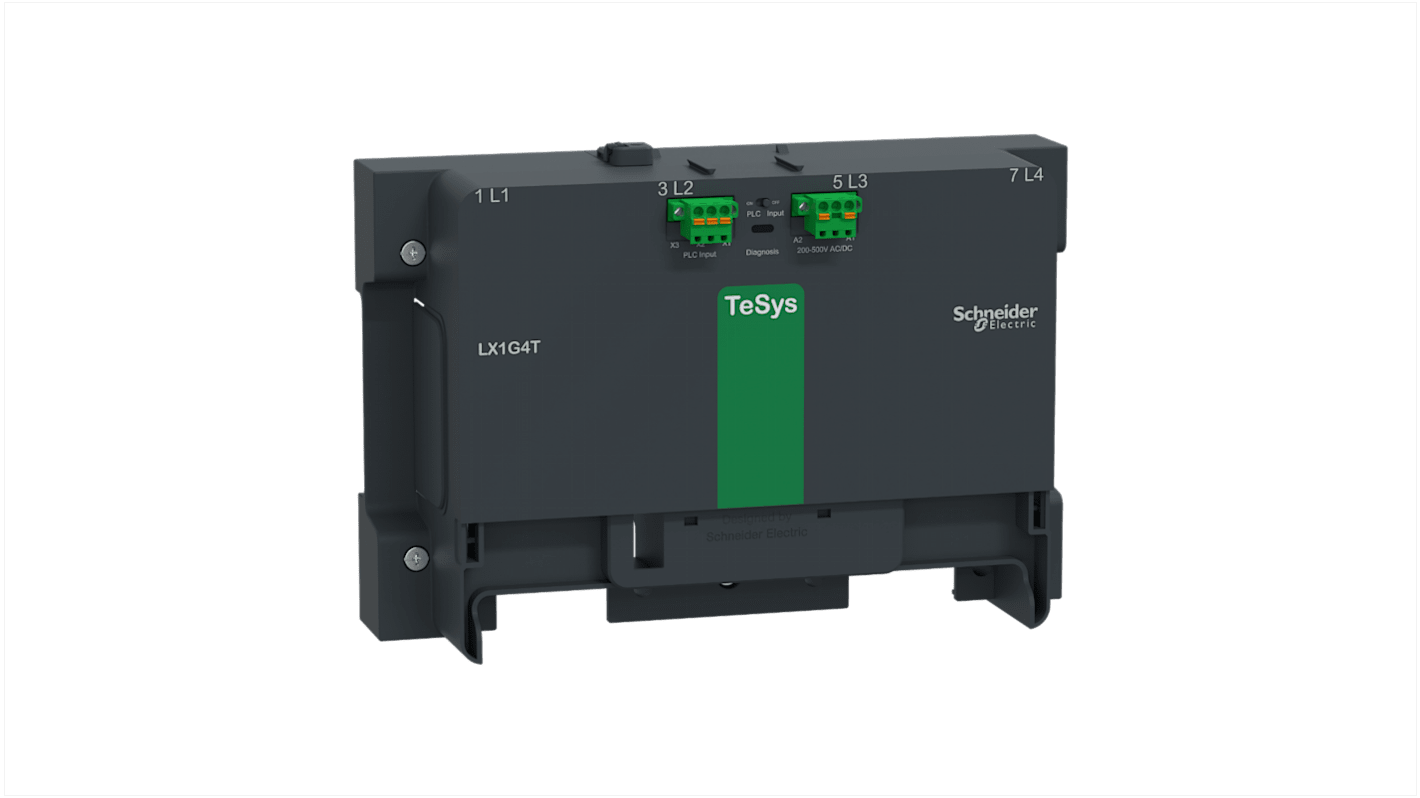

Schneider Electric LX1G4TEHEA
It is a 48-130V AC/DC control module for 4 poles TeSys Giga 630-800 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
The Schneider Electric control module for TeSys giga contactor. Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signalling circuits.
Advanced Version
4 pole
4 pole
