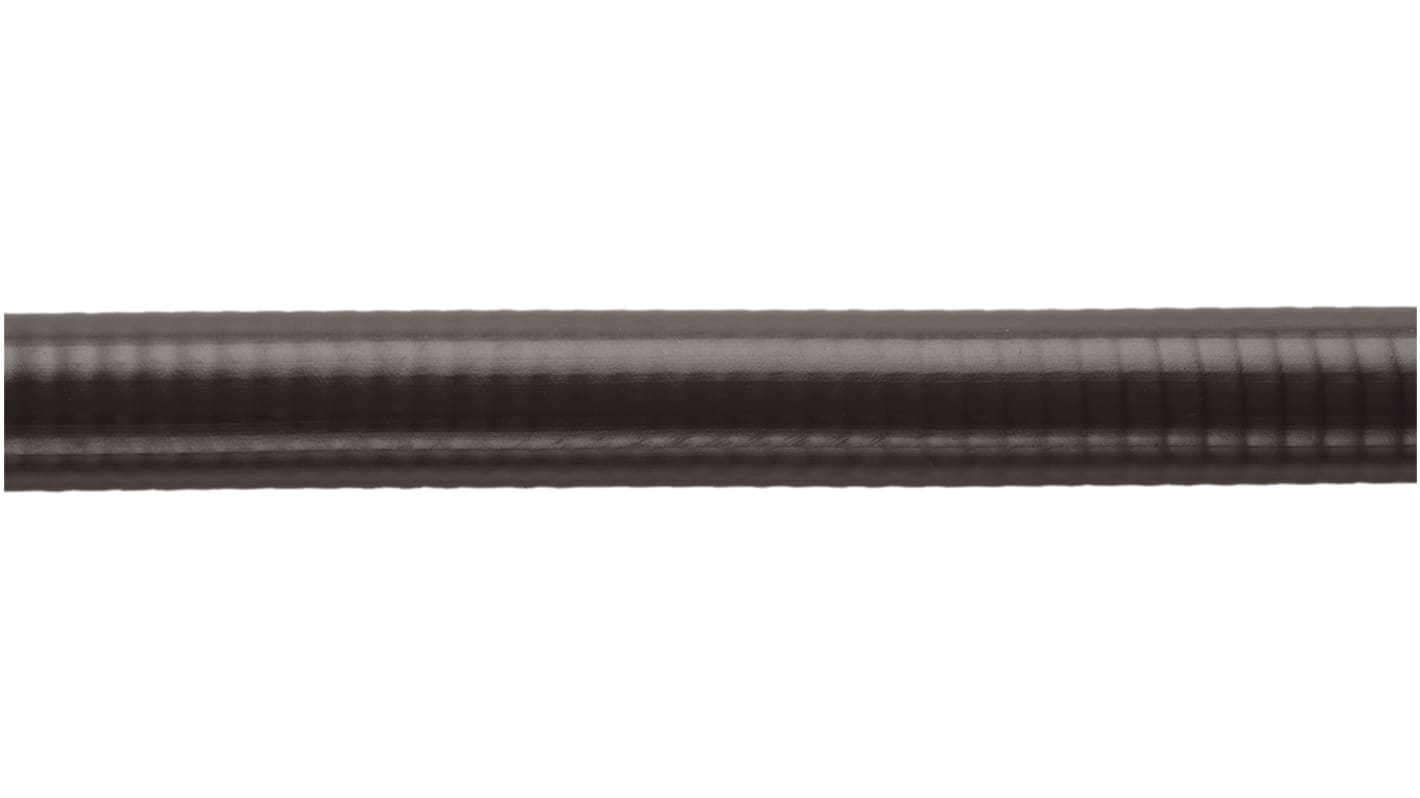

Flexicon Flexible, Liquid Tight Conduit, 25mm Nominal Diameter, Galvanised Steel, Black
- RS Stock No.:
- 872-6044
- Mfr. Part No.:
- LTPPU25B-25M
- Brand:
- Flexicon
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£17.058
(exc. VAT)
£20.47
(inc. VAT)
- RS Stock No.:
- 872-6044
- Mfr. Part No.:
- LTPPU25B-25M
- Brand:
- Flexicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Flexicon | |
| Nominal Diameter | 25mm | |
| Material | Galvanised Steel | |
| Conduit Type | Flexible, Liquid Tight | |
| Series | LTPPU | |
| Outer Diameter | 26.4mm | |
| Colour | Black | |
| Interior Diameter | 21mm | |
| Length | 25m | |
| IP Rating | IP66, IP67, IP68, IP69 | |
| Coating Material | Polyurethane | |
| Maximum Operating Temperature | +105°C | |
| Minimum Bend Radius | 100 mm | |
| Standards Met | CE Compliant, IEC EN 61386, ISO 9001, Lloyds Register of Shipping Type Approval, RoHS Compliant | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Flexicon | ||
Nominal Diameter 25mm | ||
Material Galvanised Steel | ||
Conduit Type Flexible, Liquid Tight | ||
Series LTPPU | ||
Outer Diameter 26.4mm | ||
Colour Black | ||
Interior Diameter 21mm | ||
Length 25m | ||
IP Rating IP66, IP67, IP68, IP69 | ||
Coating Material Polyurethane | ||
Maximum Operating Temperature +105°C | ||
Minimum Bend Radius 100 mm | ||
Standards Met CE Compliant, IEC EN 61386, ISO 9001, Lloyds Register of Shipping Type Approval, RoHS Compliant | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- GB
LTPPU Flexible Conduit, Galvanised Steel, Polyurethane Coated, Liquid Tight
Galvanised helically wound steel flexible conduit with smooth halogen free polyurethane (PU) coating.
Typical applications: where low temperature performance, high abrasion, high fatigue life and liquid tight are requirements.
Typical applications: where low temperature performance, high abrasion, high fatigue life and liquid tight are requirements.
Liquid tight
Galvanised steel
Polyurethane coating; does not wrinkle when bent, wipe clean
Oil and grease resistant
UV resistant and suitable for external use
High abrasion and fatigue life
IP rating: IP66 + IP67 + IP68 (5 bar) + IP69
Temperature range: -40°C to +100°C
Galvanised steel
Polyurethane coating; does not wrinkle when bent, wipe clean
Oil and grease resistant
UV resistant and suitable for external use
High abrasion and fatigue life
IP rating: IP66 + IP67 + IP68 (5 bar) + IP69
Temperature range: -40°C to +100°C
Approvals
CE
BS EN IEC 61386
Underground
REACh
RoHS
BS EN IEC 61386
Underground
REACh
RoHS
Flexicon Flexible Conduit
