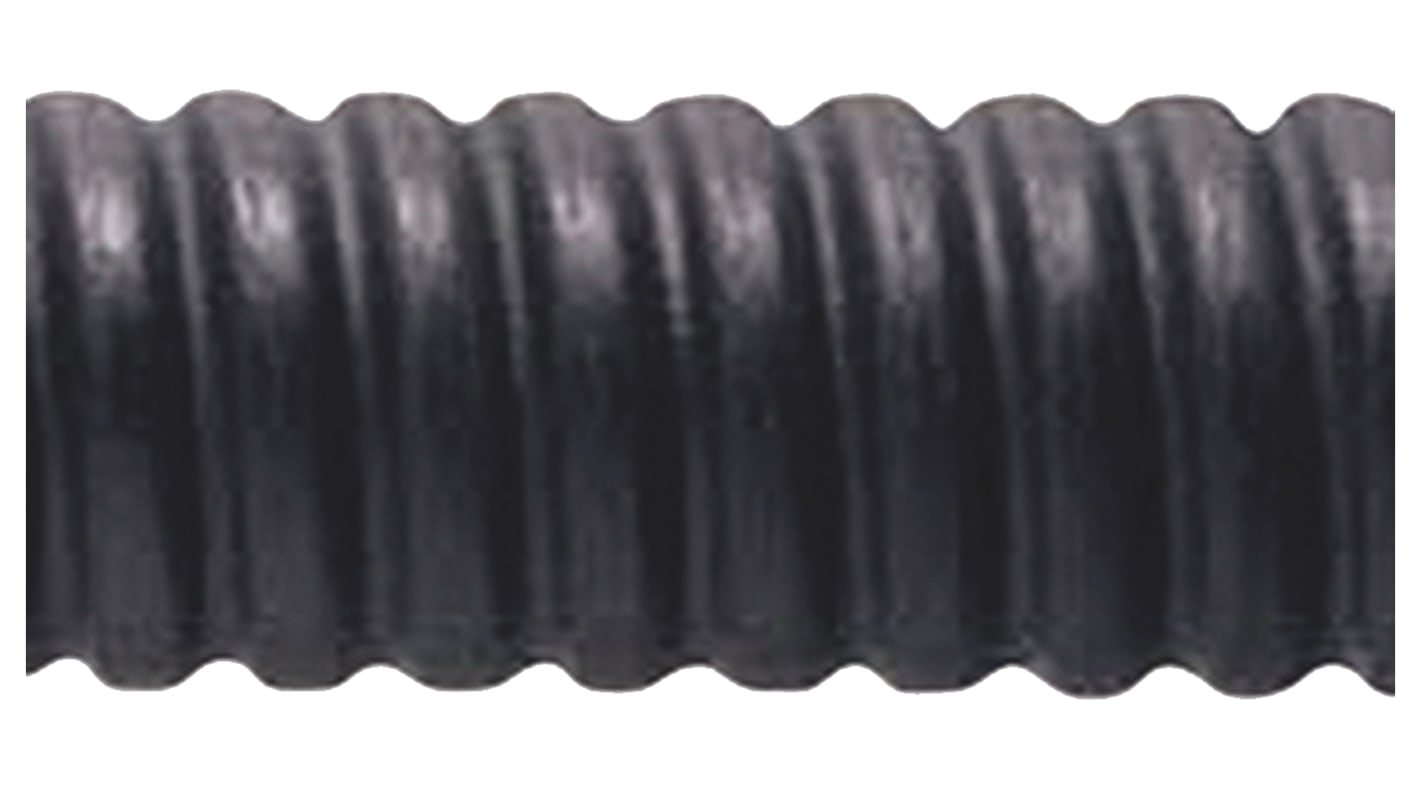

Adaptaflex Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Black
- RS Stock No.:
- 829-0242
- Mfr. Part No.:
- 7TCA296130R0009 LFH-SP20/50M
- Brand:
- Adaptaflex
- RS Stock No.:
- 829-0242
- Mfr. Part No.:
- 7TCA296130R0009 LFH-SP20/50M
- Brand:
- Adaptaflex
Technical Reference
Legislation and Compliance
Product Details
Standard & Low Fire Hazard Conduit
Two types of flexible liquid resistant conduits from Adaptaflex, the standard version is a helically wound galvanised steel strip with a black PVC cover whilst the LFH (Low Fire Hazard) type is Polyolefin covered which has halogen free, flame retardant & low toxicity properties which complement Fire Performance cables where public safety is of concern e.g. Hospitals, Shopping centres, Underground Railways etc.
IP54 or IP65 (dependant on Fitting)
-15°C to +70°C operating temperature, -25°C to +90°C (LFH type)
Non Flame propagating to EN50086
UV resistant
Compression strength 1500N/50mm
Halogen Free (LFH type only)
Low Smoke and Fume (LFH type only)
-15°C to +70°C operating temperature, -25°C to +90°C (LFH type)
Non Flame propagating to EN50086
UV resistant
Compression strength 1500N/50mm
Halogen Free (LFH type only)
Low Smoke and Fume (LFH type only)
Note
The conduit is measured under tension and may be subject to variations in length when relaxed.
Specifications
Attribute | Value |
|---|---|
| Nominal Diameter | 20mm |
| Material | Galvanised Steel |
| Conduit Type | Flexible |
| Outer Diameter | 21.5mm |
| Colour | Black |
| Interior Diameter | 16.9mm |
| Length | 50m |
| IP Rating | IP54, IP65 |
| Coating Material | Low Fire Hazard Polyolefin |
| Maximum Operating Temperature | +105 °C, +90°C |
| Series | LFH-SP |
| Minimum Operating Temperature | -25 °C, -5°C |
| Standards Met | CE Compliant, EN61386-22, Lloyds Register of Shipping Type Approval, London Underground, NF |
| Minimum Bend Radius | 45 mm |
