Flexicon FU Galvanised Steel Flexible Conduit Metal 50mm 25m

  • RS Stock No. 124-0024
  • Mfr. Part No. FU50-25M
  • Brand Flexicon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

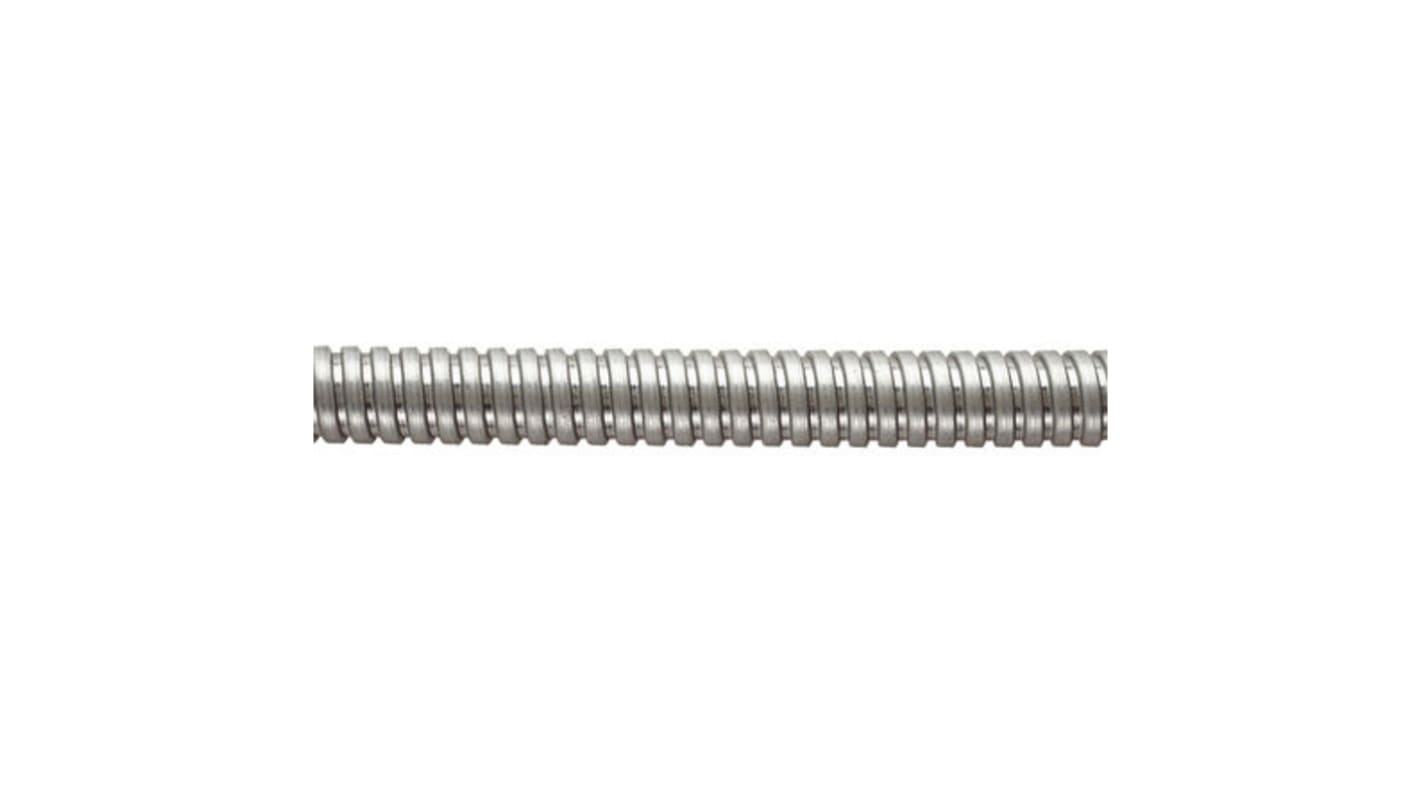

FU Galvanised Steel Conduit

Flexicon FU System galvanised steel, helically wound flexible conduit.

Typical applications include underfloor wiring in office blocks.

High mechanical strength
Highly flexible
Inherently low fire hazard (LFH)
Fully compliant with LUL Standard 1-085 (Cert. No. 296)
Temperature range: -100°C to +300°C
IP rating: IP40
Colour: natural (zinc self colour)

Approvals

CE
BS EN IEC 61386
Underground
REACh
RoHS

Flexicon Flexible Conduit

Specifications
Attribute Value
Nominal Diameter 50mm
Material Galvanised Steel
Conduit Type Flexible
Colour Metal
Outer Diameter 53mm
Interior Diameter 48.4mm
Length 25m
IP Rating IP40
Series FU
Maximum Operating Temperature +300°C
Minimum Operating Temperature -100°C
Minimum Bend Radius 90 mm
6 In stock for FREE next working day delivery
Price 1 Reel of 25 Metre(s)
Was £289.70
£ 274.90
(exc. VAT)
£ 329.88
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 4
£274.90
£10.996
5 - 14
£219.92
£8.797
15 +
£208.92
£8.357
*price indicative
