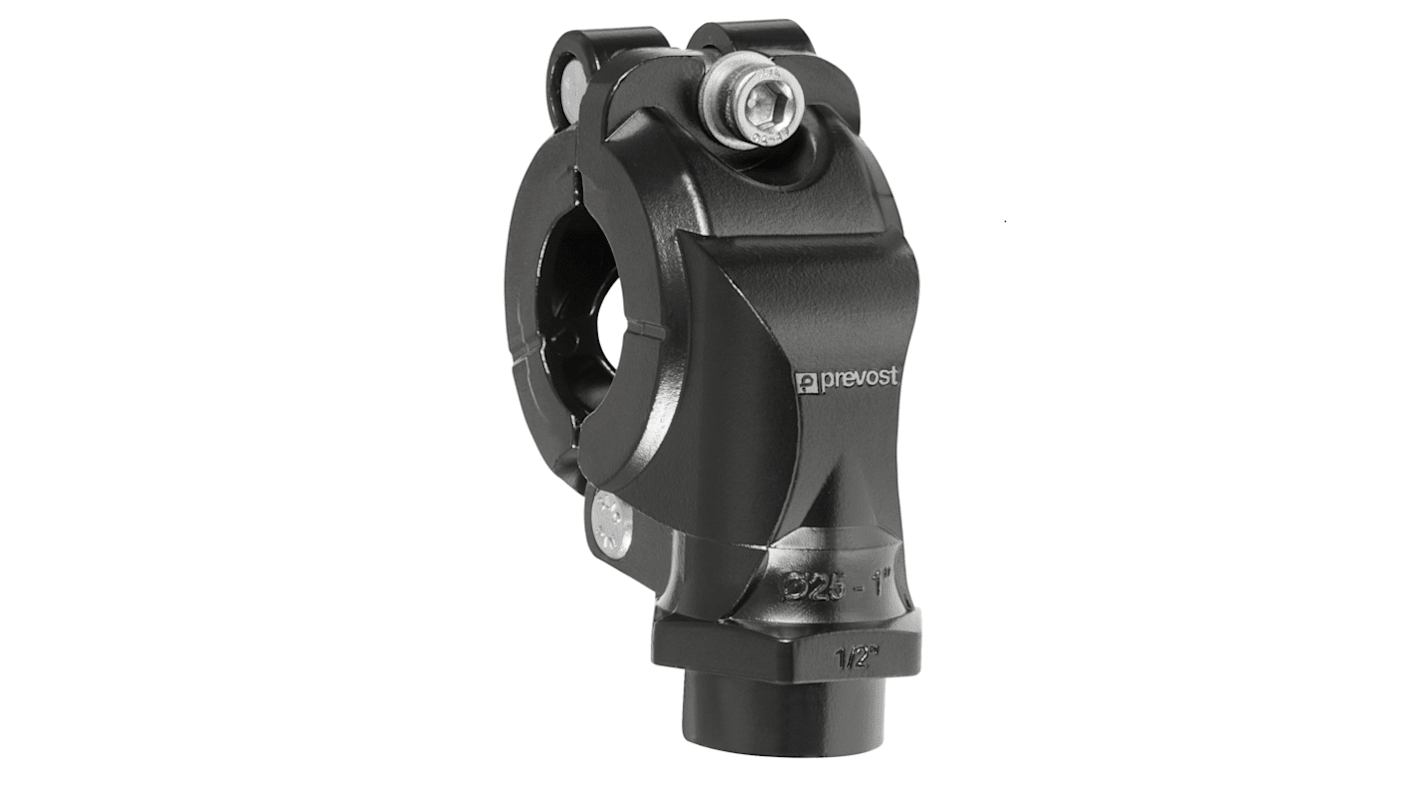

PREVOST 16bar Aluminium G 1/2 Tapping Flange, 40mm outside diameter
- RS Stock No.:
- 219-4509
- Mfr. Part No.:
- PPS1 BT4012
- Brand:
- PREVOST
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£30.14
(exc. VAT)
£36.17
(inc. VAT)
| Units | Per unit |
| 1 + | £30.14 |
- RS Stock No.:
- 219-4509
- Mfr. Part No.:
- PPS1 BT4012
- Brand:
- PREVOST
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
PREVOST PIPING SYSTEM
100 % aluminium
-The PREVOST PIPING SYSTEM compressed air network range is compact, lightweight and corrosive resistant with all aluminium fittings.
The system's installation is quick and easy, then can be pressurized immediately.
-Pipes are firmly held in the fitting using the PPS Grip Concept.
This new concept is based on a stainless steel ring with teeth that penetrate the aluminium. The new contoured and lubricated seal design guarantees a leak free performance.
-The PREVOST PIPING SYSTEM compressed air network range is compact, lightweight and corrosive resistant with all aluminium fittings.
The system's installation is quick and easy, then can be pressurized immediately.
-Pipes are firmly held in the fitting using the PPS Grip Concept.
This new concept is based on a stainless steel ring with teeth that penetrate the aluminium. The new contoured and lubricated seal design guarantees a leak free performance.
Specifications
Attribute | Value |
|---|---|
| Pipe Outside Diameter 2 | 40mm |
| Connection Thread Size | G 1/2 |
| Material | Aluminium |
| Connector Type | THREAD TAPPING FLANGE |
| Maximum Operating Pressure | 16bar |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
- RS Stock No.:
- 219-4509
- Mfr. Part No.:
- PPS1 BT4012
- Brand:
- PREVOST
