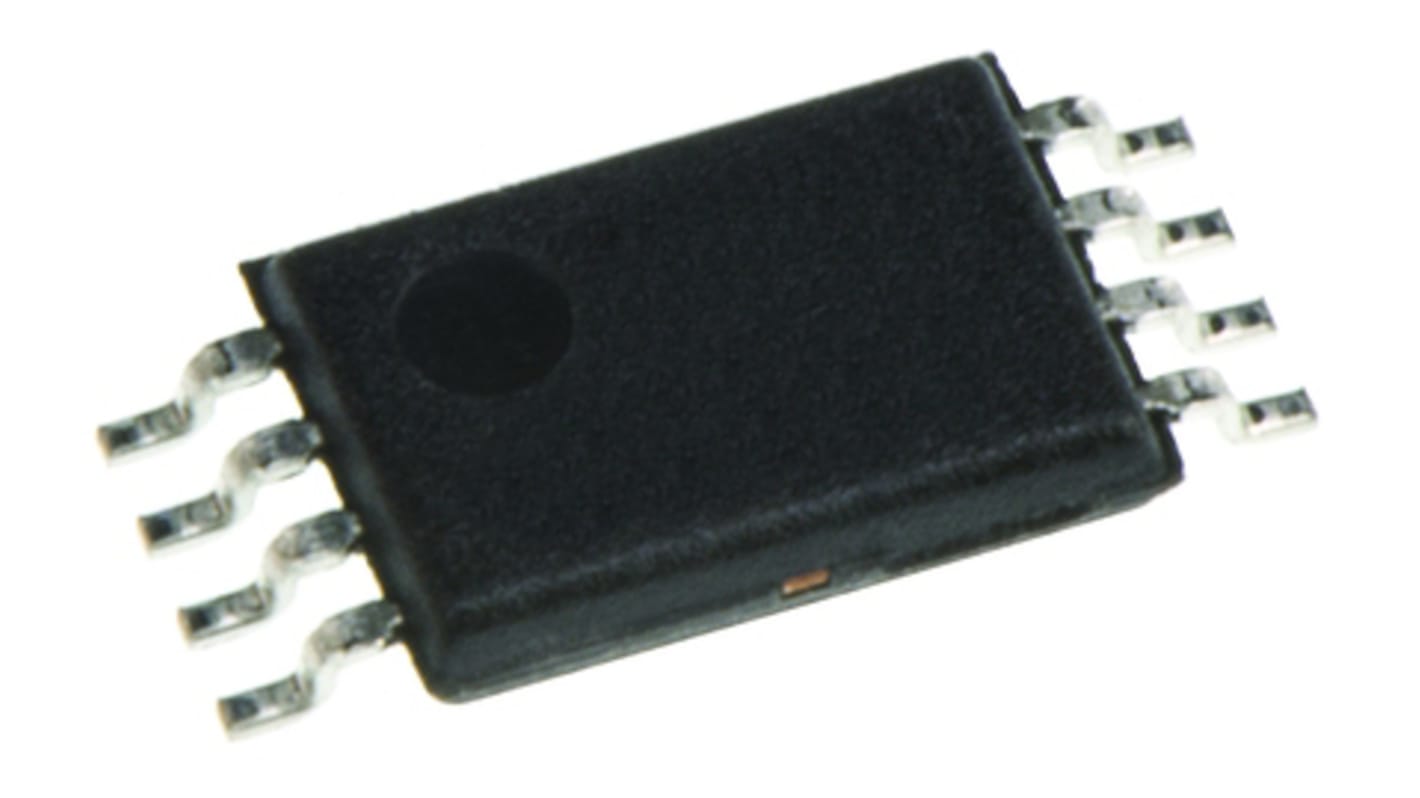

TS393IPT STMicroelectronics, Dual Comparator, CMOS O/P, 2.5μs 2.7 → 16 V 8-Pin TSSOP
- RS Stock No.:
- 880-5500
- Mfr. Part No.:
- TS393IPT
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 880-5500
- Mfr. Part No.:
- TS393IPT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Comparator Type | General Purpose | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Power Supply Type | Dual, Single | |
| Output Type | CMOS | |
| Number of Channels per Chip | 2 | |
| Typical Response Time | 2.5µs | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 2.7 → 16 V | |
| Dimensions | 3.1 x 4.5 x 1.05mm | |
| Length | 3.1mm | |
| Width | 4.5mm | |
| Height | 1.05mm | |
| Typical CMRR | 71dB | |
| Minimum Operating Temperature | -40 °C | |
| Typical Dual Supply Voltage | ±1.35 → ±8V | |
| Typical PSRR | 80dB | |
| Maximum Operating Temperature | +125 °C | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Comparator Type General Purpose | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Power Supply Type Dual, Single | ||
Output Type CMOS | ||
Number of Channels per Chip 2 | ||
Typical Response Time 2.5µs | ||
Pin Count 8 | ||
Typical Single Supply Voltage 2.7 → 16 V | ||
Dimensions 3.1 x 4.5 x 1.05mm | ||
Length 3.1mm | ||
Width 4.5mm | ||
Height 1.05mm | ||
Typical CMRR 71dB | ||
Minimum Operating Temperature -40 °C | ||
Typical Dual Supply Voltage ±1.35 → ±8V | ||
Typical PSRR 80dB | ||
Maximum Operating Temperature +125 °C | ||
Comparators, STMicroelectronics
High-Speed Comparators, with fast response times
Low-Power Comparators with operating currents as low as 210nA
High-Temperature qualified devices
Automotive-grade Comparators are AEC-Q100 and AEC-Q101 qualified
Low-Power Comparators with operating currents as low as 210nA
High-Temperature qualified devices
Automotive-grade Comparators are AEC-Q100 and AEC-Q101 qualified
