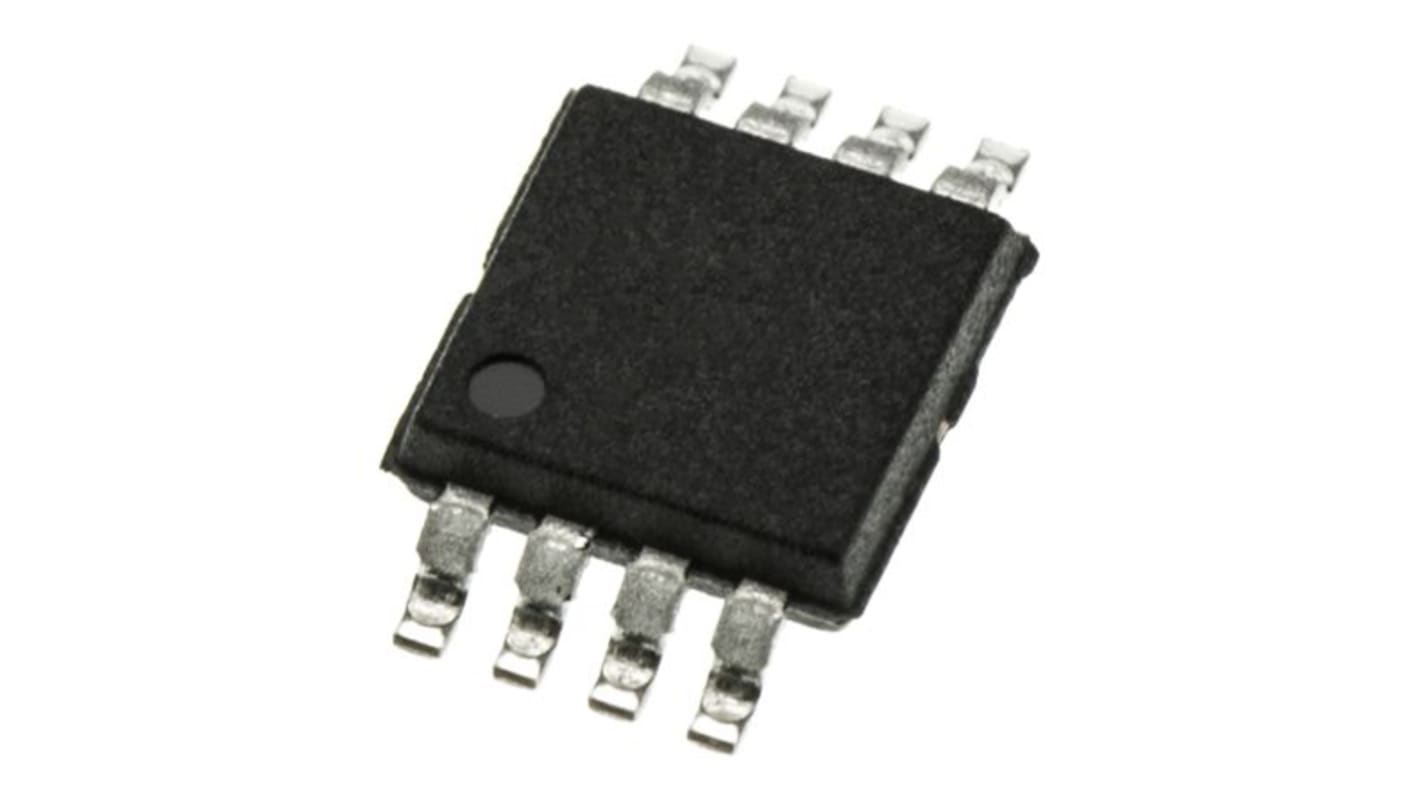

MAX975EUA+ Maxim Integrated, Comparator, Rail to Rail O/P, 2.7 → 5.25 V 8-Pin μMAX
- RS Stock No.:
- 191-5157P
- Mfr. Part No.:
- MAX975EUA+
- Brand:
- Maxim Integrated
Subtotal 5 units (supplied in a tube)*
£11.77
(exc. VAT)
£14.125
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 110 unit(s), ready to ship
Units | Per unit |
|---|---|
| 5 + | £2.354 |
*price indicative
- RS Stock No.:
- 191-5157P
- Mfr. Part No.:
- MAX975EUA+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Comparator Type | Low Power | |
| Mounting Type | Surface Mount | |
| Package Type | μMAX | |
| Power Supply Type | Single | |
| Output Type | Rail to Rail | |
| Number of Channels per Chip | 1 | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 2.7 → 5.25 V | |
| Dimensions | 3.1 x 3.1 x 0.95mm | |
| Length | 3.1mm | |
| Width | 3.1mm | |
| Height | 0.95mm | |
| Typical CMRR | 82dB | |
| Minimum Operating Temperature | -40 °C | |
| Typical PSRR | 90dB | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Comparator Type Low Power | ||
Mounting Type Surface Mount | ||
Package Type μMAX | ||
Power Supply Type Single | ||
Output Type Rail to Rail | ||
Number of Channels per Chip 1 | ||
Pin Count 8 | ||
Typical Single Supply Voltage 2.7 → 5.25 V | ||
Dimensions 3.1 x 3.1 x 0.95mm | ||
Length 3.1mm | ||
Width 3.1mm | ||
Height 0.95mm | ||
Typical CMRR 82dB | ||
Minimum Operating Temperature -40 °C | ||
Typical PSRR 90dB | ||
Maximum Operating Temperature +85 °C | ||
Three Operating Modes:
High Speed
High Speed with Auto-Standby
Low Power
28ns Propagation Delay (high-speed mode)
5μA Max Supply Current in Low-Power/Auto-Standby Modes
+3V/+5V Single-Supply Operation
Rail-to-Rail Outputs
Ground-Sensing Input
Internal Hysteresis (high-speed mode)
Adjustable Timeout Period
μMAX Package (MAX975) QSOP-16 Package (MAX977)
Applications
3V Systems
Battery-Powered Applications
Digital-Line Receivers
IR Receivers
Keyless Entry
RF ID Tags
Threshold Detectors/Discriminators
High Speed
High Speed with Auto-Standby
Low Power
28ns Propagation Delay (high-speed mode)
5μA Max Supply Current in Low-Power/Auto-Standby Modes
+3V/+5V Single-Supply Operation
Rail-to-Rail Outputs
Ground-Sensing Input
Internal Hysteresis (high-speed mode)
Adjustable Timeout Period
μMAX Package (MAX975) QSOP-16 Package (MAX977)
Applications
3V Systems
Battery-Powered Applications
Digital-Line Receivers
IR Receivers
Keyless Entry
RF ID Tags
Threshold Detectors/Discriminators
