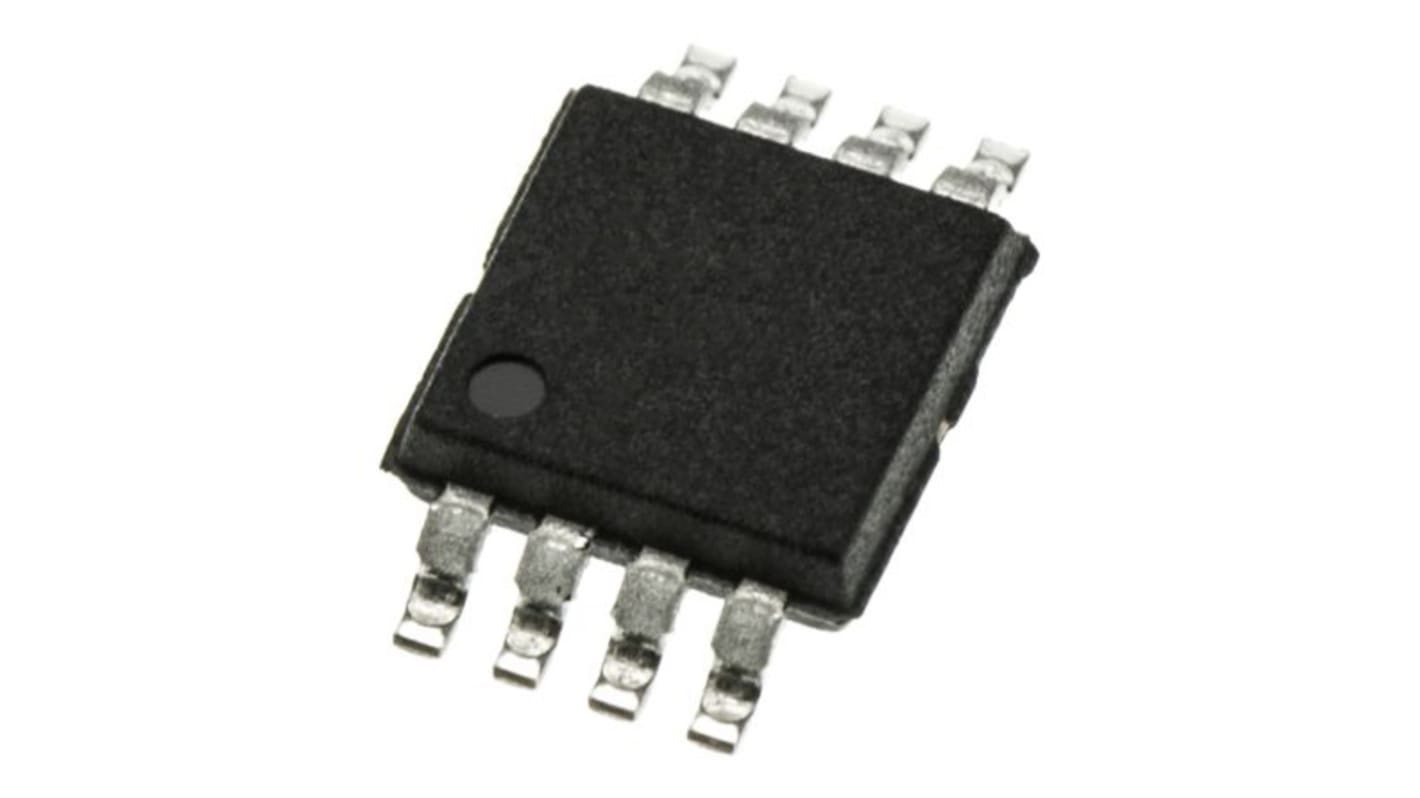

MAX975EUA+ Maxim Integrated, Comparator, Rail to Rail O/P, 2.7 → 5.25 V 8-Pin μMAX

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Three Operating Modes:
High Speed
High Speed with Auto-Standby
Low Power
28ns Propagation Delay (high-speed mode)
5μA Max Supply Current in Low-Power/Auto-Standby Modes
+3V/+5V Single-Supply Operation
Rail-to-Rail Outputs
Ground-Sensing Input
Internal Hysteresis (high-speed mode)
Adjustable Timeout Period
μMAX Package (MAX975) QSOP-16 Package (MAX977)
Applications
3V Systems
Battery-Powered Applications
Digital-Line Receivers
IR Receivers
Keyless Entry
RF ID Tags
Threshold Detectors/Discriminators

Specifications
Attribute Value
Comparator Type High Speed, Low Power
Mounting Type Surface Mount
Package Type μMAX
Power Supply Type Single
Output Type Rail to Rail
Number of Channels per Chip 1
Pin Count 8
Typical Single Supply Voltage 2.7 → 5.25 V
Dimensions 3.1 x 3.1 x 0.95mm
Length 3.1mm
Width 3.1mm
Height 0.95mm
Typical CMRR 82dB
Minimum Operating Temperature -40 °C
Typical PSRR 90dB
Maximum Operating Temperature +85 °C
150 In stock - FREE next working day delivery available
Price Each (In a Tube of 50)
£ 2.617
(exc. VAT)
£ 3.14
(inc. VAT)
Units
Per unit
Per Tube*
50 +
£2.617
£130.85
*price indicative
