STMicroelectronics STM32 Nucleo Starter Pack STM32F7 LoRa Evaluation Kit for LoRa® HF Band Sensor and Gateway 32.768MHz
- RS Stock No.:
- 193-9789
- Mfr. Part No.:
- P-NUCLEO-LRWAN2
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 193-9789
- Mfr. Part No.:
- P-NUCLEO-LRWAN2
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Classification | Expansion Board | |
| RF Technology | LoRa | |
| Kit Classification | Evaluation Kit | |
| For Use With | LoRa® HF Band Sensor and Gateway | |
| Featured Device | STM32F7 | |
| Kit Name | STM32 Nucleo Starter Pack | |
| Frequency | 32.768MHz | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Classification Expansion Board | ||
RF Technology LoRa | ||
Kit Classification Evaluation Kit | ||
For Use With LoRa® HF Band Sensor and Gateway | ||
Featured Device STM32F7 | ||
Kit Name STM32 Nucleo Starter Pack | ||
Frequency 32.768MHz | ||
- COO (Country of Origin):
- CN

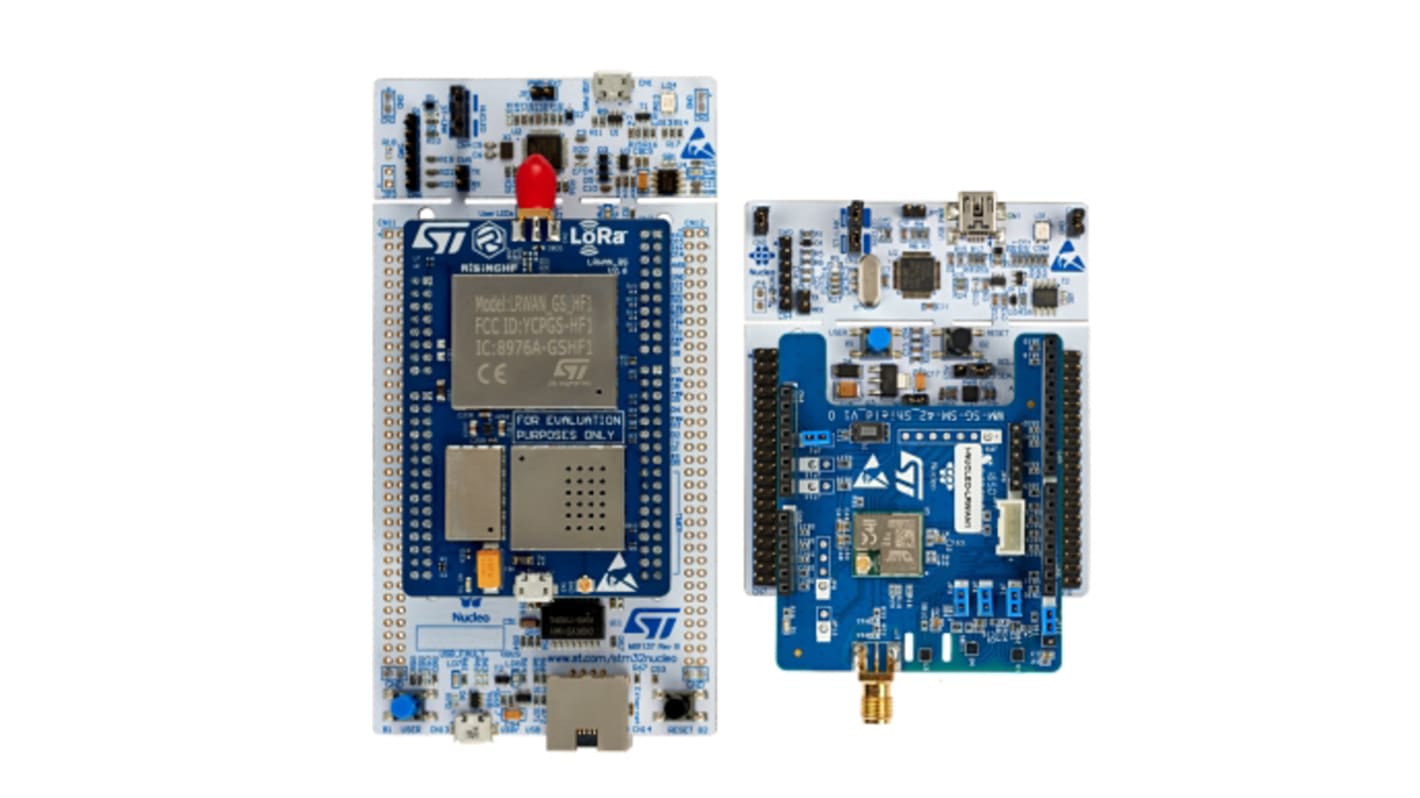

The P-NUCLEO-LRWAN2 STM32 Nucleo starter pack for LoRa® technology and high-performance (G)FSK/OOK/(G)MSK modulations is a development tool to learn and quickly develop low-power wide-area network (LPWAN) solutions. The pack contains both an LPWAN end-node and its related gateway. It is compatible with various LoRaWAN® network server providers. P-NUCLEO-LRWAN2 is intended for countries granting radio-communications access in frequency bands higher than 800 MHz. On the gateway side, the NUCLEO-F746ZG board, based on a high-performance STM32F7 Arm® 32-bit microcontroller, controls a RisingHF ARDUINO® expansion board (LRWAN_GS_HF1) used as a basic LoRaWAN® packet forwarder. In that way, data coming from the development node can reach LoRaWAN® network servers directly. On the sensor-node side, the NUCLEO-L073RZ, based on an ultra-low-power STM32L0 Arm® 32-bit microcontroller, controls a USI® I-NUCLEO-LRWAN1 ARDUINO® expansion board used as a sensor node. The I-NUCLEO-LRWAN1 end-node is an ARDUINO® compatible expansion board.
