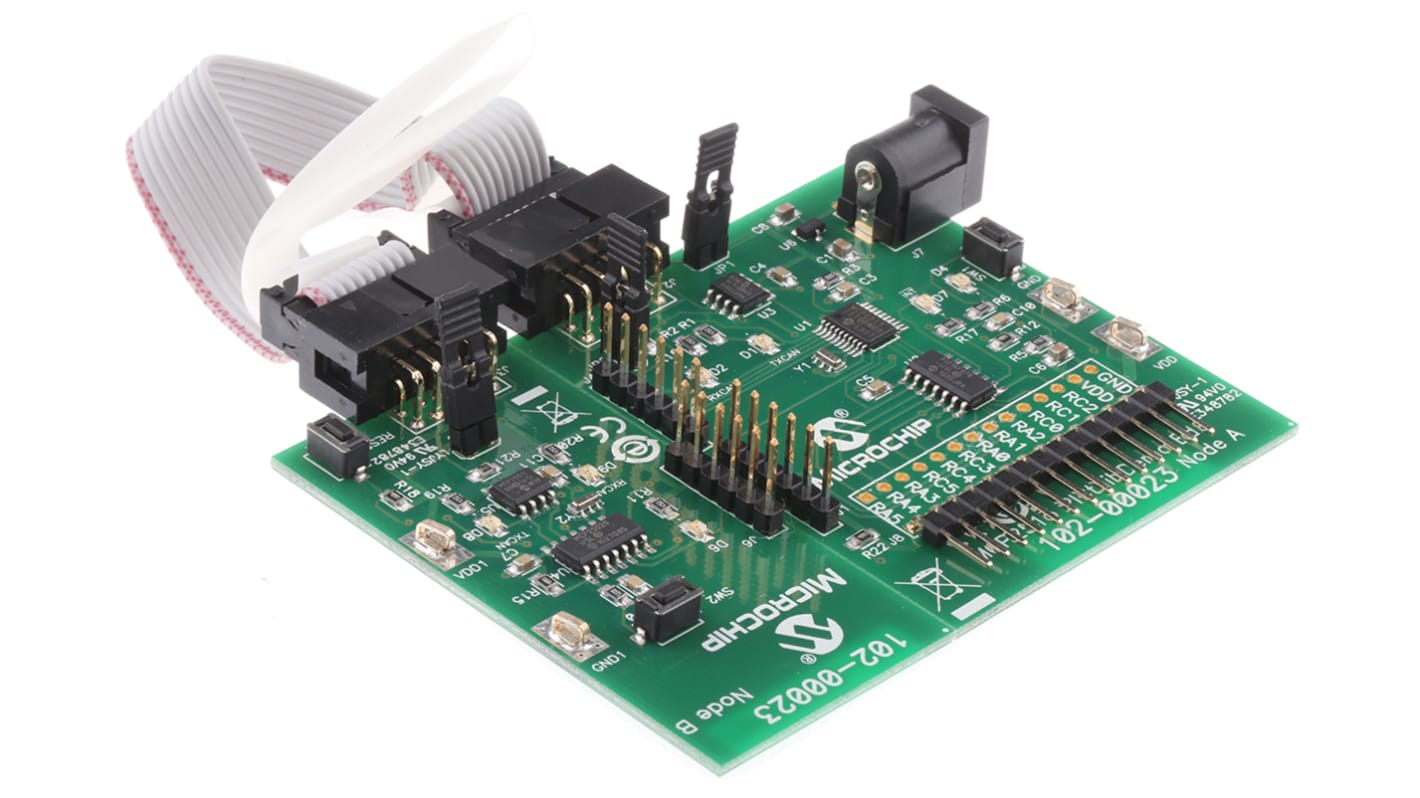

Microchip CAN Controller PICtail MCP2515 Demonstration Board MCP2515DM-PCTL
- RS Stock No.:
- 402-059
- Mfr. Part No.:
- MCP2515DM-PCTL
- Brand:
- Microchip
Discontinued
- RS Stock No.:
- 402-059
- Mfr. Part No.:
- MCP2515DM-PCTL
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Kit Classification | Demonstration Board | |
| Featured Device | MCP2515 | |
| Kit Name | CAN Controller PICtail | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Kit Classification Demonstration Board | ||
Featured Device MCP2515 | ||
Kit Name CAN Controller PICtail | ||
PICtail™ CAN Controller Demo Board
The MCP2515 PICtail™ Demonstration Board implements a simple CAN bus using two nodes. One node uses the MCP2515 stand-alone CAN controller and the other node uses the MCP25020 CAN I/O Expander. Each node utilizes one input (push button) and one output (LED). This boards demonstrates a simple implementation of a CAN bus. The MCP2515 node transmits its input (push button) information at regular intervals and requests input (push button) information from the MCP25020 at regular intervals. An LED on each node reflects the state of the other node's push button.
Node A: MCP2515, PIC16F676 MCU and MCP2551 CAN transceiver
Node B: MCP25020 CAN I/O Expander and MCP2551 CAN transceiver
Two headers on Node A for programming the PIC MCU using the PICkit™ 1 Flash Starter Kit or PICkit™ 2 Programmer
Node B: MCP25020 CAN I/O Expander and MCP2551 CAN transceiver
Two headers on Node A for programming the PIC MCU using the PICkit™ 1 Flash Starter Kit or PICkit™ 2 Programmer
