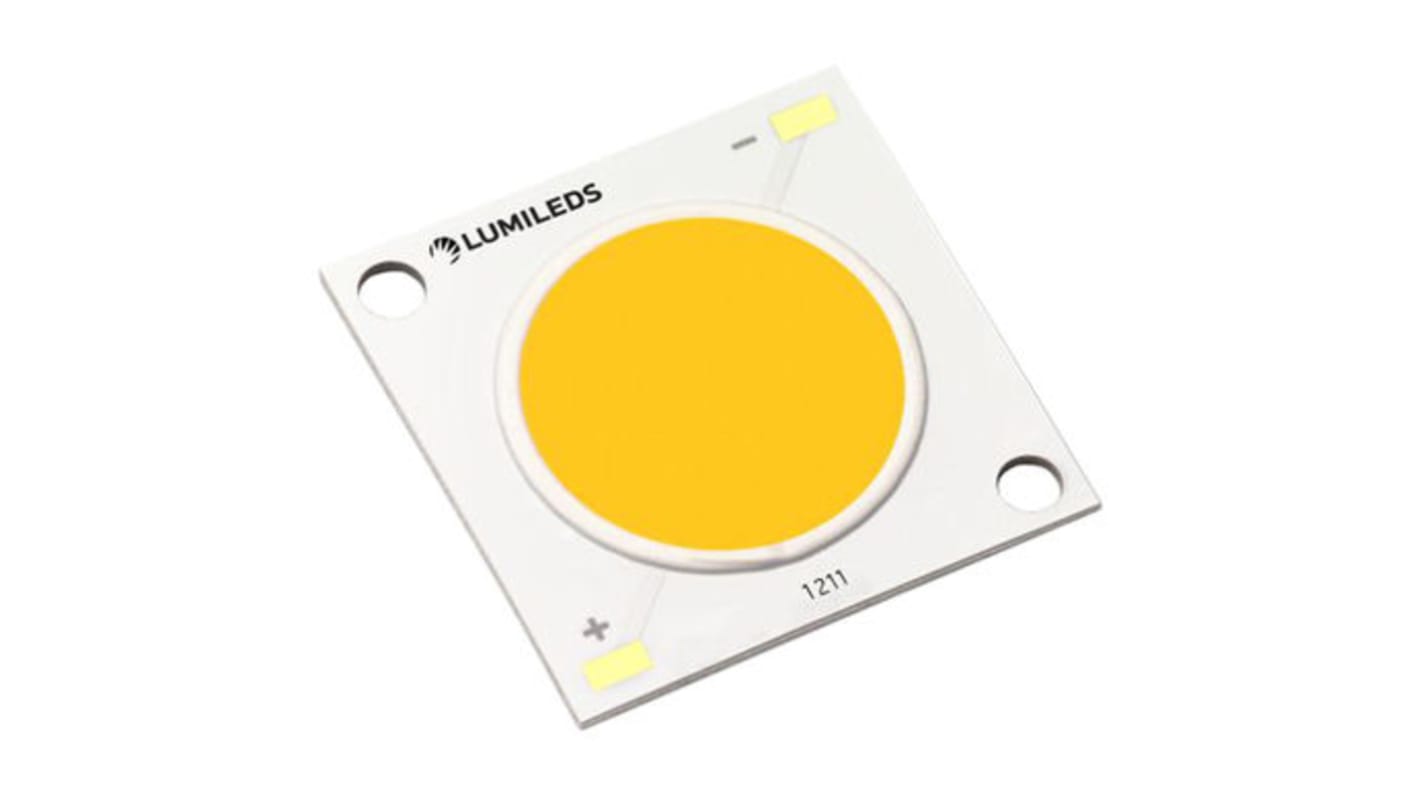

Lumileds L2C5-40701211E1900, LUXEON COB Gen3 White CoB LED, 4000K 70CRI

  • RS Stock No. 111-3591
  • Mfr. Part No. L2C5-40701211E1900
  • Brand Lumileds
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Lumileds LUXEON CoB Gen3 Series LEDs

The LUXEON CoB Core (Gen 3) range from Lumileds is their third generation of LUXEON CoB LEDs. They offer a higher efficiency and lumen output to previous generations. Their efficacies reach more than 150 lm/W (80CRI) and over 160 lm/W (70CRI).
These Chip-on-Board (CoB) LEDs have a small light emitting surface (LES) with a high flux density and uniform light output.
Suitable applications include architectural, downlights, high bay, low bay, outdoor lighting, speciality lighting and spot lights.

Features of the LUXEON CoB Gen 2 LEDs:
Chip-on-Board (COB) LED
Small LES
3-step Macadam ellipse
Uniform light output
High efficacy
Low thermal resistance

CoB LEDs, Lumileds

Specifications
Attribute Value
Typical Luminous Flux 6726 lm
Optical Source Diameter 19mm
Colour Temperature 4000K
Series LUXEON COB Gen3
Viewing Angle 115 °
Colour Rendering 70
LED Colours White
Forward Voltage 34.8 V
Forward Current 2400 (Max.)mA
Dimensions 28 x 28 x 1.5mm
42 In stock for FREE next working day delivery
Price Each
£ 25.41
(exc. VAT)
£ 30.49
(inc. VAT)
Units
Per unit
1 - 4
£25.41
5 - 9
£23.40
10 - 24
£22.44
25 +
£19.61
