Belden Coaxial Cable, 100m, Unterminated
- RS Stock No.:
- 866-1224
- Mfr. Part No.:
- CTF125.01100
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 866-1224
- Mfr. Part No.:
- CTF125.01100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Terminated/Unterminated | Unterminated | |
| Outer Diameter | 7.8mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 32 dB/100m @ 3000 MHz | |
| Length | 100m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Solid | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Number of Strands | 1 | |
| Operating Temperature Range | -40 → +70 °C | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Annealed Copper | |
| Core Strands | 1/1.20 | |
| Capacitance | 54pF/m | |
| Shielding | Copper | |
| Minimum Operating Temperature | -40°C | |
| Insulation Material | LDPE | |
| Velocity ratio | 0.81% | |
Select all | ||
|---|---|---|
Brand Belden | ||
Terminated/Unterminated Unterminated | ||
Outer Diameter 7.8mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 32 dB/100m @ 3000 MHz | ||
Length 100m | ||
Sheath Colour Black | ||
Conductor Strand Type Solid | ||
Sheath Material Polyvinyl Chloride PVC | ||
Number of Strands 1 | ||
Operating Temperature Range -40 → +70 °C | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Annealed Copper | ||
Core Strands 1/1.20 | ||
Capacitance 54pF/m | ||
Shielding Copper | ||
Minimum Operating Temperature -40°C | ||
Insulation Material LDPE | ||
Velocity ratio 0.81% | ||
- COO (Country of Origin):
- NL

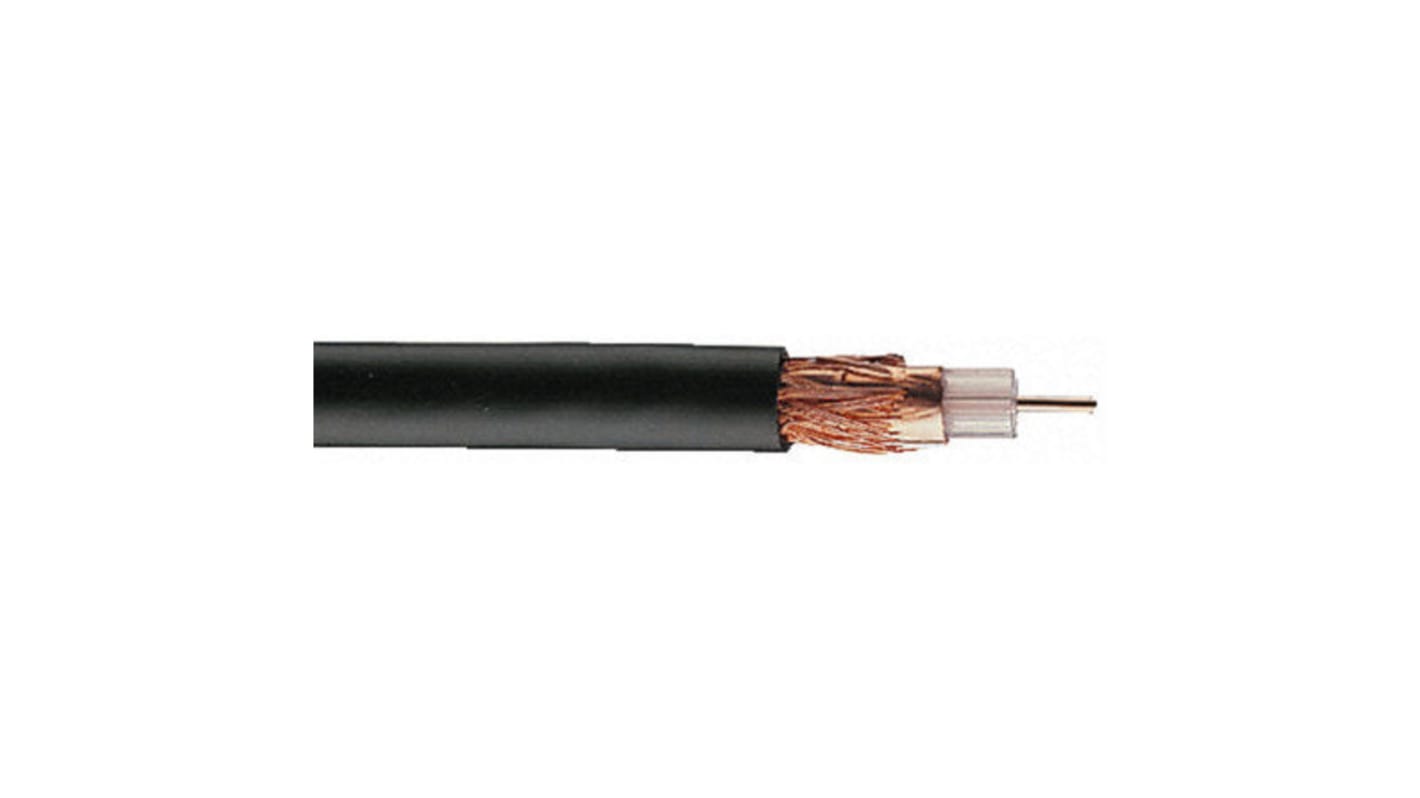

CTF125 Cable
·1 / 1.25mm high conductivity copper conductor
·Gas injected foamed PE dielectric
·High conductivity polyester and copper foil with braided screen
·Black PVC outer sheath
·Suitable as a riser or backbone cable
·Gas injected foamed PE dielectric
·High conductivity polyester and copper foil with braided screen
·Black PVC outer sheath
·Suitable as a riser or backbone cable
Standards
EN50117-2-1 and EN50117-2-4
Standards
BS EN50117
CT Digital Coax
The 'CT' range of broadband low loss coaxial cable meets the European standard BS EN50117. Designed to offer ideal electrical parameters for the reception of digital TV either via satellite or terrestrial transmissions. Recommended for use in installation for the reception of both Sky & other digital/analogue TV providers. In addition these cables may be suitable for use in video transmission & camera control applications in CCTV systems.
