RS PRO, 100m, RG59B/U Coaxial, Unterminated75 Ω
- RS Stock No.:
- 665-5889
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 665-5889
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG59B/U | |
| Outer Diameter | 6.1mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 11 dB/100m @ 100MHz, 15.9 dB/100m @ 200MHz, 23.1 dB/100m @ 400MHz, 34.2 dB/100m @ 800MHz, 38.9 dB/100m @ 1GHz, 7.7 dB/100m @ 50MHz | |
| Length | 100m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Solid | |
| Shielding | Copper Braid | |
| Insulation Material | PE | |
| Velocity ratio | 66% | |
| Sheath Material | Low Smoke & Fume LSF | |
| Number of Strands | 1 | |
| Maximum Operating Temperature | +80°C | |
| Size of Strands | 0.58 mm | |
| Conductor Material | Copper Clad Steel | |
| Core Strands | 1/0.58 | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +80 °C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG59B/U | ||
Outer Diameter 6.1mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 11 dB/100m @ 100MHz, 15.9 dB/100m @ 200MHz, 23.1 dB/100m @ 400MHz, 34.2 dB/100m @ 800MHz, 38.9 dB/100m @ 1GHz, 7.7 dB/100m @ 50MHz | ||
Length 100m | ||
Sheath Colour Black | ||
Conductor Strand Type Solid | ||
Shielding Copper Braid | ||
Insulation Material PE | ||
Velocity ratio 66% | ||
Sheath Material Low Smoke & Fume LSF | ||
Number of Strands 1 | ||
Maximum Operating Temperature +80°C | ||
Size of Strands 0.58 mm | ||
Conductor Material Copper Clad Steel | ||
Core Strands 1/0.58 | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +80 °C | ||
- COO (Country of Origin):
- CN

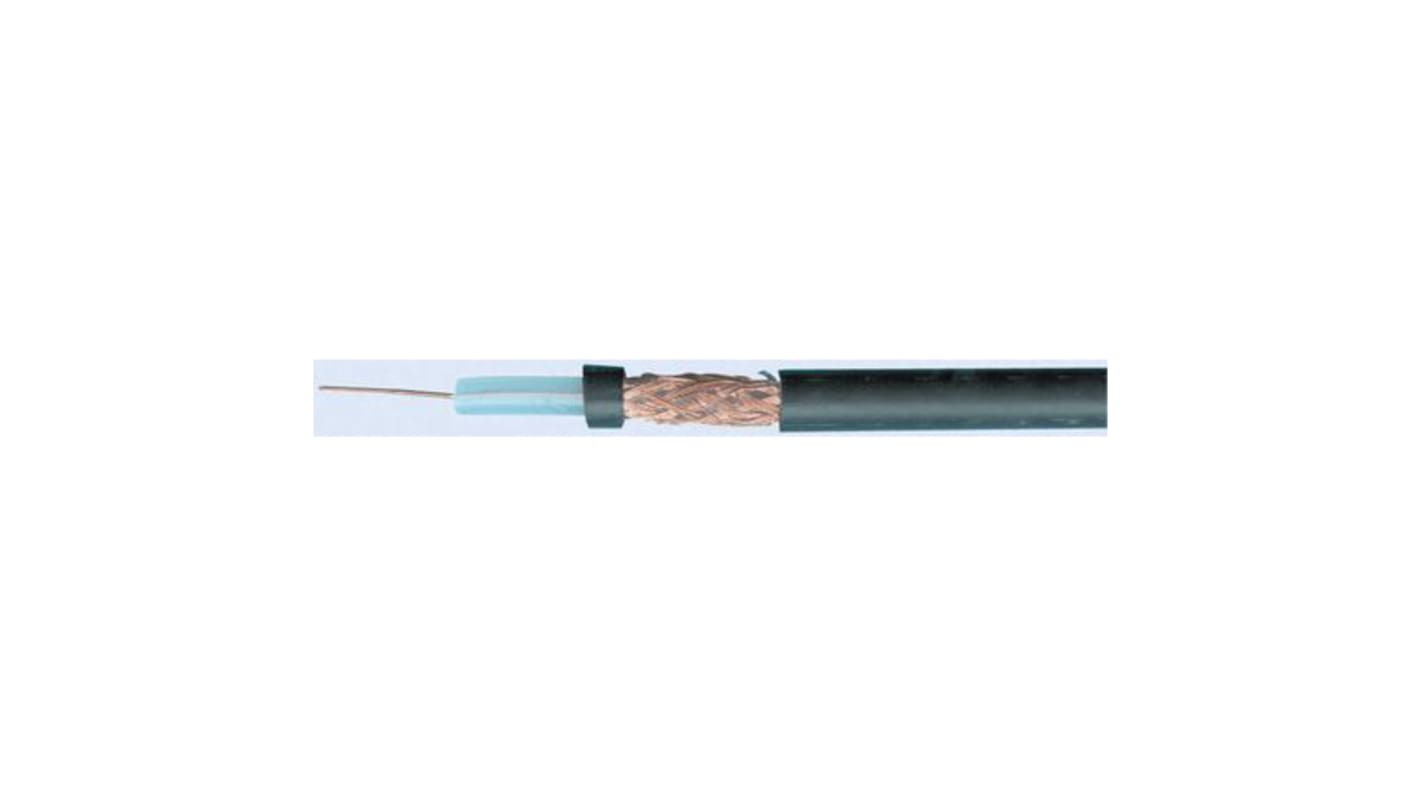

RS PRO Black Unterminated to Unterminated Coaxial Cable
From RS PRO, comes a range of high quality unterminated to unterminated coaxial cables. Constructed out of industry-standard components, this flexible cable has been designed so that the user can attach connection points on each end.
Coaxial type cables are designed to carry signals over long distances and are easy to install.
Coaxial type cables are designed to carry signals over long distances and are easy to install.
Features and benefits
- Reel length of 50m
- Strong black PVC jacket
- Impedance of 75 ohms
- Diameter of 6.1mm
- Bare copper braiding
- Copper Clad Steel conductor
Applications
Coaxial cables are commonly used by electricians and IT personnel and have a range of application use such as;
- Connecting radio transmitters and receivers with their antennas
- Computer network (Internet) connections
- Feeding satellite signals through to your TV.
What is Impedance?
Impedance is an electric current’s opposition being measured when the voltage has been applied.
