RS PRO, 100m, RG316/U Coaxial, Unterminated50 Ω
- RS Stock No.:
- 665-5877
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£353.63
(exc. VAT)
£424.36
(inc. VAT)
- RS Stock No.:
- 665-5877
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG316/U | |
| Outer Diameter | 2.5mm | |
| Characteristic Impedance | 50 Ω | |
| Attenuation | 160.86 dB/100m @ 3GHz, 27.51 dB/100m @ 100MHz, 55.76 dB/100m @ 400MHz, 89.88 dB/100m @ 1GHz | |
| Length | 100m | |
| Sheath Colour | Brown | |
| Conductor Strand Type | Stranded | |
| Sheath Material | FEP | |
| Minimum Operating Temperature | -55°C | |
| Velocity ratio | 70% | |
| Insulation Material | PTFE | |
| Number of Strands | 7 | |
| Operating Temperature Range | -55 → +200 °C | |
| Maximum Operating Temperature | +200°C | |
| Shielding | Silver Plated Copper Braid | |
| Conductor Material | Silver Plated Copper Clad Steel | |
| Core Strands | 7/0.17 | |
| Size of Strands | 0.17 mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG316/U | ||
Outer Diameter 2.5mm | ||
Characteristic Impedance 50 Ω | ||
Attenuation 160.86 dB/100m @ 3GHz, 27.51 dB/100m @ 100MHz, 55.76 dB/100m @ 400MHz, 89.88 dB/100m @ 1GHz | ||
Length 100m | ||
Sheath Colour Brown | ||
Conductor Strand Type Stranded | ||
Sheath Material FEP | ||
Minimum Operating Temperature -55°C | ||
Velocity ratio 70% | ||
Insulation Material PTFE | ||
Number of Strands 7 | ||
Operating Temperature Range -55 → +200 °C | ||
Maximum Operating Temperature +200°C | ||
Shielding Silver Plated Copper Braid | ||
Conductor Material Silver Plated Copper Clad Steel | ||
Core Strands 7/0.17 | ||
Size of Strands 0.17 mm | ||
- COO (Country of Origin):
- CN

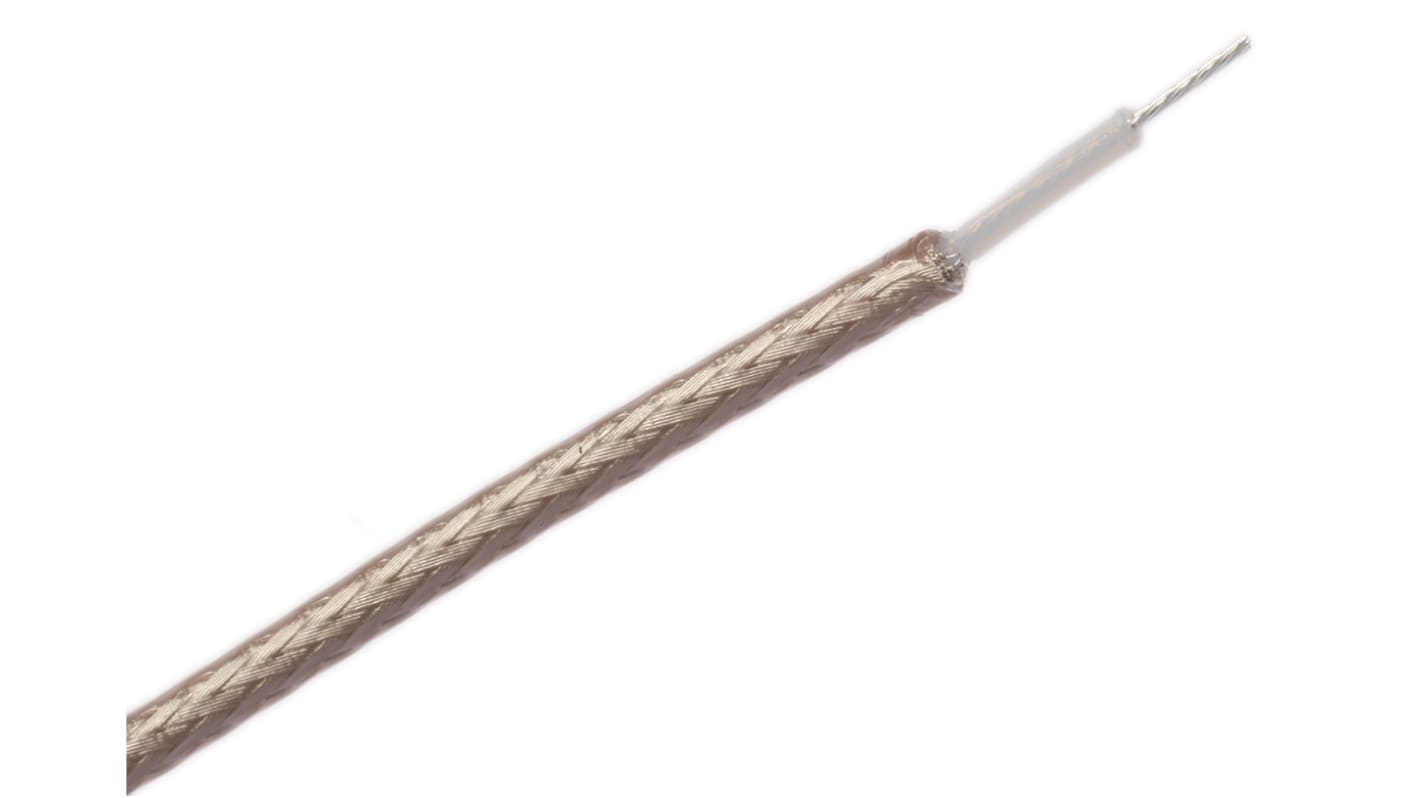

RS PRO brown unterminated to unterminated coaxial cable
From the trusted brand RS PRO, comes a high quality RG316/U unterminated to unterminated coaxial cable. Constructed out of industry-standard components, this flexible cable has been designed so that the user can attach connection points on each end.
Coaxial type cables are designed to carry signals over long distances and are easy to install.
Coaxial type cables are designed to carry signals over long distances and are easy to install.
Features and benefits
- Length of 100m
- Strong brown PVC jacket
- Silver plated copper braiding
- Impedance of 50 ohms
- Diameter of 2.5mm
Applications
RG316/U Coaxial cables are commonly used by electricians and IT personnel and have a range of application use such as;
- Connecting radio transmitters and receivers with their antennas
- Computer network (Internet) connections
- Feeding satellite signals through to your TV.
What is Impedance?
Impedance is an electric current’s opposition being measured when the voltage has been applied.
