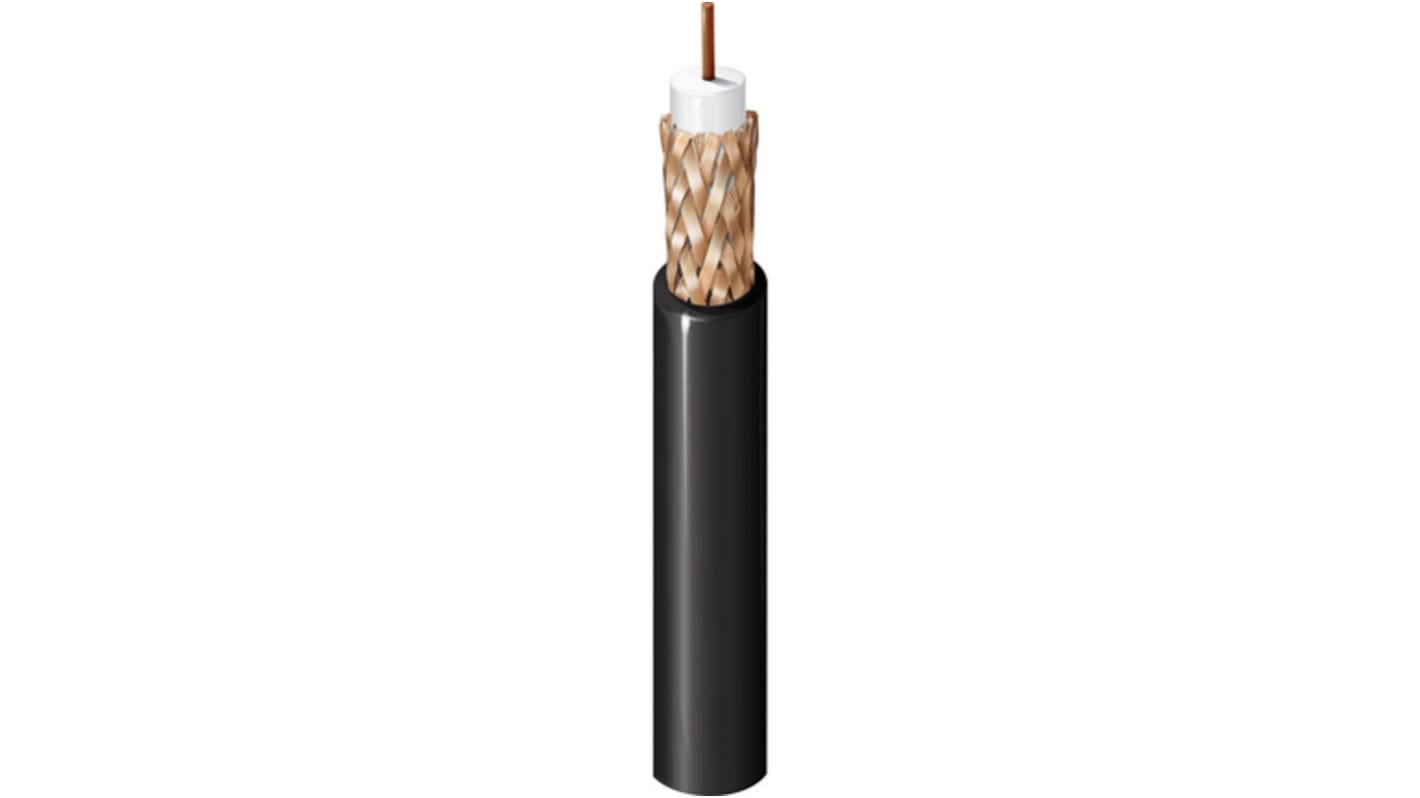

Belden Coaxial Cable, 100m, RG59 Coaxial, Unterminated
- RS Stock No.:
- 521-8076
- Mfr. Part No.:
- MRG5903.10100
- Brand:
- Belden
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 521-8076
- Mfr. Part No.:
- MRG5903.10100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG59 | |
| Outer Diameter | 4.15mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 23 dB/100m @ 400MHz, 31.8 dB/100m @ 700MHz, 36.4 dB/100m @ 900MHz, 39.4 dB/100m @ 1GHz | |
| Length | 100m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Solid | |
| Conductor Material | Bare Copper Clad Steel | |
| Size of Strands | 23 AWG | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85 °C | |
| Core Strands | 1/23 | |
| Number of Strands | 1 | |
| Minimum Operating Temperature | -40°C | |
| Velocity ratio | 66% | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Insulation Material | PE | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG59 | ||
Outer Diameter 4.15mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 23 dB/100m @ 400MHz, 31.8 dB/100m @ 700MHz, 36.4 dB/100m @ 900MHz, 39.4 dB/100m @ 1GHz | ||
Length 100m | ||
Sheath Colour Black | ||
Conductor Strand Type Solid | ||
Conductor Material Bare Copper Clad Steel | ||
Size of Strands 23 AWG | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85 °C | ||
Core Strands 1/23 | ||
Number of Strands 1 | ||
Minimum Operating Temperature -40°C | ||
Velocity ratio 66% | ||
Sheath Material Polyvinyl Chloride PVC | ||
Insulation Material PE | ||
- COO (Country of Origin):
- NL
Belden MRG5902 Series SDI Coaxial Cable, 6.15mm Outer Diameter, 75 Ω Characteristic Impedance - MRG5902.00500
This SDI Coaxial Cable is an effective solution for standard analogue video applications. Constructed with RG59 type coaxial technology, it features an outer diameter of 6.15mm and is 500m in length, ensuring ample reach for a variety of installations. With its solid bare copper clad steel conductor and low smoke zero halogen jacket, this cable provides both reliability and safety in demanding environments.
Features & Benefits
• 75 Ω characteristic impedance for optimal signal integrity
• Low smoke zero halogen construction reduces toxic emissions
• High-performance coaxial design minimises signal attenuation
• Bare copper braid shielding ensures excellent interference protection
• Extensive operational temperature range from -30°C to +70°C
• PE insulation offers enhanced durability and flexibility
• Low smoke zero halogen construction reduces toxic emissions
• High-performance coaxial design minimises signal attenuation
• Bare copper braid shielding ensures excellent interference protection
• Extensive operational temperature range from -30°C to +70°C
• PE insulation offers enhanced durability and flexibility
Applications
• Designed for seamless SDI video transmission
• Utilised in broadcast and professional video environments
• Suitable for indoor installations requiring low smoke emissions
• Employed in automation and electronics setups
• Perfect for commercial video conferencing systems
• Utilised in broadcast and professional video environments
• Suitable for indoor installations requiring low smoke emissions
• Employed in automation and electronics setups
• Perfect for commercial video conferencing systems
What is the maximum allowable attenuation of this cable during video transmission?
The maximum attenuation is specified at 2.9 dB per 100m at 5 MHz, with varying values at higher frequencies, ensuring reliable signal performance over extended distances.
How does the cable's construction impact its performance for video applications?
The use of a solid bare copper clad steel conductor and a bare copper braid shield enhances both conductivity and reduces interference, making it suitable for high-quality video transmission.
What safety standards does this cable meet for indoor use?
It complies with Euroclass Eca for fire safety, ensuring that it is appropriate for indoor environments without contributing to fire hazards.
What are the intricacies of the cable's bending radius during installation?
The minimum bending radius for stationary applications is 35mm, allowing flexibility while maintaining the integrity of the cable.
How does the cable perform under various temperature conditions?
It is engineered to operate efficiently within a temperature range of -30°C to +70°C, making it suitable for diverse application environments.
